Zybio Z3 - 5.5 Fluidic Operation Sequences

38
5.5 Introduction to Sequences
5.5.1 Fluidic diagram

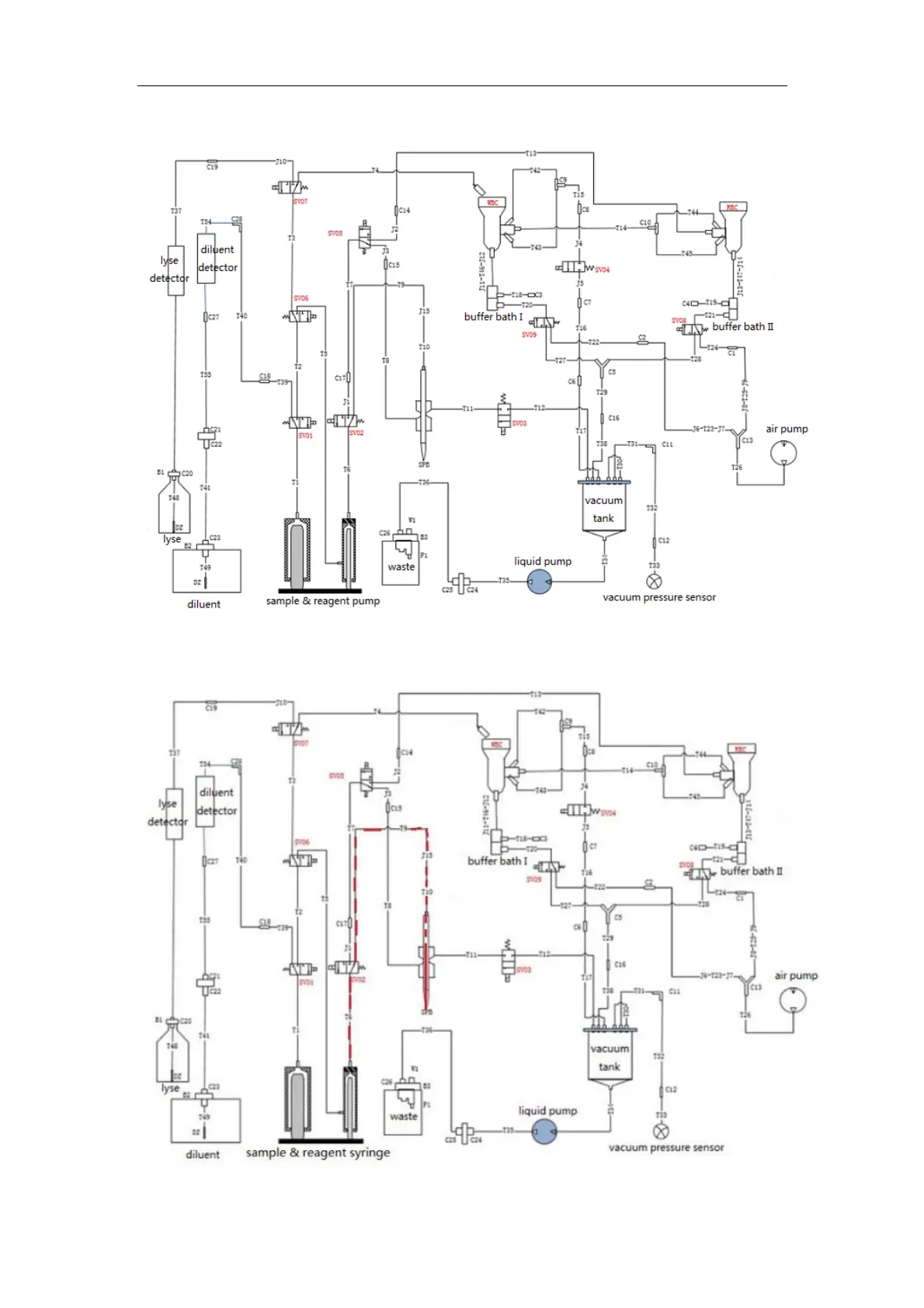

Fig. 5-3 Fluidic diagram
5.5.2 Sample Aspiration
Sample and reagent syringe aspirates sample into instrument cooperating with SV2.
Fig. 5-4 Sample Aspiration
