Zybio Z3 Service Manual

71

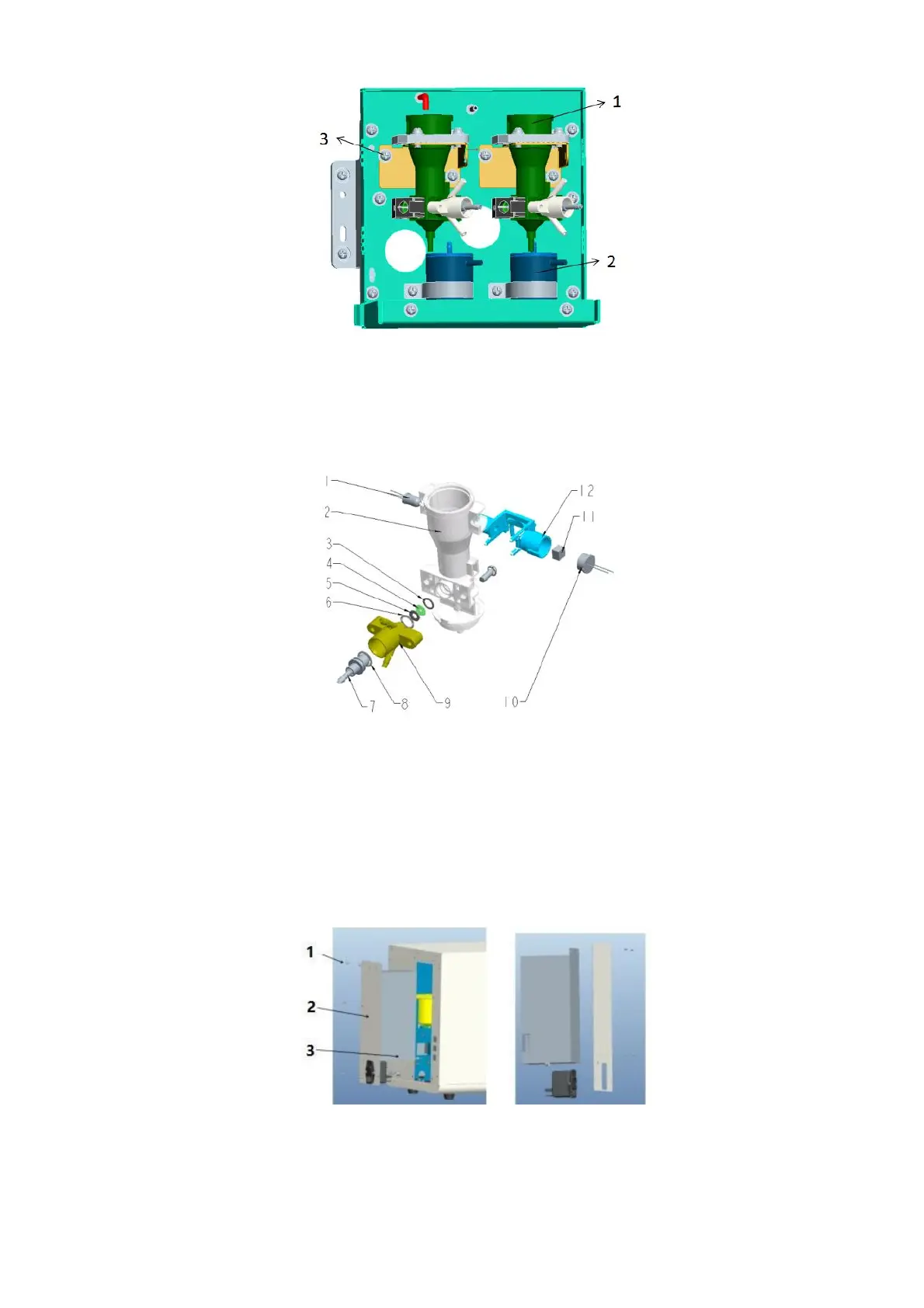

Figure 7-10 Cell counting assembly
1 --- RBC chamber 2 --- Isolation chamber
3 --- Screw for WBC chamber fixing
7.2.5 WBC chamber assembly
Figure 7-11 WBC chamber assembly
1 --- LED lamp 2 --- Front bath
3 --- Aperture O ring 4 --- Aperture
5 --- Aperture washer 6 --- Aperture O ring
7 --- Back bath electrode 8 --- O ring
9 --- Back bath 10 --- Optical sensor
11 --- Sensor fixer 12 --- HGB bracket
7.2.6 Power supply assembly
Figure 7-12 Power supply assembly
1 --- Fixing screws 2 --- Power supply fixing board
3 --- Power supply assembly
