Zybio Z3 - Valve Assembly; Syringe Assembly; Front Cover Assembly

73

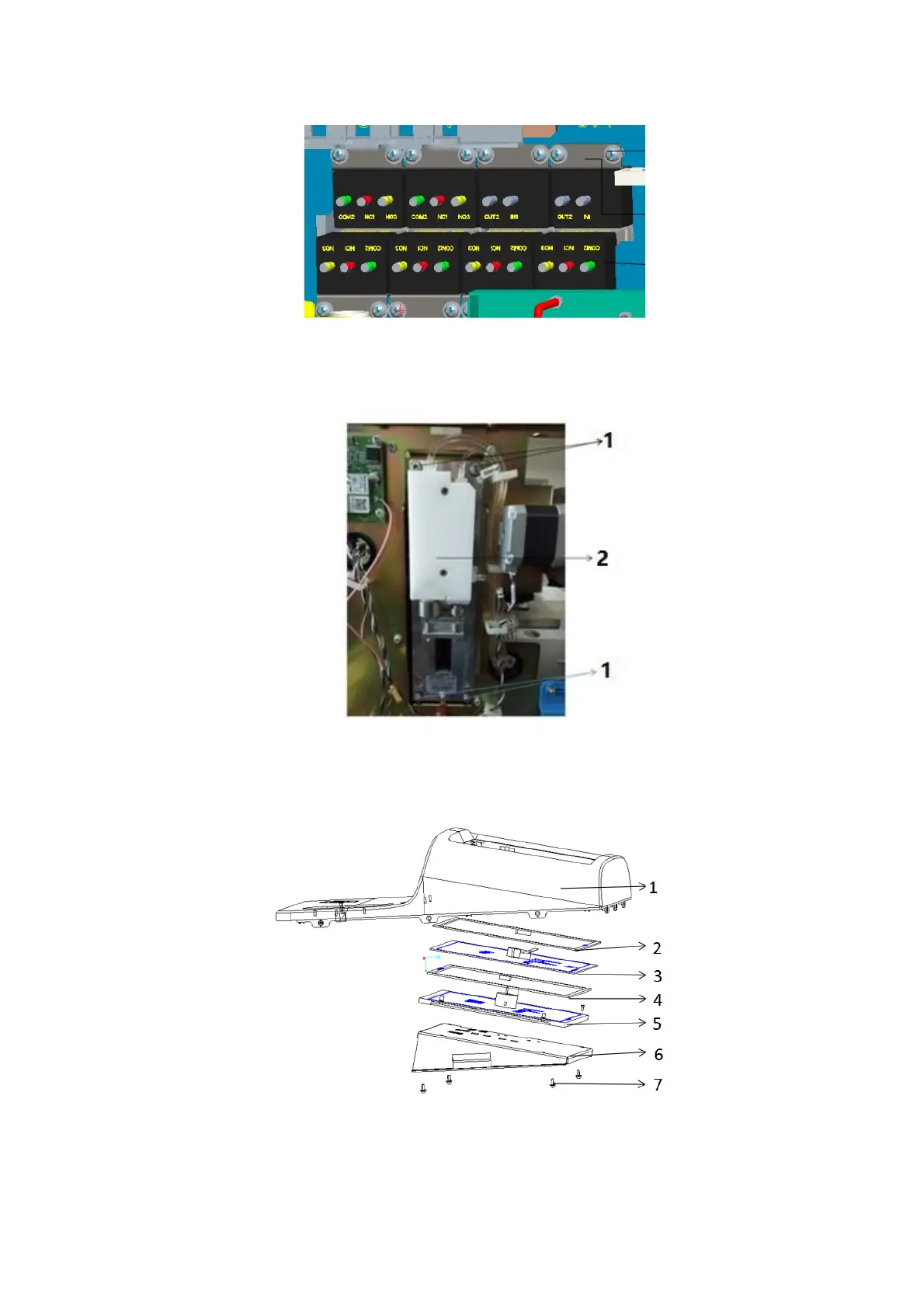

7.2.10 Valve assembly
Figure 7-16 Valve assembly
7.2.11 Syringe assembly
Figure 7-17 Syringe assembly
7.2.12 Front cover assembly
Figure 7-18 front cover assembly
1 --- Front cover 2 --- Touch panel rubber blanket
3 --- Touch panel 4 --- Screen EVA blanket
5 --- LCD screen 6 --- LCD bracket
7 --- Fixing screws
