Zybio Z3 - Back of the Analyzer; Left Side of the Analyzer

67
7.1.3 Back of the analyzer

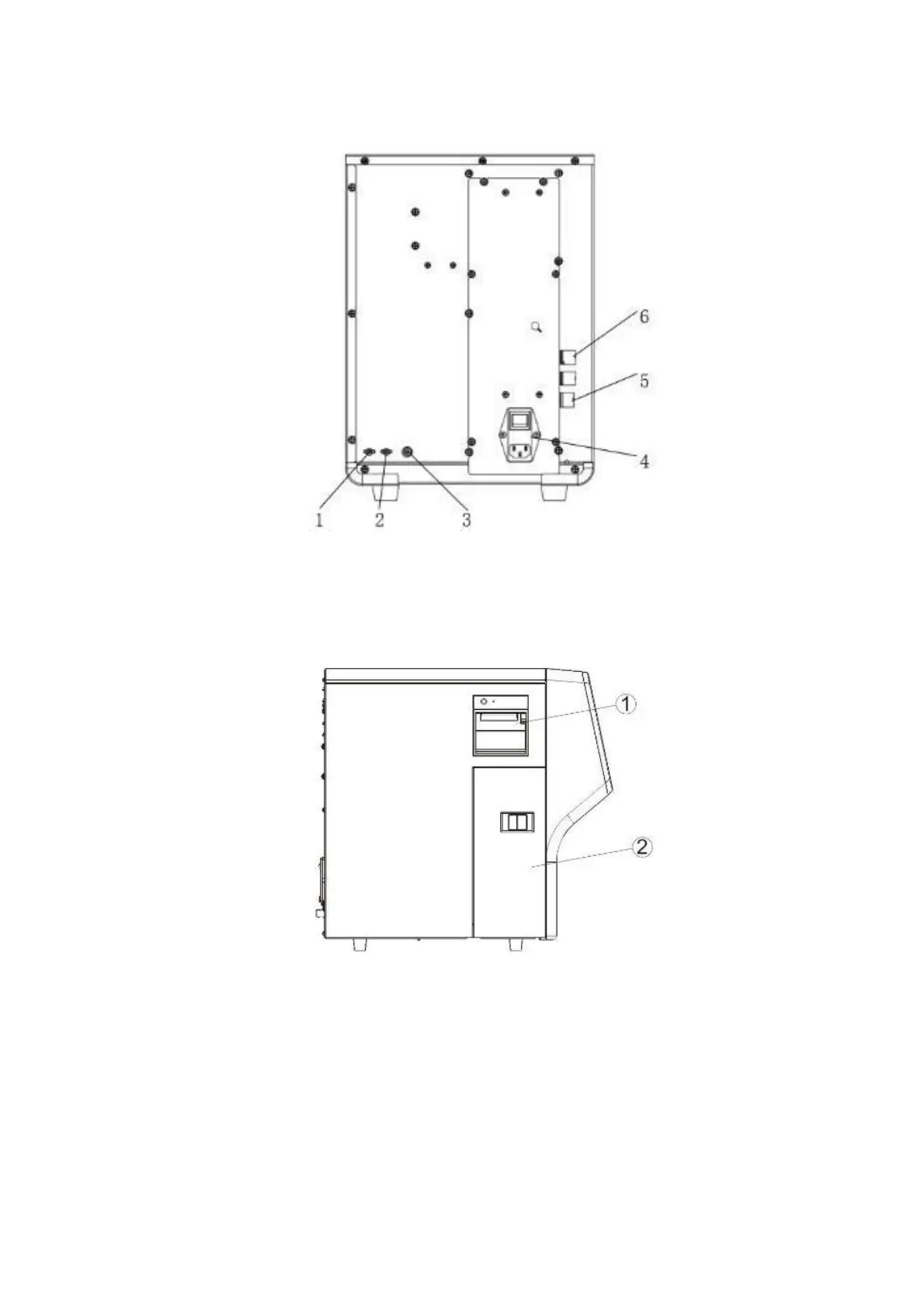

Figure 7-3 Back of the analyzer
1 ---- Diluent inlet 2 ---- Waste outlet
3 ---- Waste sensor connector 4 ---- Power input socket
5 ---- Network interface 6 ---- USB interface
7.1.4 Left Side of the Analyzer
Figure 7-4 Left side of the analyzer
1 ---- Recorder 2 ---- Side door
