Zybio Z3 Service Manual

69
7.2 Overview of Assemblies
7.2.1 Introduction
This section displays the explosive views of various assemblies of the analyzer, so our service
people may find the component quickly to remove or replace them.
 The material IDs listed in the BOM shall only be used by service people to find the material
numbers of maintenance spare parts. Provide the material ID when purchasing any
maintenance spare part.
7.2.2 Whole Device Explosive view

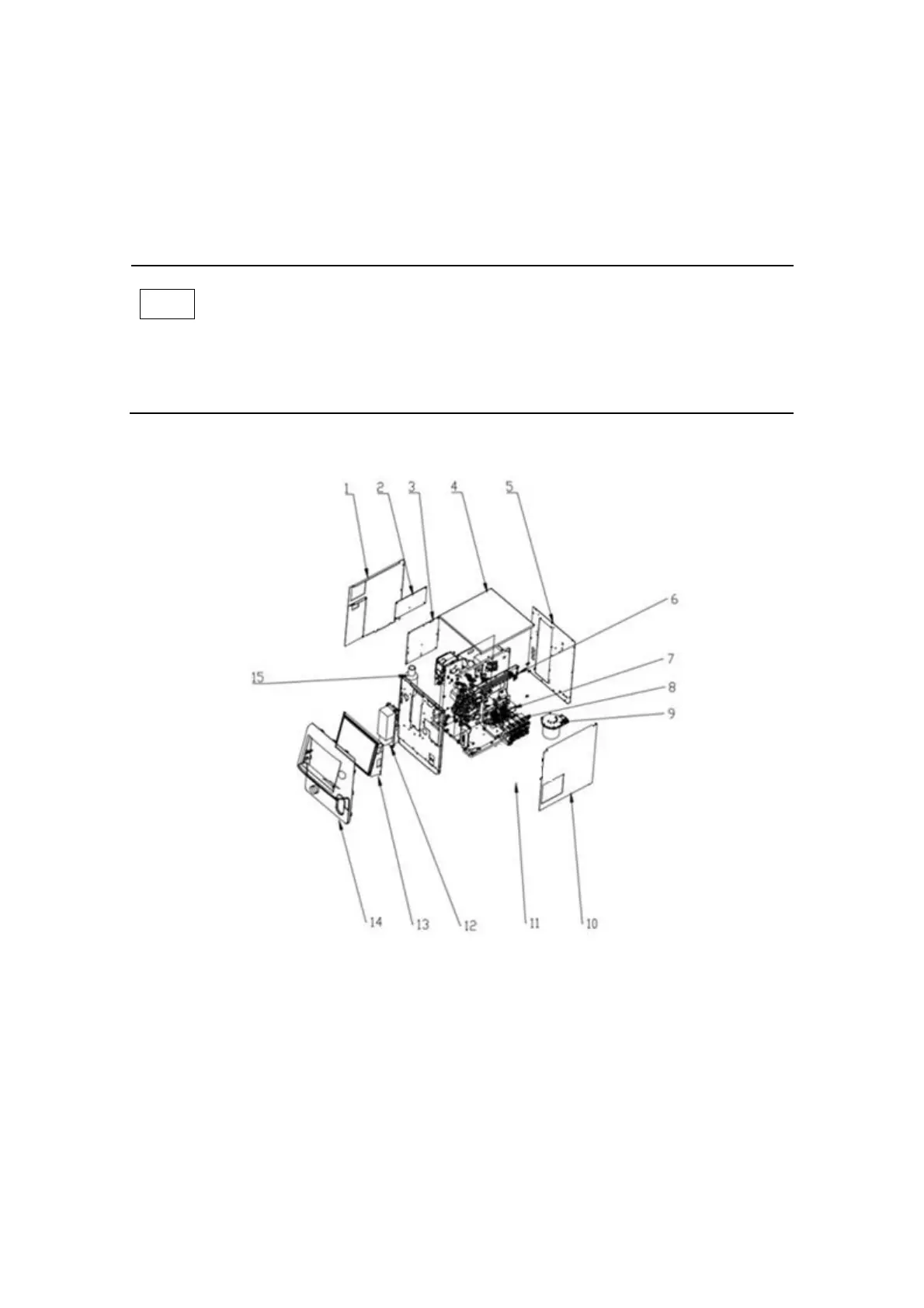

Figure 7-7 Whole Device Explosive view
1 --- Left side door 2 --- Motor drive board
3 --- Main control board 4 --- Up board
5 --- Back board 6--- Sampling system
7 --- Cell counting assembly 8 --- Valve assembly
9 --- Vacuum tank assembly 10 --- Right side door
11 --- Reserved 12 --- Syringe assembly
13 --- LCD assembly 14 --- Front cover assembly
15 --- Lyse bottle
NOTE
