Chapter 29 Configuration: QoS
GS1900 Series User’s Guide
196
29.3 Trust Mode
29.3.1 The G lo ba l Sc re e n
Use this screen to view the G lob a l settings. Click Co nfigura tio n > Q oS > Trust Mo de > G lo ba l to open this
screen.

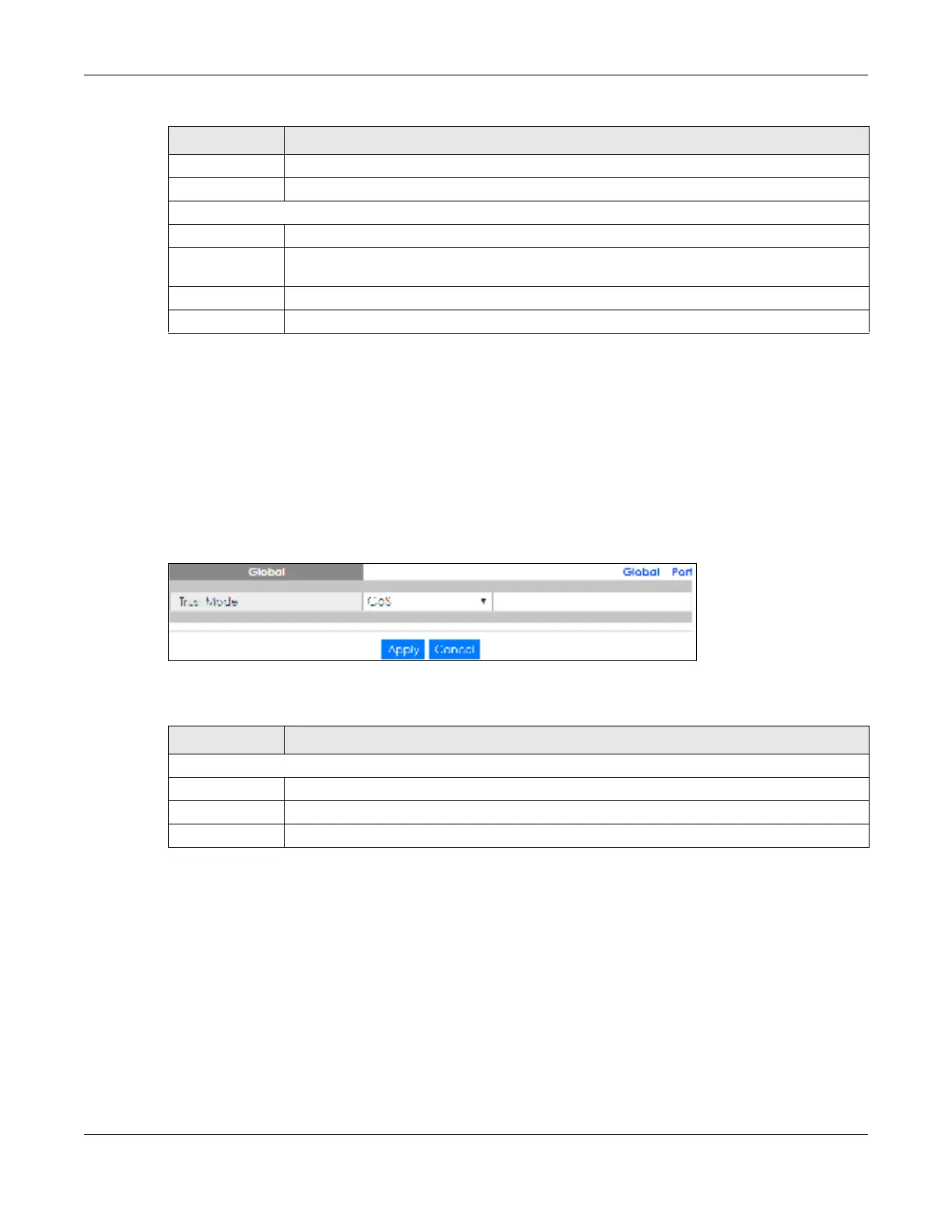

Fig ure 194 Configuration > QoS > Trust Mode > Global
The following table describes the labels in this screen.
29.3.2 The Po rt Sc re e n
Use this screen to view the Po rt settings. Click C o nfig ura tio n > Q o S > Trust Mo de > Port to open this
screen.
IP Precedence Displays a listing of IP Precedence, range: 0 – 7.
Queue ID (0–7) Click the drop-down menu to map an IP Precedence designation to a specific Queue ID (0 – 7).
Queue to IP Precedence Mapping
Queue ID Displays a listing of Queue ID, range: 0 – 7.
IP Precedence
(0–7)
Click the drop-down menu to map a Queue ID to a specific IP precedence.
Apply Click A pp ly to save the changes.
Cancel Click C a nc e l to discard the changes.
Table 140 Configuration > QoS > General > IP Precedence Mapping (continued)
LABEL DESCRIPTIO N
Table 141 Configuration > QoS > Trust Mode > Global
LABEL DESCRIPTIO N
Global
Trust Mode Select the Trust Mo de from the dropdown list.
Apply Click A pp ly to save the changes.
Cancel Click C a nc e l to discard the changes.
