Chapter 9 Routing
VMG/XMG Series User’s Guide
209
The following table describes the labels in this screen.
9.5 The RIP Screen
Routing Information Protocol (RIP, RFC 1058 and RFC 1389) allows a device to exchange routing
information with other routers.
Click Network Setting > Routing > RIP to open the RIP screen.

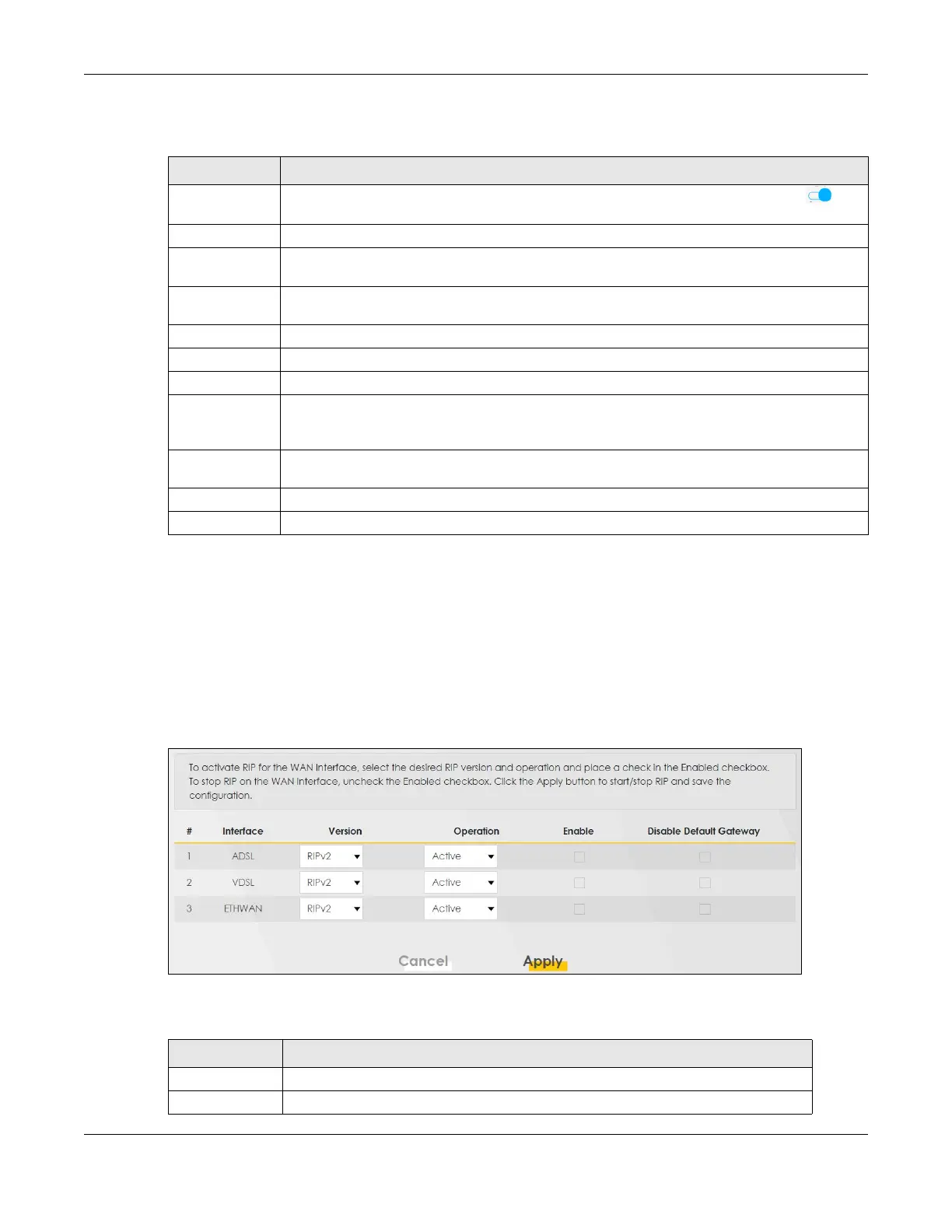

Figure 128 Network Setting > Routing > RIP
The following table describes the labels in this screen.
Table 65 Policy Route: Add/Edit
LABEL DESCRIPTION
Active Click this switch to enable or disable the policy route. When the switch goes to the right , the
function is enabled. Otherwise, it’s not.
Route Name Type a descriptive name of up to 8 printable English keyboard characters, not including spaces.
Source IP
Address
Type the source IP address.
Source Subnet
Mask
Type the source subnet mask address.
Protocol Select the transport layer protocol (None, TCP or UDP).
Source Port Type the source port number.
Source MAC Type the source MAC address.
Source Interface
(ex: br0 or
LAN1~LAN4)
Type the name of the interface from which the matched traffic is sent.
WAN Interface Select a WAN interface through which the traffic is sent. You must have the WAN interface(s)
already configured in the Broadband screens.
Cancel Click Cancel to exit this screen without saving.
OK Click OK to save your changes.
Table 66 Network Setting > Routing > RIP
LABEL DESCRIPTION
# This is the index of the interface in which the RIP setting is used.
Interface This is the name of the interface in which the RIP setting is used.
