USER MANUAL, ZEUS Pt
9
+8 VDC ~ +16 VDC normal operating voltage
UPS for out of range backup power
Over voltage protection up to 110VDC
Ignition Signal / Power Down Timer
Software configurable delay power off signal from 1- 14400 seconds (4 hours)
Software configurable sleep mode after power down 50mA current draw
Power Consumption
Typical 10W (5°C ~ 55°C)
DVR draws less than 24ma when off
ENVIRONMENT
Temperature Range
-30°C to +55°C (-22°F to +131°F) operating temperature
Relative Humidity
10% to 90% non-condensing
1.3 CONNECTORS & LED LOCATIONS
1.3.1 FRONT PANEL

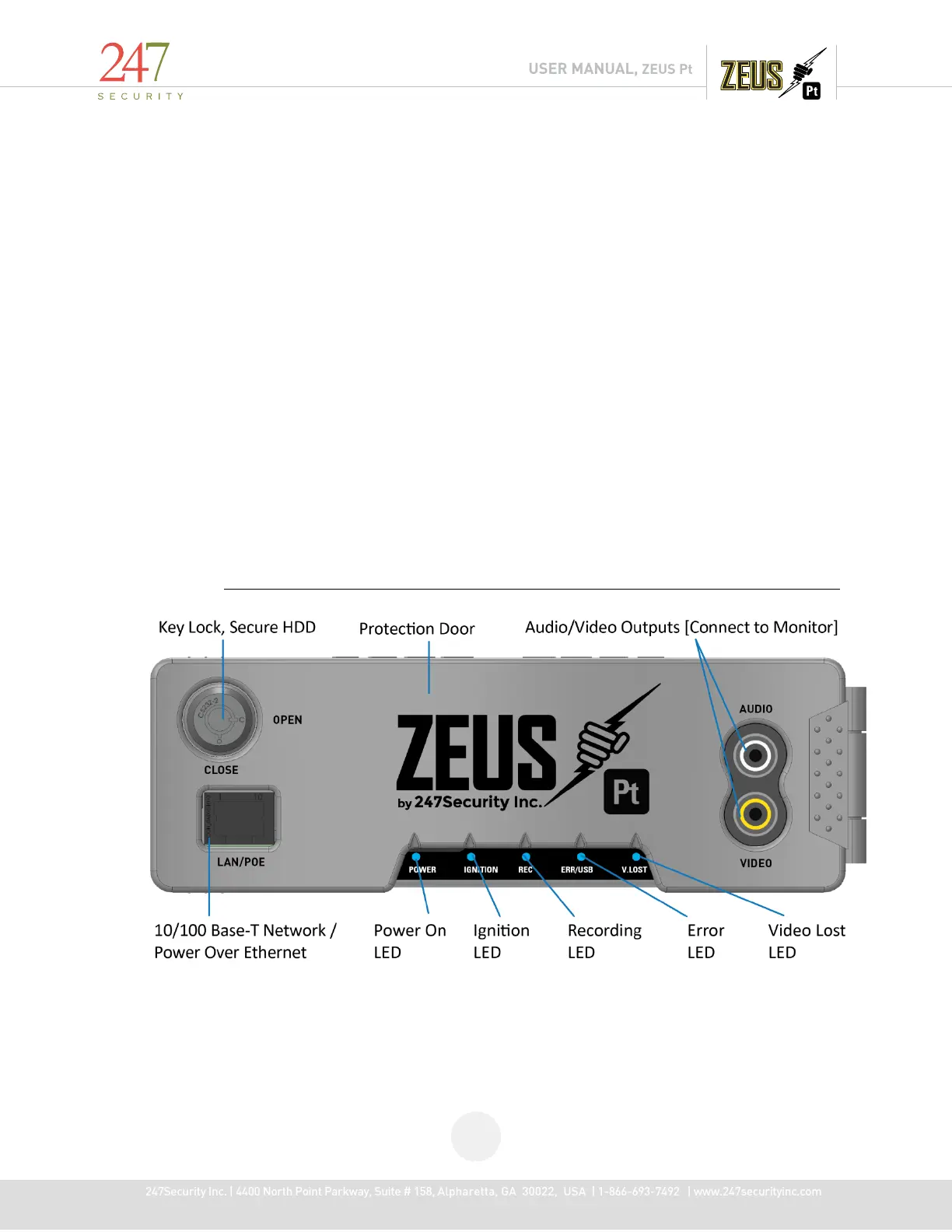

With Door Closed
