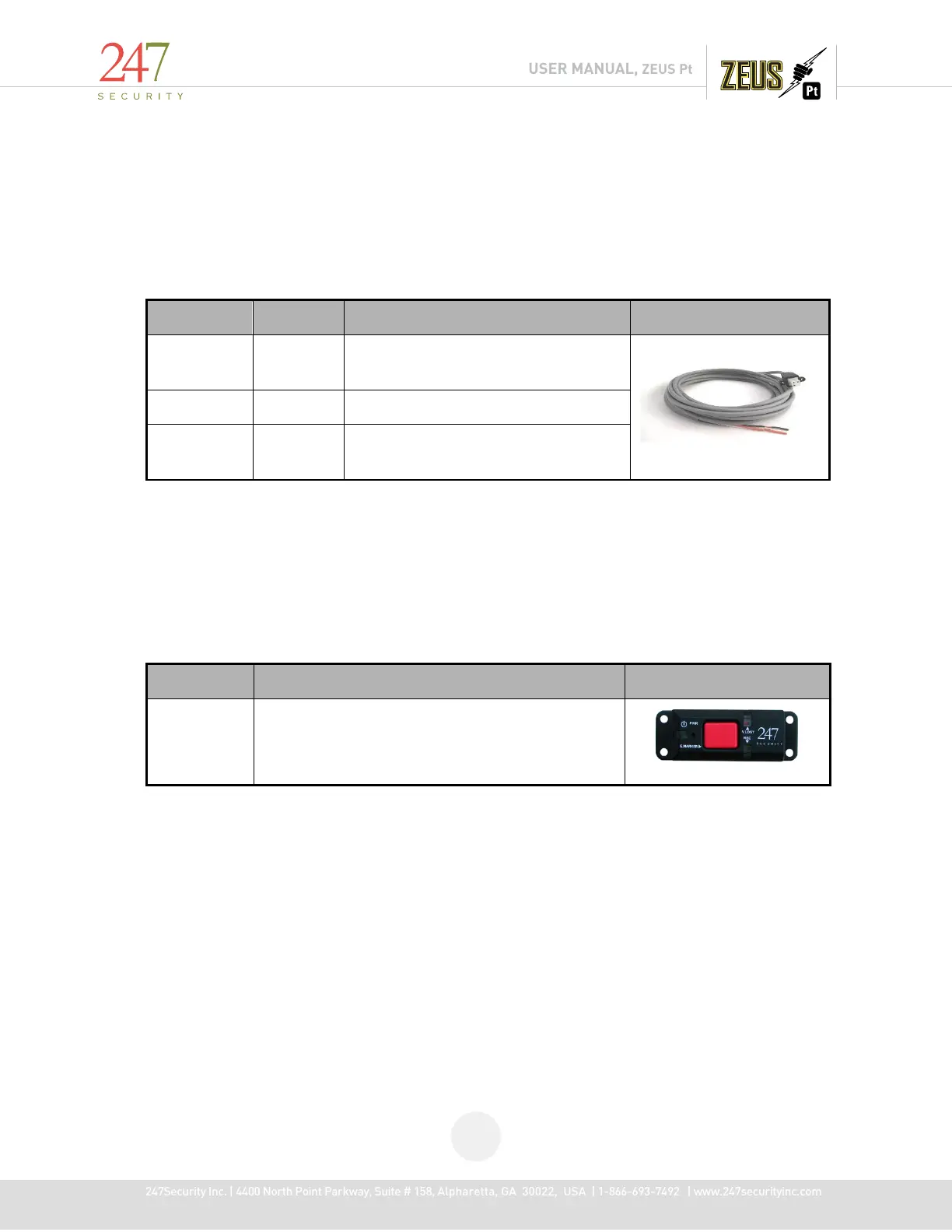

1.6 CABLE REQUIREMENTS
1.6.1 POWER CABLE
The 12ft three wire power cable is included for connection between the DVR and your vehicle
power and ignition signals. It is highly recommended that in-line fast blow fuses (7.5 amps) be installed
on the two power input connections for safety pre-cautions.
Red VIN
Constant battery Input voltage
(8~16VDC)
White ON/OFF
Ignition switched power (only hot
when ignition is in RUN/ACC
1.6.2 EVENT MARKER CABLE
A 15 ft cable is already connected to the Event Marker and pre-wired to a 2X3 Molex connector;
the other end of the cable is connected to the Event Marker port on the DVR. The Event Marker device
has 3 LEDS used to notify when the DVR is Powered on (Green), Recording (Amber) or Lost Video signal
(Red). The push button is used for pre/post trigger recording which when pressed, marks the video files
at that specific moment. Pre-event and Post-event time locking can be configured in the DVR setup.
6-Pin Molex Connects to Event Marker connector on DVR
