USER MANUAL, ZEUS Pt
12

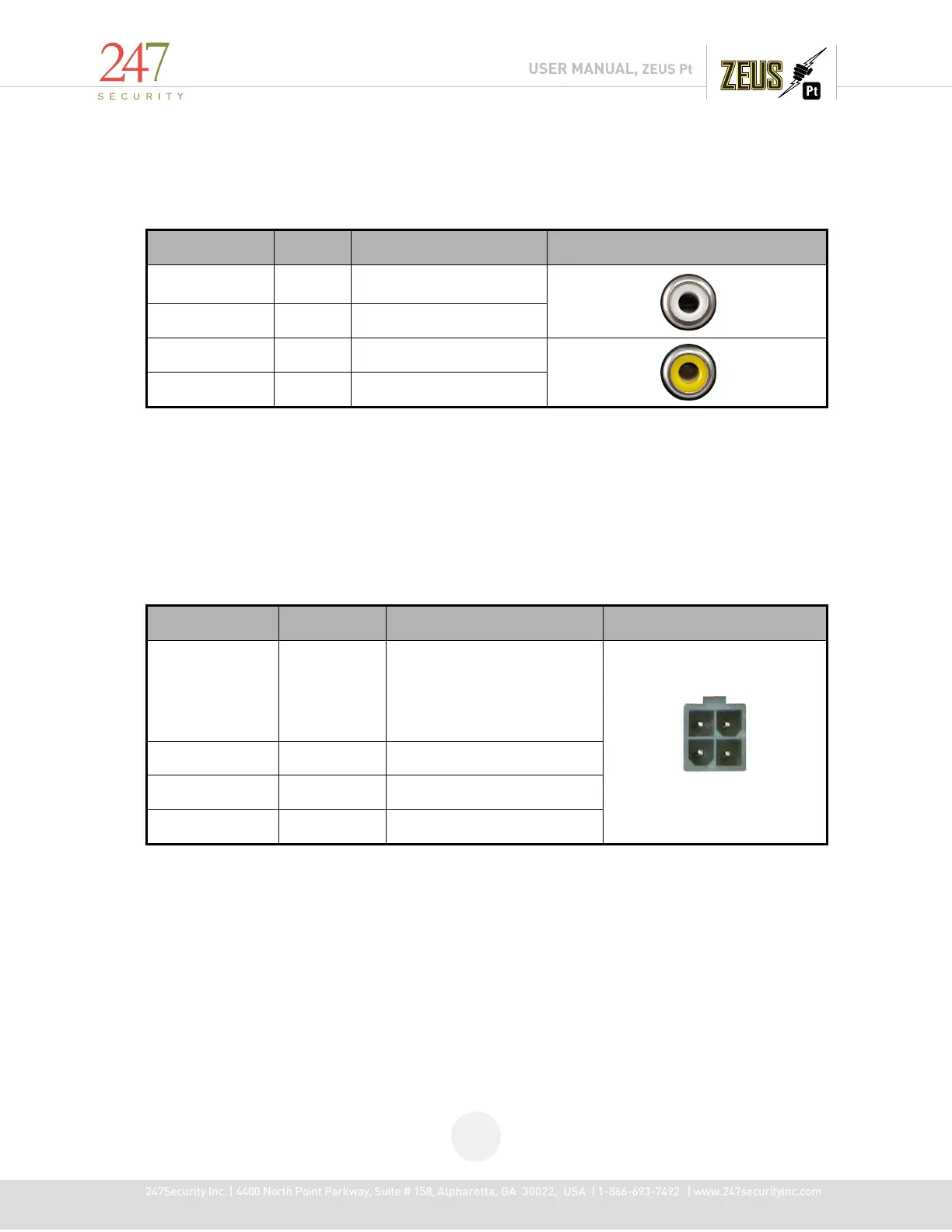

1.4.3 AUDIO/VIDEO OUT CONNECTORS
Connector type: RCA Jack
Pin Number
Signal
Description
Pin out
Inside Audio Audio Signal
Outside
GND
Ground
Inside
Video
Video Signal
Outside
GND
Ground
1.5 BACK CONNECTORS
1.5.1 POWER INPUT CONNECTOR
The ZEUS PT has a built-in Intelligent power circuit that can operate from +6.5v ~ +16V DC-IN. A
constant 12v, Ignition and Ground are required. The DVR is energized by the vehicle’s ignition signa and
uses this signal to trigger start up, the power shut-down delay and the timing circuitry. The system will
remain ON until the ignition signal has been cancelled and the shut-down delay time has been reached.
The system will then go through its normal shutdown procedures before completely powering down.
Pin Number
Signal
Description
Pin out
1 ON/OFF
On/Off Switch
On when 6V ~ VIN
Off when 0V ~ 0.5V
2 1
2
GND
Ground
3
VIN
Input voltage (+8V~+16VDC)
4
GND
Ground
1.5.2 BATTERY LOOPBACK PLUG, UPS OPERATION
The ZEUSPT has an on-board UPS battery system for providing backup power for up to 15
minutes after main power has been lost. The UPS battery will also keep the DVR running in case of over
voltage (greater then 16VDC) and low voltage (less then 8VDC). This plug is also needed to allow the on-
board battery to charge once power is restored. The DVR systems require a battery loopback Plug to
enable this feature. Installers should connect the battery loopback plug to the DVR only after the device
has been fully installed and connected to the vehicle power source. Remove the loopback plug and store
