USER MANUAL, ZEUS Pt
17

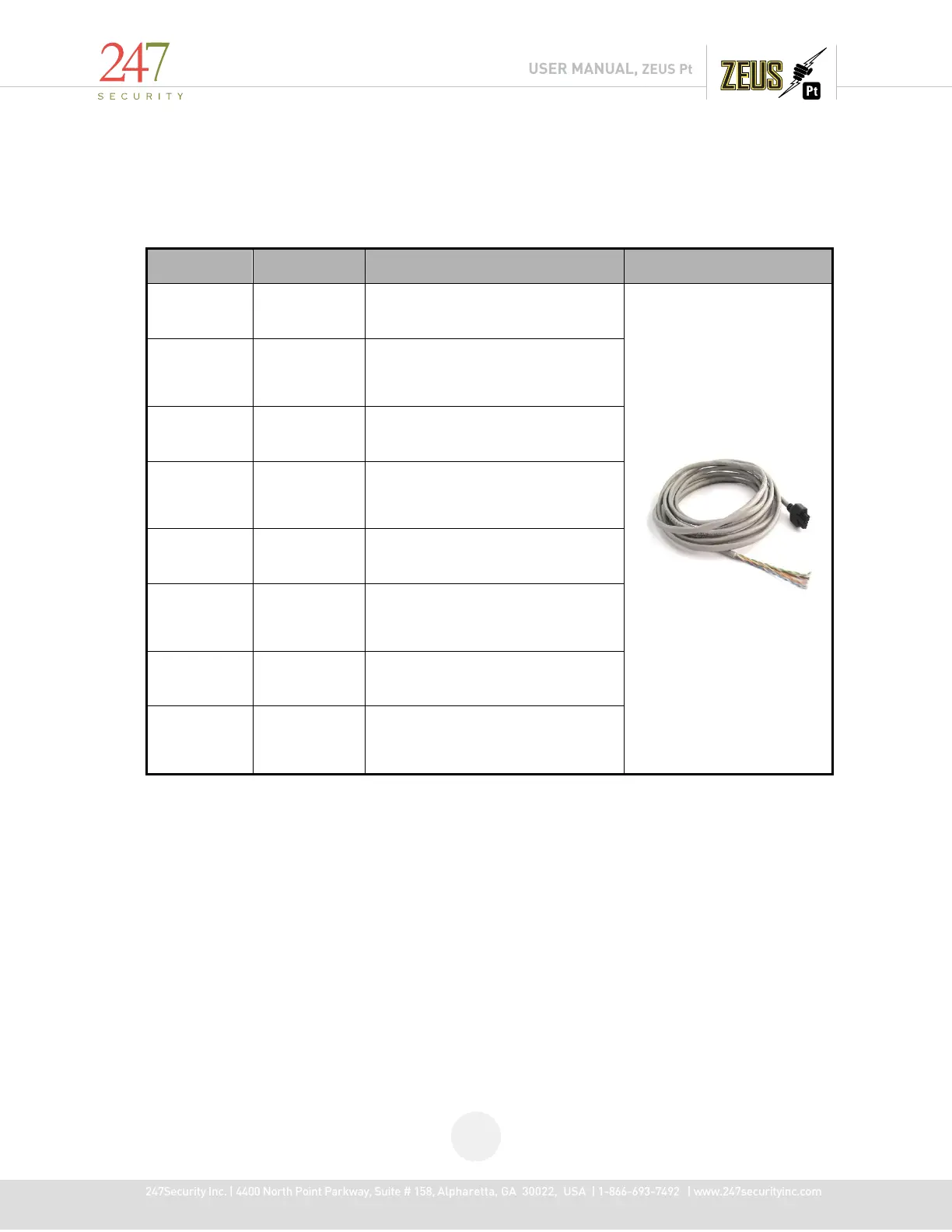

1.6.3 SENSOR / ALARM CABLE
A 15ft sensor / alarm cable is provided to connect the 5 digital inputs, 1 digital output and
motion sensor signals to the GP I/O port of the DVR.
Wire Color
Signal
Description
Brown Input DI_1
Connects to Digital Input 1 of GP
I/O connector (Pin 1)
White/
Green
Input DI_2
Connects to Digital Input 2 of GP
I/O connector (Pin 2)
Green Input DI_3
Connects to Digital Input 3 of GP
I/O connector (Pin 3)
White/
Orange
Input DI_4
Connects to Digital Input 4 of GP
I/O connector (Pin 4)
Orange
Motion
Sensor
Connects to Motion Sensor of GP
I/O connector (Pin 5)
White/
Brown
Output DO_3
Connects to Digital Output 3 of GP
I/O connector (Pin 6)
Blue GND
Connects to GND of GP I/O
connector (Pin 7)
White/
Blue
GND
Connects to GND of GP I/O
connector (Pin 8)
