USER MANUAL, ZEUS Pt
14
to one of these digital input signals. Up to 5 sensors can be wired to this connector. Alternatively, one
alarm (LED, Siren, etc.) is available on the digital output.

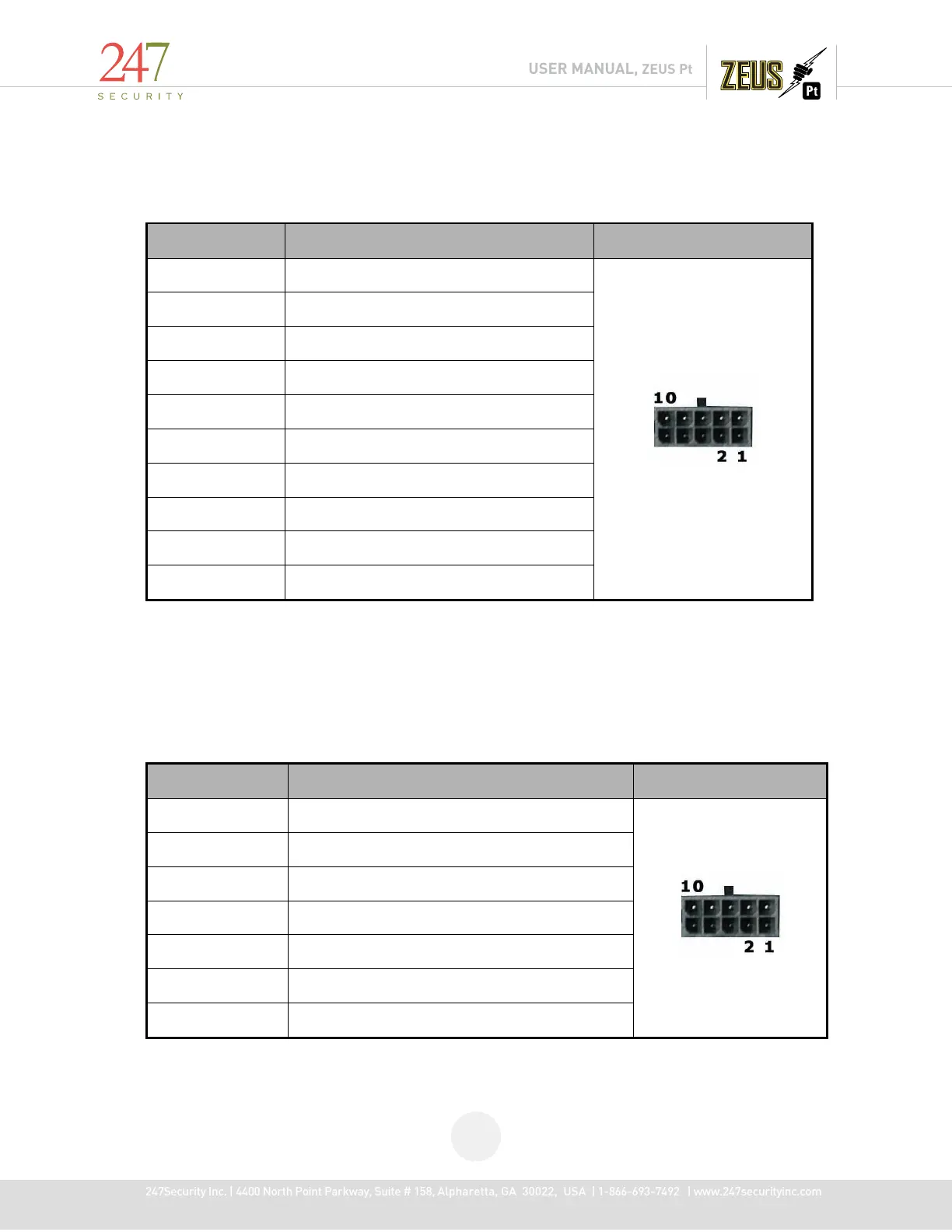

Pin Number
Signal Description
Pin out
1
Input DI_1
2
Input DI_2
3
Input DI_3
4
Input DI_4
5
Input DI_5
6
Output DO_3
7
GND
8
GND
9
+10V Standby
10
+10V Standby
1.5.5 INPUT/OUTPUT CONNECTOR #2 / CAN BUS
Thisoptional connector provides 3 additional digital inputs. The digital inputs are labeled as
DI_6, DI_7 and DI_8. End-users can assign any sensors to one of these digital input signals, up to 3
sensors can be wired to this connector. This connector also provides +12VDC OUT on pin 4 with a built-
in 0.75A fuse. Optional second IO cable is required
Pin Number
Signal Description
Pin out
1
CAN Lo_1
2
CAN Lo_2
3
GND
4
FORCEON_ARM7
5
+12 V OUT
6
CAN Hi_2
7
CAN Hi_1
