3 GigabitEthernet1/0/2 ALTE DISCARDING NONE
4 GigabitEthernet1/0/3 ROOT FORWARDING NONE
Based on the above information, you can draw the MSTI corresponding to each VLAN, as shown in
Figure 4-11.

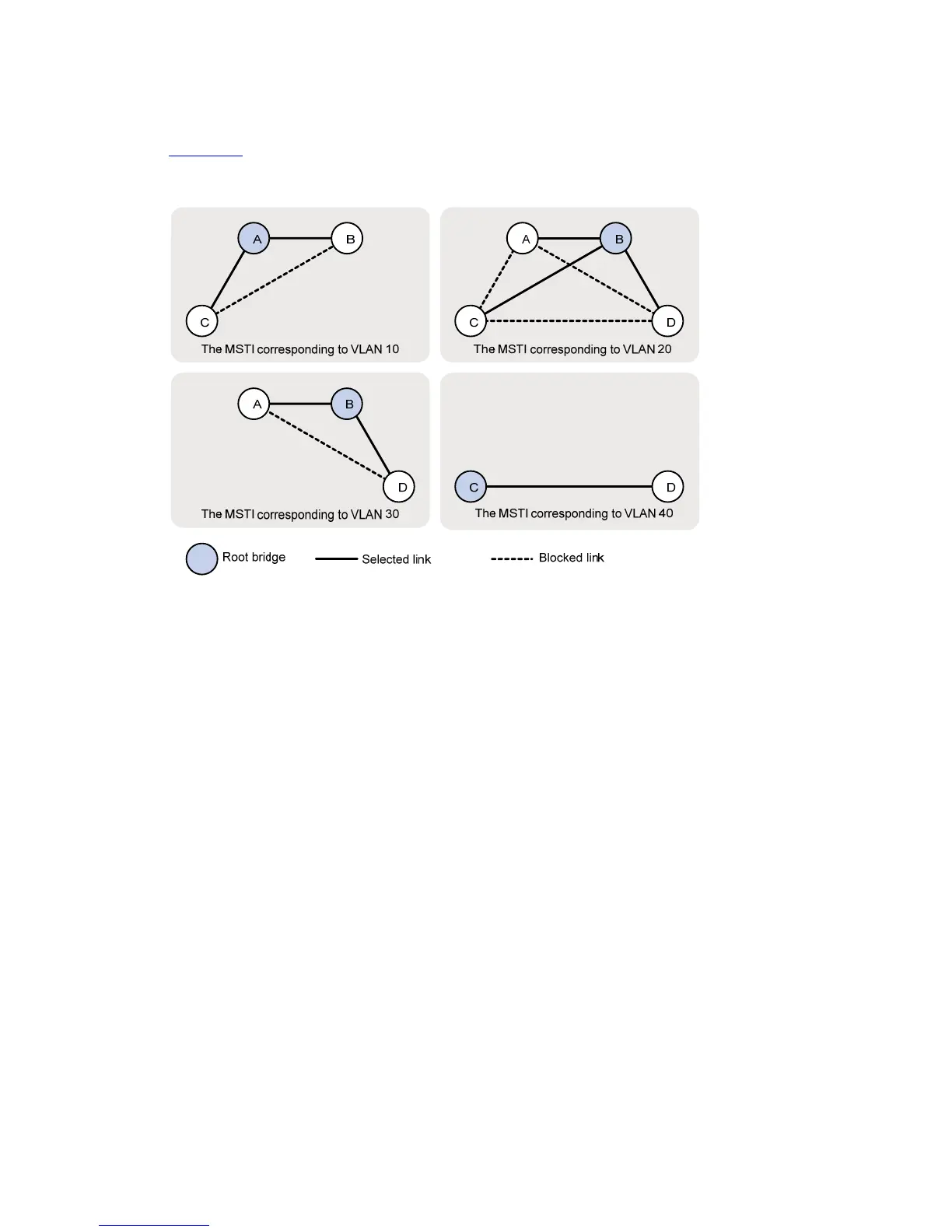

Figure 4-11 MSTIs corresponding to different VLANs
