CAD File Functions
Geometry Functions
A

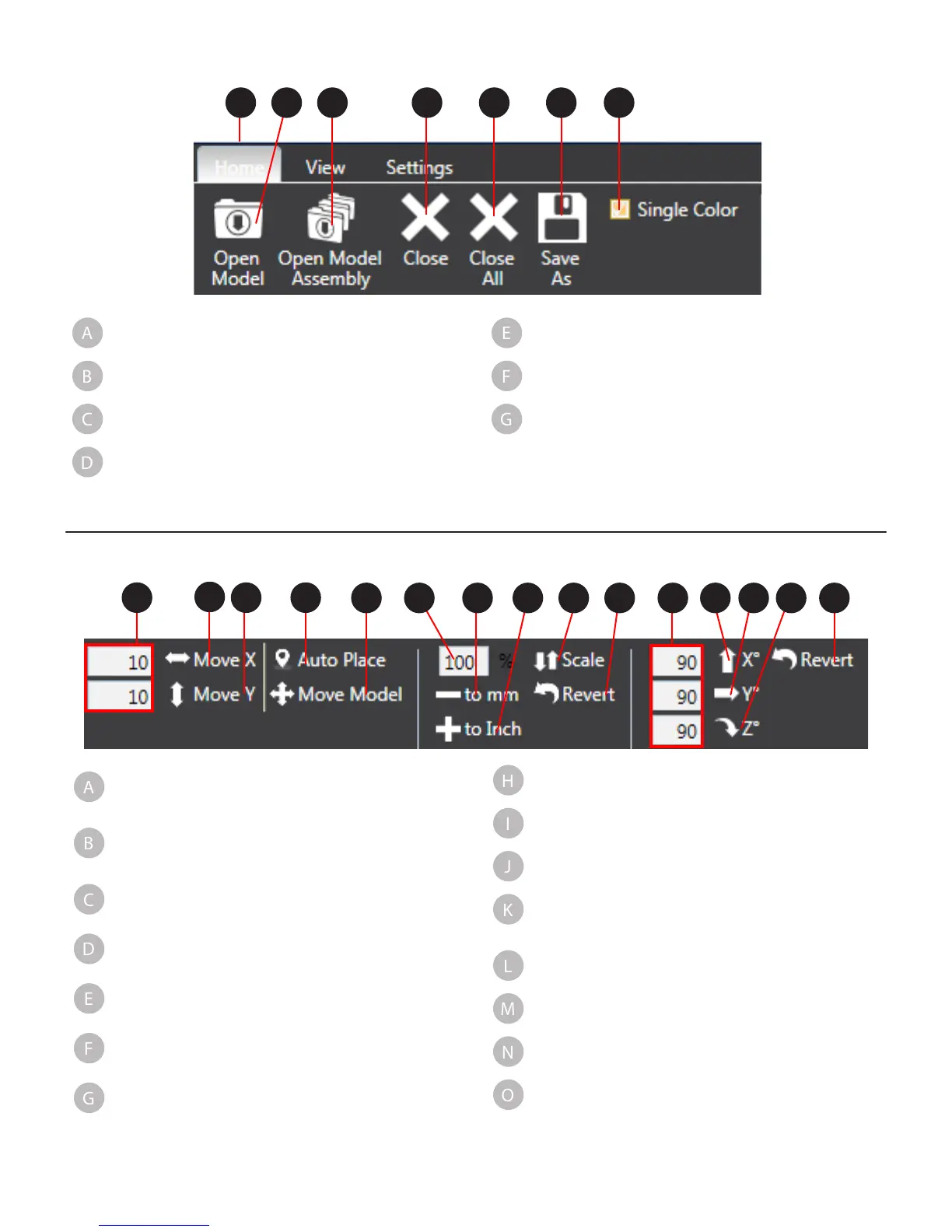

Home Tab The main tab
B
Open Model Opens a .stl le
C
Open Model
Assembly
Opens a multi-part
assembly of .stl les
D
Close Closes an open .stl le
E
Close All Closes all open .stl les
F
Save As Saves the current .stl le
G
Single Color
Check the box if the model
will print using a single color
A B C D E F G
A
Movement
Geometry
Value Fields
Enter the appropriate values to
move the model.
B
Move X Button
Once a value has been entered,
select the button to move the
model left or right.
C
Move Y Button
Once a value has been entered,
select the button to move the
model forward or backward.
D
Auto Place
Auto Place the model to the center
of the print area.
E
Move Model
Once this button has been
selected, left click on the model
and drag it into position.
F
Scale Value
Field
Enter the scale percentage
G
- to mm
Scale the 3D model to the
millimeter value entered in the
eld.
H
+ to Inch
Scale the 3D model to the inch
value entered in the eld.
I
Scale
Scale the model by the specied
percentage.
J
Revert
Undo the scaling and revert back
to the original size.
K
Rotate
Geometry
Value elds
Enter values to rotate the model
L
X
Rotate the model front-to-back on
the X axis by the specied value.
M
Y
Rotate the model left and right on
the Y axis by the specied value.
N
Z
Rotate the model up and down on
the Z axis by the specied value.
O
Revert
Undo the applied rotation and
revert to the original position.
A
B
C D
E F G H I J K L M N O

3D Systems CubePro Specifications

General

Product color	Black, White
Viewing window	Yes
Maximum extruder tip temperature	280 °C
Input current	6 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Print technology	Plastic Jet Printing (PJP)
Printing material	ABS, Polylactic acid (PLA)
Layer thickness (max)	0.3 mm
Layer thickness (min)	0.07 mm
Layer thickness supported	0.2, 0.3 mm
Number of printing colors	3
Maximum build size (WxDxH)	- mm
Vertical print speed (max)	54000 mm/h
Minimum RAM	2 GB
Minimum processor speed	2 GHz
Mac operating systems supported	Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Minimum display resolution requirement	1024 x 768 pixels
Ethernet LAN	-
Accuracy	1 %

Weight and Dimensions

Depth	581 mm
Width	566 mm
Height	606 mm
Weight	41000 g
