3D Systems CubePro User Manual

183D Systems, Inc.

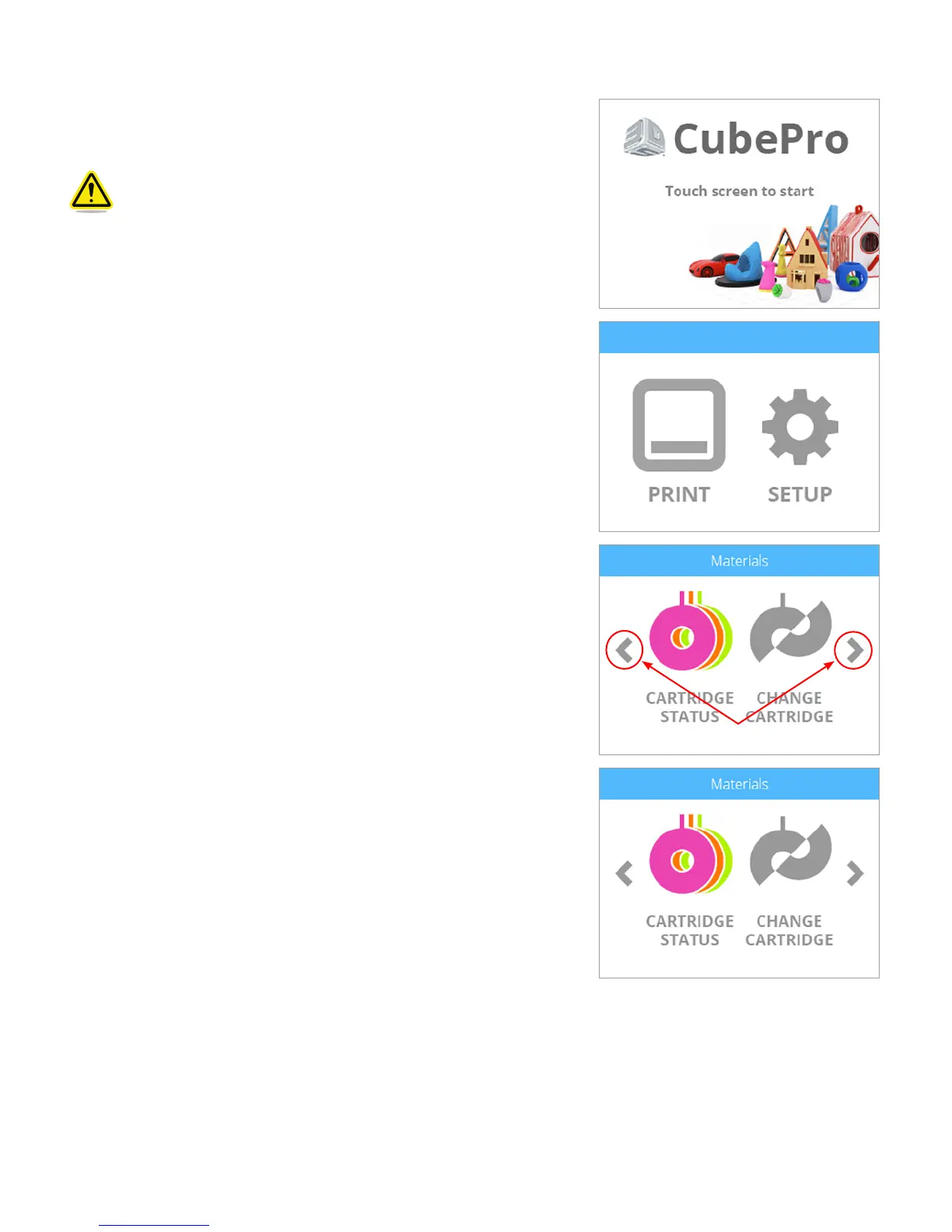

MENU OVERVIEW
TOUCHSCREEN DISPLAY
After powering on the printer and turning on the touchscreen display, touch the
display to continue.
CAUTION: When using the touchscreen, use only light nger
pressure to make selections. Using anything sharp will damage the
touchscreen display and will void the manufacturer’s warranty.
PRINT / SETUP
PRINT allows the user to print a creation stored either on a USB mass storage
device or from the CubePro software. You can invent your own creation by using
Cubify Invent software available at www.Cubify.com.
SETUP allows the user to congure the printer, connect to a wireless or ad hoc
network, install cartridges, or view the printer status.
NAVIGATION
Navigation between screens is performed by pressing the right or left arrows.
MATERIALS
Cartridge Status
CARTRIDGE STATUS allows the user to view the type and color of the material that
is installed. It also displays the estimated amount of material left in the cartridge.
Change Cartridge
Selecting CHANGE CARTRIDGE allows the user to install cartridges in empty bays
or replace installed cartridges.

3D Systems CubePro Specifications

General

Product color	Black, White
Viewing window	Yes
Maximum extruder tip temperature	280 °C
Input current	6 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Print technology	Plastic Jet Printing (PJP)
Printing material	ABS, Polylactic acid (PLA)
Layer thickness (max)	0.3 mm
Layer thickness (min)	0.07 mm
Layer thickness supported	0.2, 0.3 mm
Number of printing colors	3
Maximum build size (WxDxH)	- mm
Vertical print speed (max)	54000 mm/h
Minimum RAM	2 GB
Minimum processor speed	2 GHz
Mac operating systems supported	Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Minimum display resolution requirement	1024 x 768 pixels
Ethernet LAN	-
Accuracy	1 %

Weight and Dimensions

Depth	581 mm
Width	566 mm
Height	606 mm
Weight	41000 g
