Printing the Level Gap Calibration File
NOTE: Ensure the print pad is completely clean from glue and printed parts before beginning this procedure.
1. Download the Level Gap Calibration le from www.Cubify.com to your USB
mass storage device.
2. Insert the USB mass storage device into the USB host port.

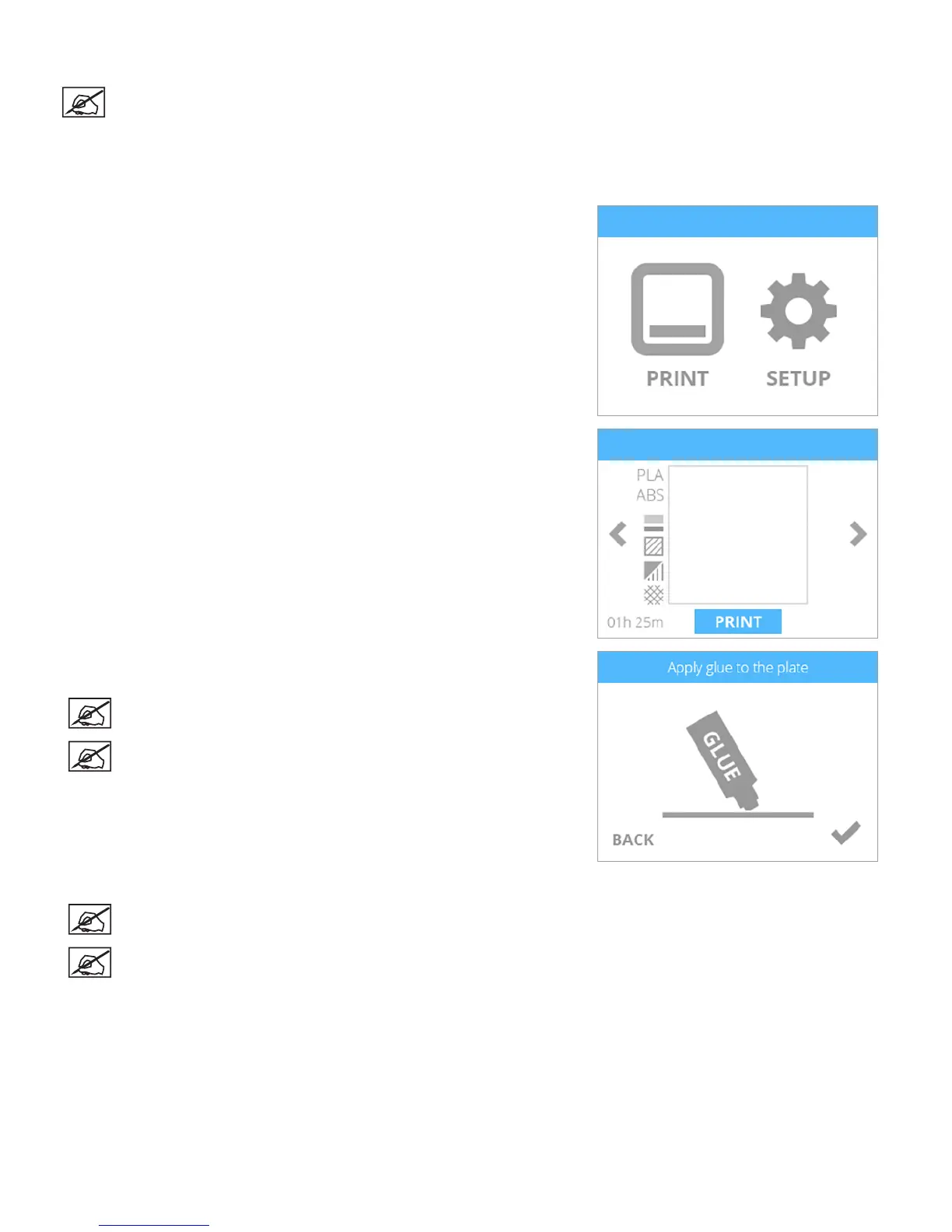

3. Select PRINT.
4. Using the arrows, navigate to the Level Gap Calibration le and select PRINT.
5. Apply two thin layers of Cube Glue to the print pad in an area of 50 mm x 50
mm. Select the checkmark to continue.
NOTE: For more information, refer to the section titled Applying
Cube Glue.
NOTE: It may take several minutes to print the le.
6. When nished, remove the print pad and verify the Level Gap.
NOTE: Refer to the sections titled Reading The Z-Gap Calibration
Print and Reading The Print Pad Level Calibration Print.
NOTE: If any adjustments are needed, perform this procedure again
after making the adjustments. Make sure all glue and plastic residue
have been removed prior to performing this procedure again.
