Offset Jets Calibration Procedure

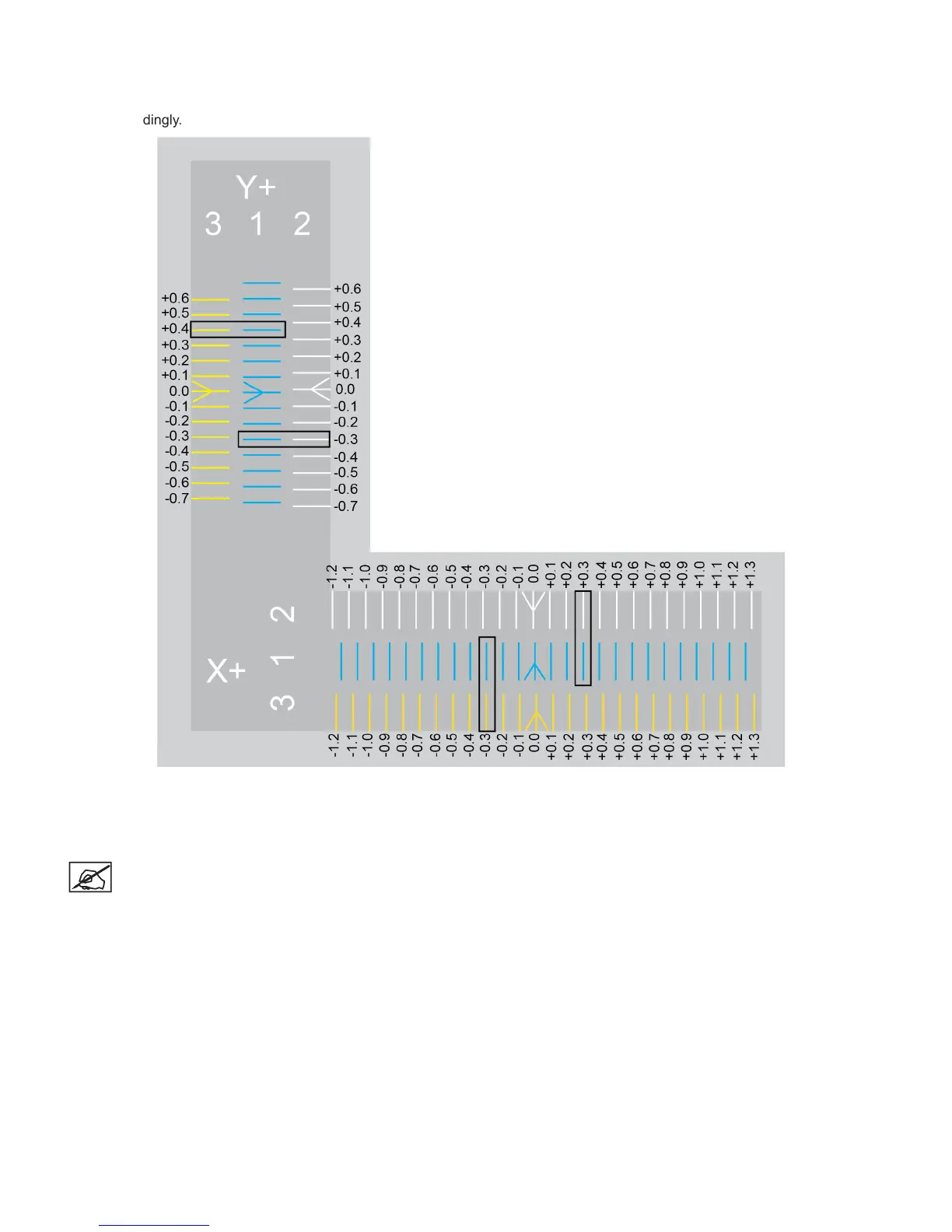

The following procedure demonstrates calibrating print jets 1 and 2 on the X-axis. Calibrating the Y-axis is the same procedure. The
illustration below will be used for demonstration purposes. Be sure to refer to the actual scale printed by your printer and adjust the
settings accordingly.
1. Browse to www.Cubify.com and select the Cubes + dropdown menu.
2. Select CubePro.
3. Select Test Print Files.
NOTE: The le will begin to download.
4. Extract the le and save it to a mass storage device.
