Back Panel
1
2 3
4a (2)
4b (2)
4a (1)
4b (1)

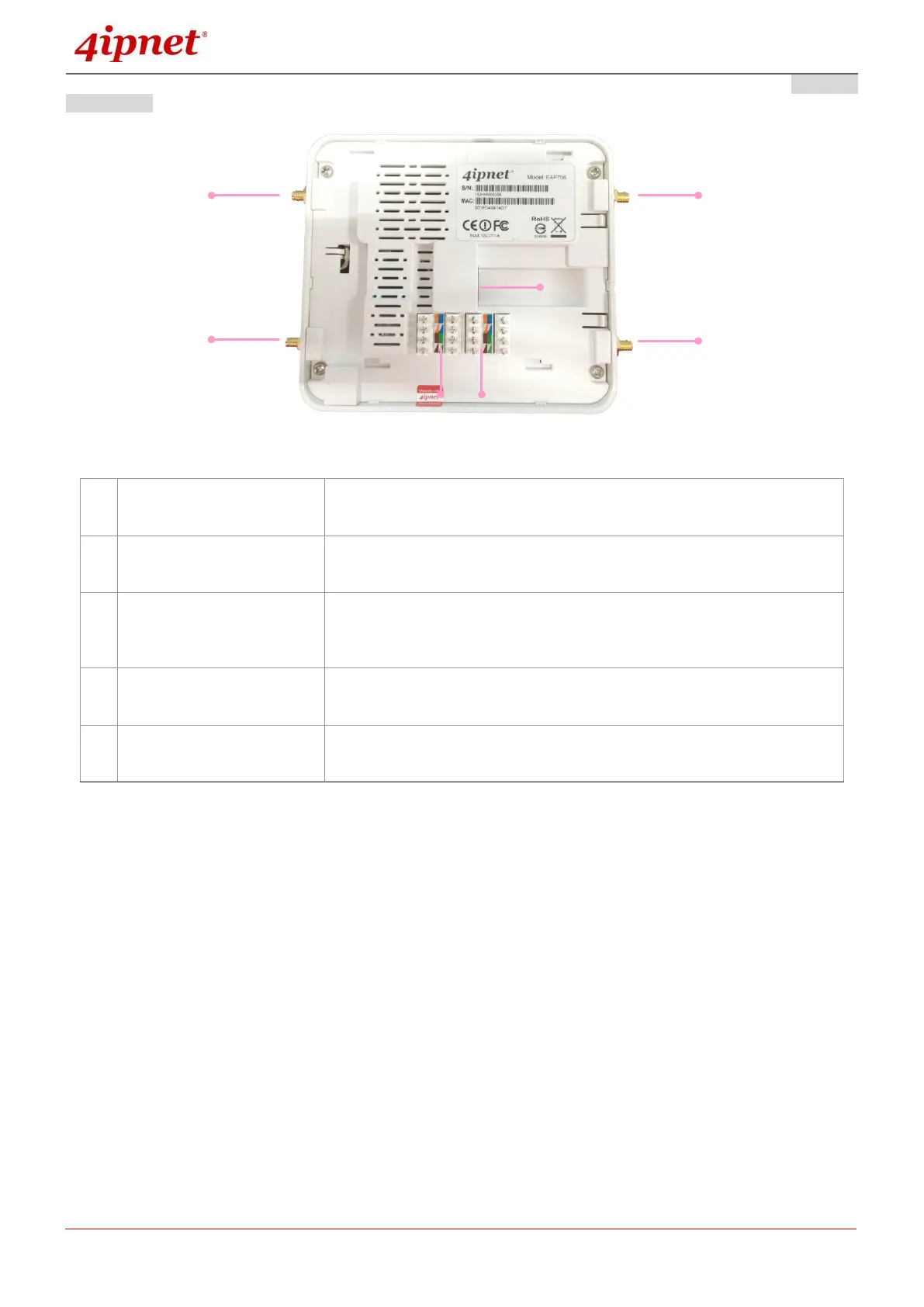

EAP706 Back Panel
1
Uplink (PoE) Port
For Uplink connection. This port can be used to connect to a controller,
gateway, or directly to the internet. PoE is supported.
2
110 Punchdown Block
(Pass-through)
Copper wire punch down for wiring bypass.
3
110 Punchdown Block
(Uplink PoE)
Copper wire punch down for Uplink connection. This can be used to
connect to a controller, gateway, or directly to the internet. PoE is
supported.
4a
SMA Connectors (2.4GHz)
Connect external antennas for RF Card A here. (1) is the primary
antenna connector while (2) is the secondary connector.
4b
SMA Connectors (5GHz)
Connect external antennas for RF Card B here. (1) is the primary
antenna connector while (2) is the secondary connector.
