4IPNET EAP210 - EAP757 Hardware Description

User’s Manual
Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
27
EAP757
Rear Panel
7
1 2 3 4 5 6 7

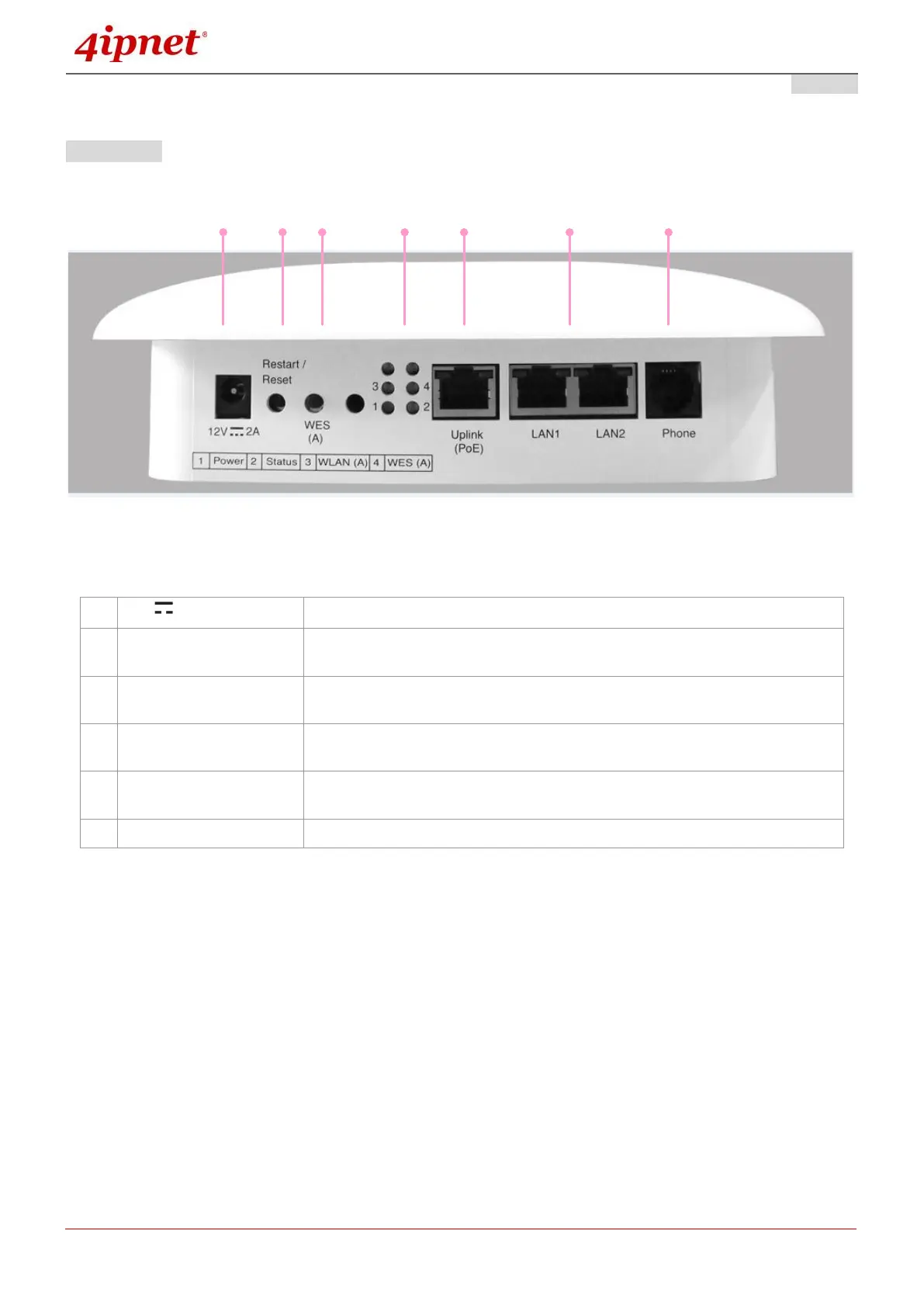

EAP757 Back Panel
1
12V 2 A
Attach the power adaptor here.
2
Restart / Reset Button
Press once to restart the system; Press and hold for more than 5 seconds
to reset to factory default.
3
WES Button
WDS Easy Setup. Press the button to build up a WDS link with another
peer.
4
LED Indicators
4 LED lights. Representation is listed at the bottom of the panel. (Top 2
reserved for RF Card B if applicable)
5
Uplink (PoE) Port
For Uplink connection. This port can be used to connect to a controller,
gateway, or directly to the internet. PoE is supported.
6
LAN 1 – 2 Ports
Attach Ethernet cables here to connect to the wired local network.
