Back View
1 2 3
4 5a 6 5b
7

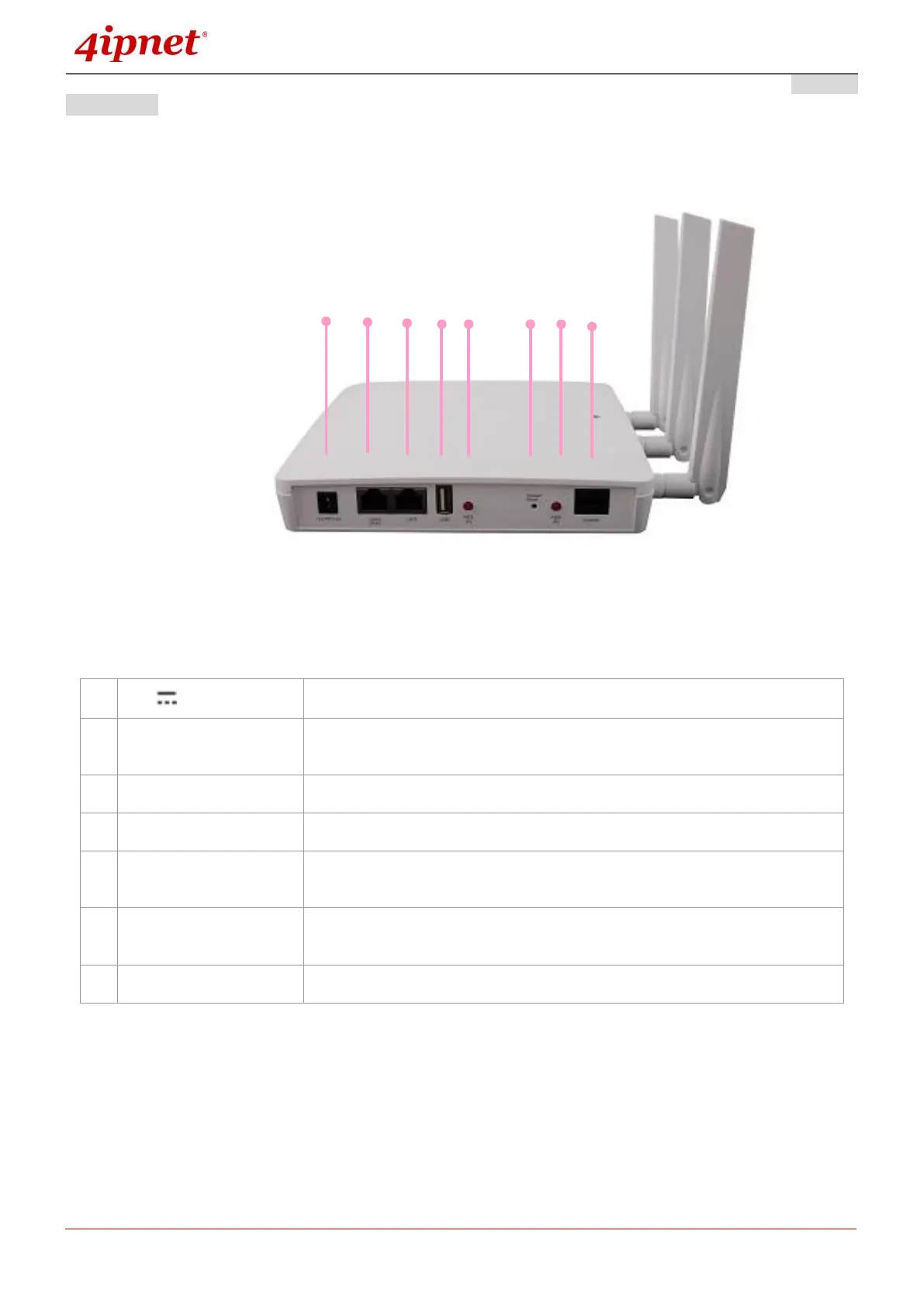

EAP760 Back View
1
12V 2.5 A
Attach power adaptor here
2
Uplink (PoE) Port
Offers uplink connection. This port can be used to connect to a controller,
gateway, or directly to the Internet. 802.3at PoE is also supported
3
LAN 1 Port
The ports for connections with LAN side devices
4
USB Port
USB interface reserved for future use
5
WES Button
For IT administrators to easily setup WDS links with RF Card (A) and RF
Card (B) respectively.
6
Restart / Reset
Press once to restart the system; to reset the system to factory default
settings, hold for more than 5 seconds.
7
Console Port
To access EAP760 via the console interface.
