ABB A145-M65 - Fig. 31: Removing the Gas Outlet Casing

To Next Page

To Previous Page

Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.4 Removing the gas outlet casing

u Mark the casing position for assembly.

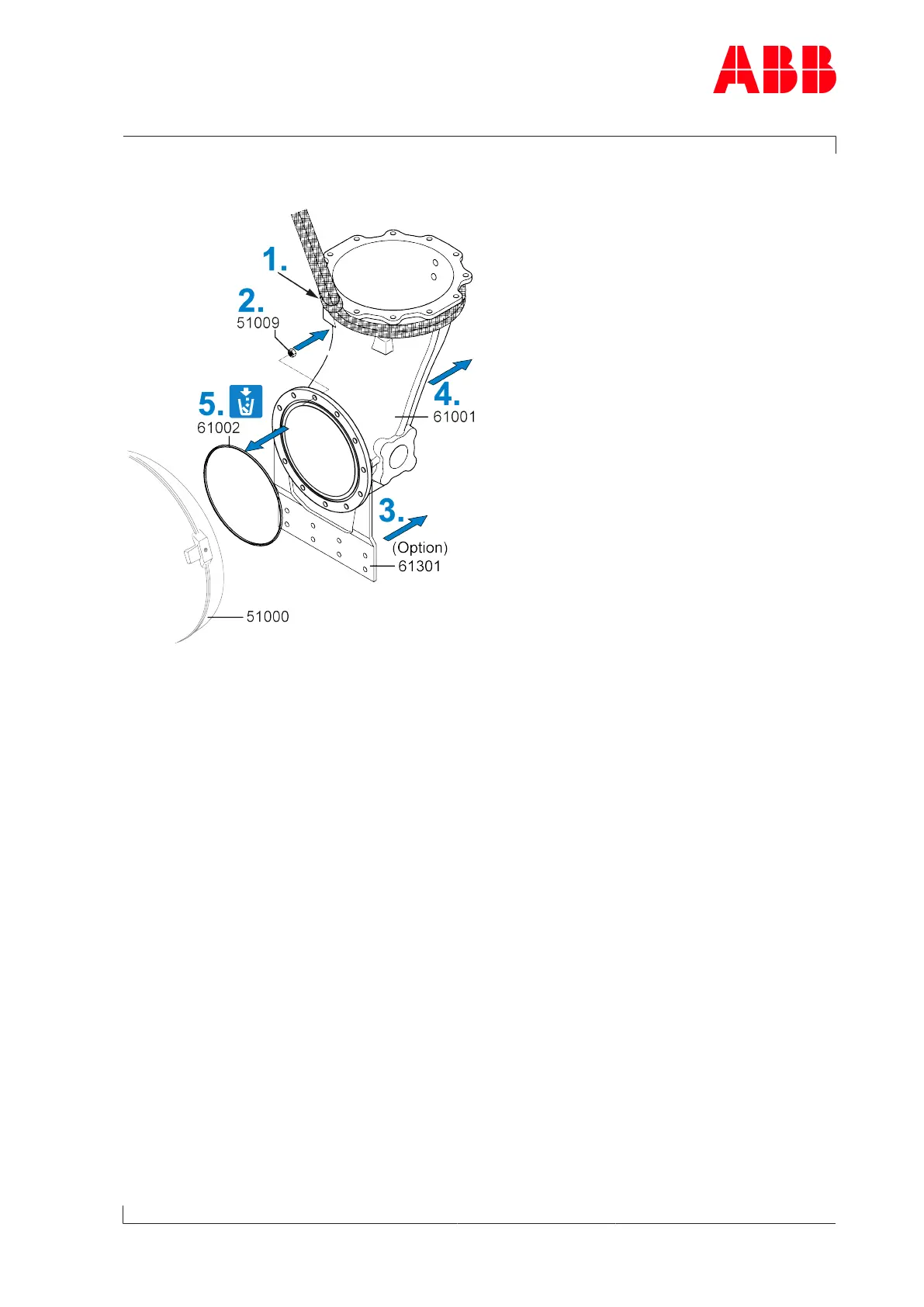

Fig.31: Removing the gas outlet casing

1. Attach lifting gear to the gas outlet casing (61001).

2. Loosen and remove nuts (51009).

3. If present: Loosen the support (61301) from the bracket.

4. Remove the gas outlet casing (61001), set it down properly in an appropriate place and

secure it.

5. Remove and dispose of the gasket(61002).

Page 73 / 111
