Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.19 Installing the gas outlet casing

Fitting the insulation

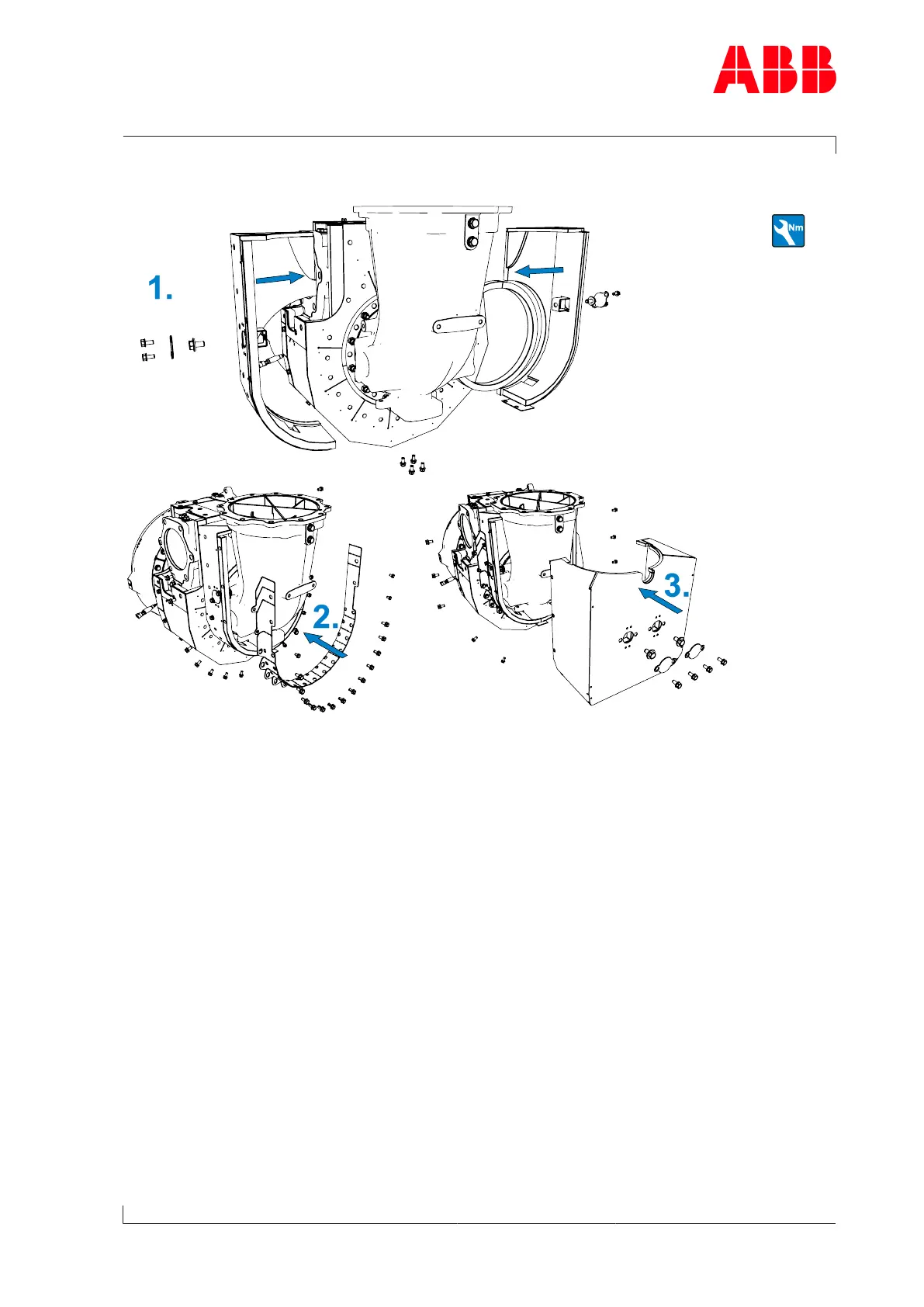

Fig.55: Fitting the insulation

u Fit the insulation according to the illustration. Observe tightening torques (see Table of

tightening torques →98).

Page 97 / 111
