Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.15 Installing the compressor casing

Installing the compressor casing

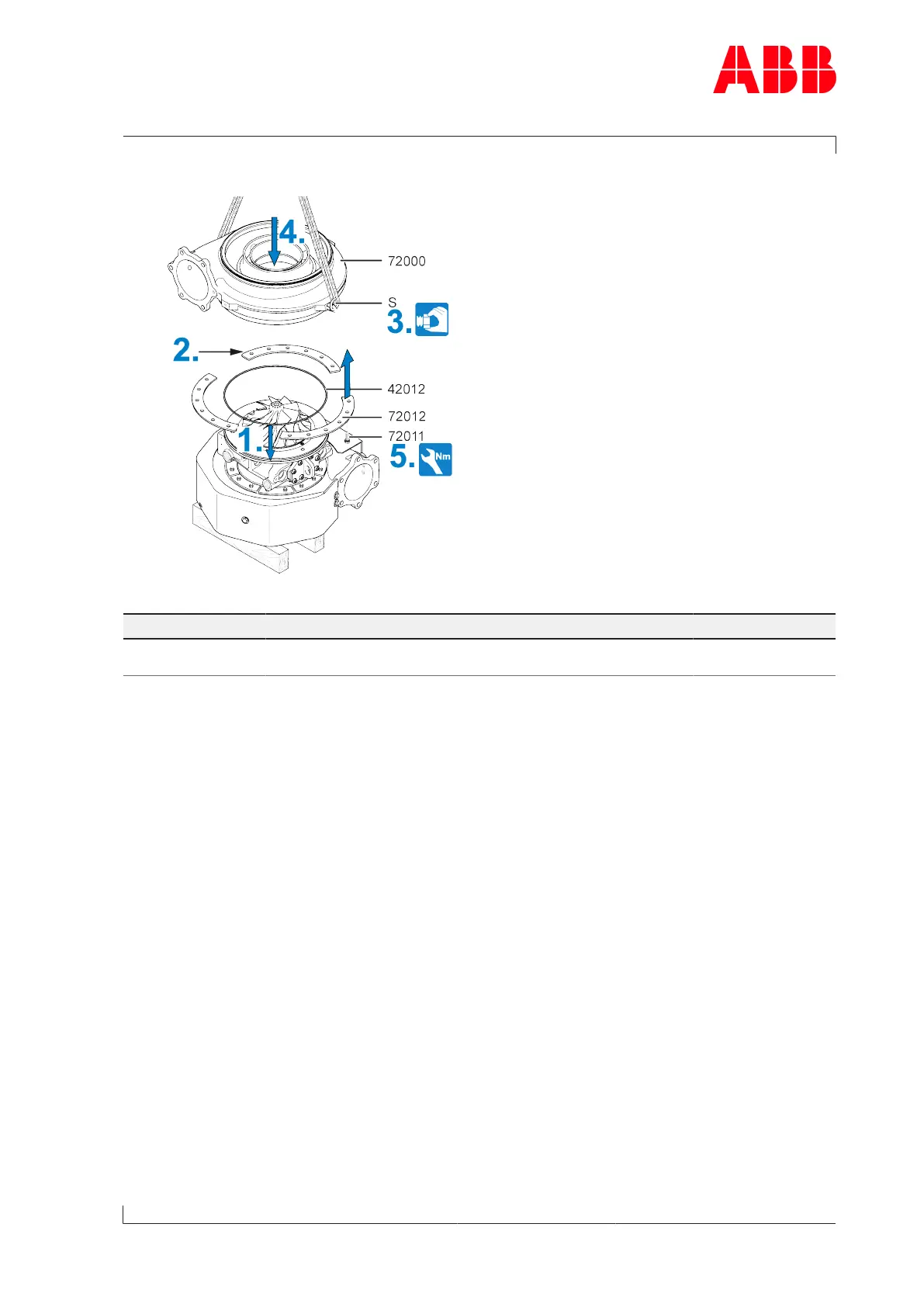

Fig.49: Installing the compressor casing

Part number A130 A135 A140 A145

72011 M8

35Nm

M10

70Nm

M12

105Nm

M14

170Nm

Table42: Tightening torque (72011)

1. Fit a new O-ring(42012).

2. Thoroughly clean the fastening strips(72012) before assembly.

3. Attach swivel lifting eyes(S) to compressor casing(72000). Secure lifting gear to the

swivel lifting eyes.

4. Install the compressor casing(72000).

5. Install the fastening strips(72012) with screws(72011). Observe the tightening torque. If

these screws do not have a Verbus Ripp® integrated, Verbus Ripp® washers(72010) must

also be fitted.

Page 91 / 111
