Operation Manual / 4 Product description / A130-M.. - A145-M..

1 Introduction / 1.6 Locations of the rating plates

1.6 Locations of the rating plates

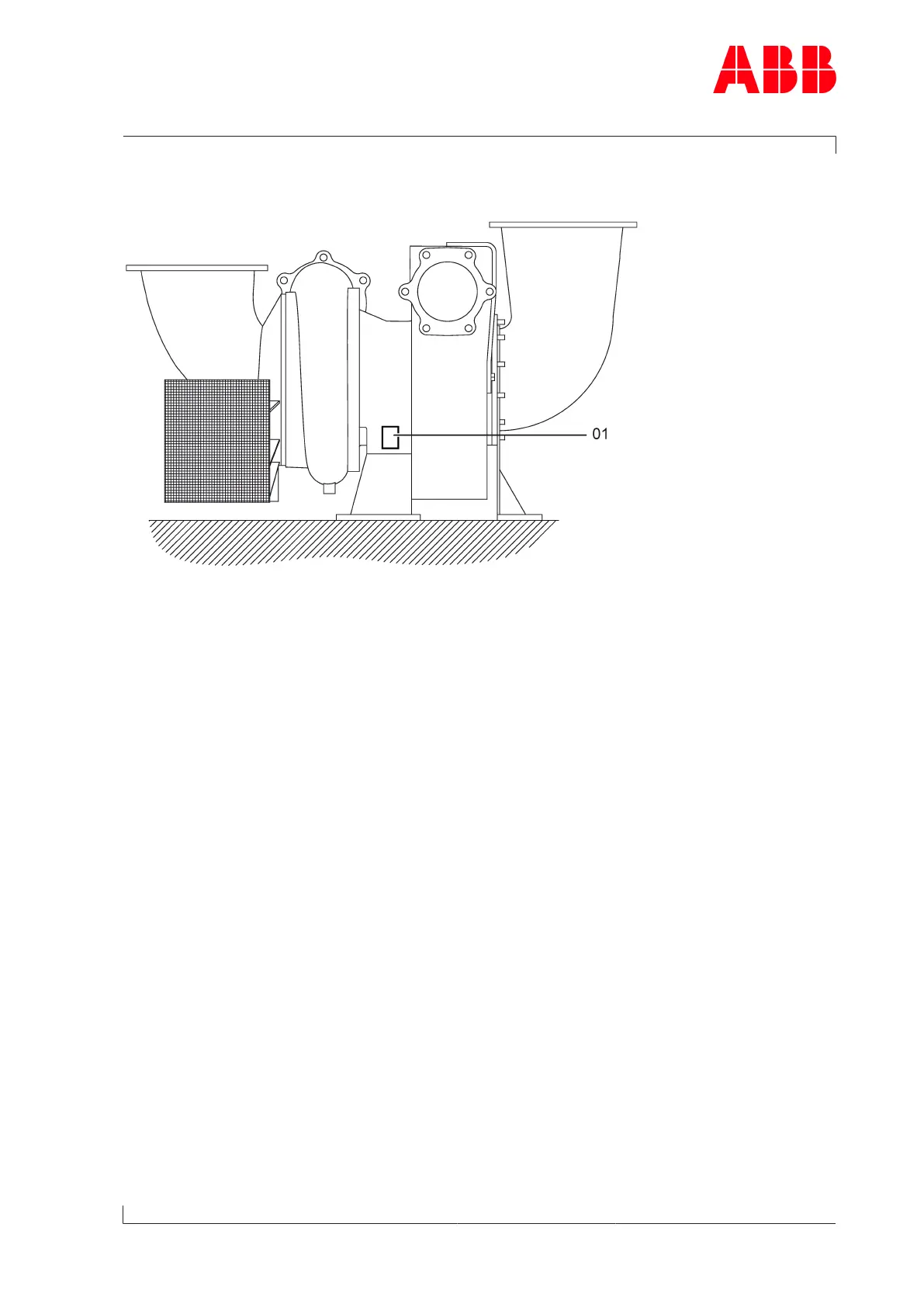

Fig.4: Locations of the rating plates

One rating plate (01) each is attached on the left and the right side of the turbocharger bear-

ing casing.

Page 7 / 111
