Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.14 Installing the cartridge group

8.14 Installing the cartridge group

Lifting the cartridge group and rotating it by 90°

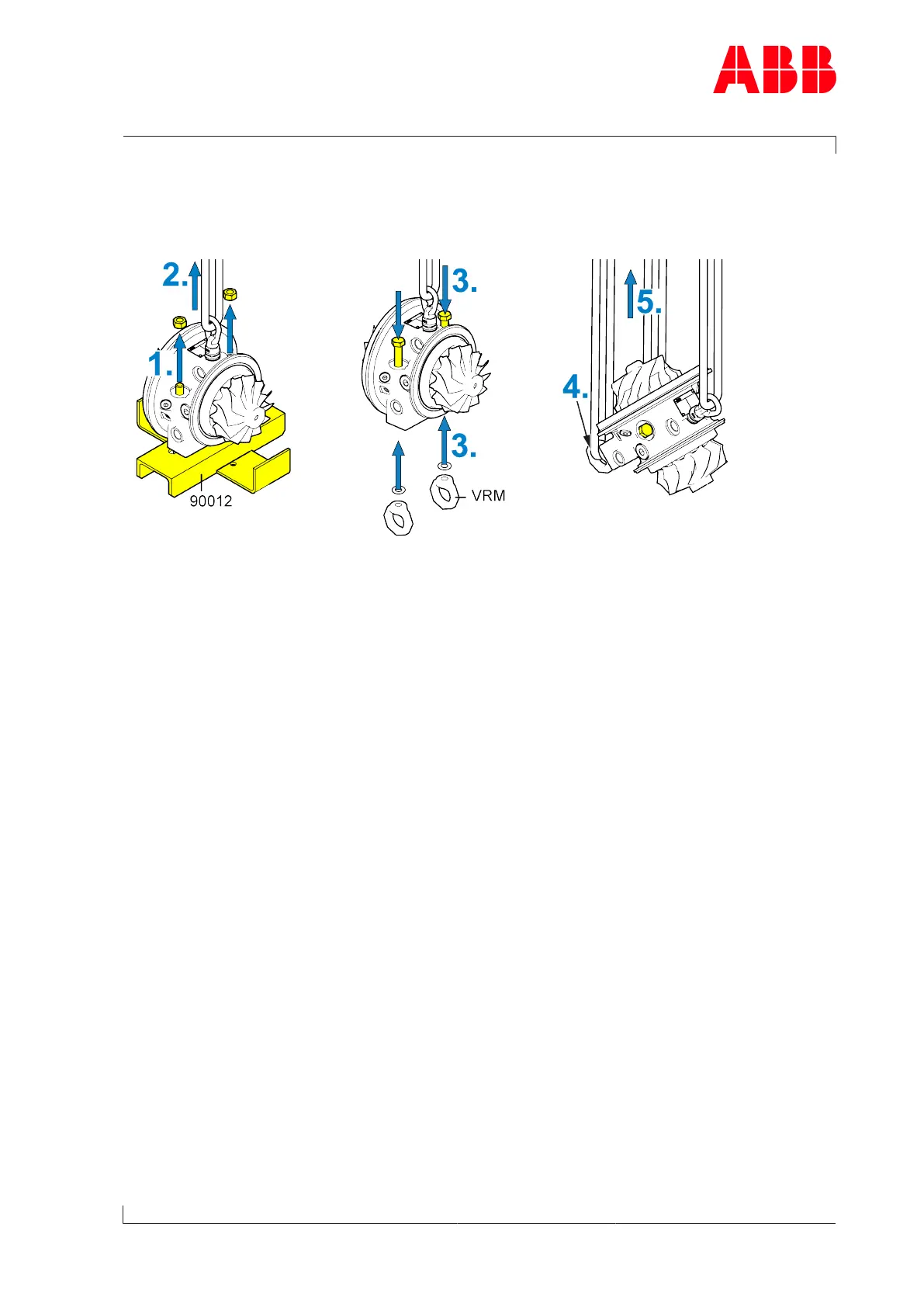

Fig.46: Lifting the cartridge group and rotating it by 90°

1. Loosen and remove nuts.

2. Lift the cartridge group out of the service support (90012).

3. Insert the screws of the service support from above and fit ring nuts(VRM) with washers.

4. Attach lifting gear to the ring nuts(VRM).

5. Lift cartridge group at the side of the ring nuts(VRM) and turn it into a vertical position.

Page 87 / 111
