ABB A145-M65 - Removing the Nozzle Ring; Fig. 41: Removing the Nozzle Ring

To Next Page

To Previous Page

Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.9 Removing the nozzle ring

8.9 Removing the nozzle ring

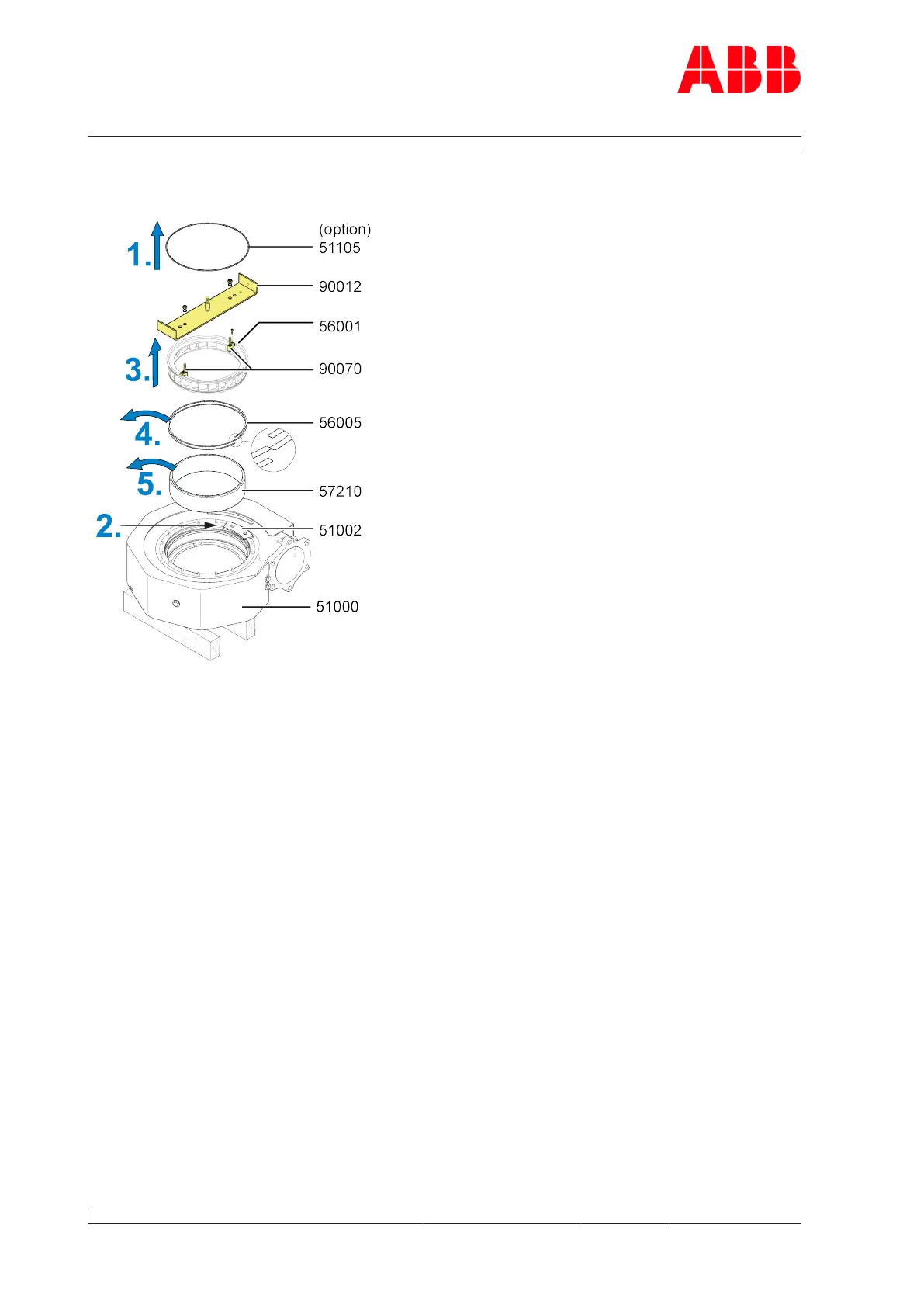

Fig.41: Removing the nozzle ring

1. If present: Remove the metal C-ring(51105).

2. Position the fastening strips (51002) in place.

3. Pull out the nozzle ring (56001) with the two extraction devices (90070) and the service

support base (90012).

4. Remove the lamellar sealing ring (56005).

5. Remove the burst ring (57210).

Page 82 / 111
