ABB A145-M65 - Fig. 47: Installing the Cartridge Group; Table 40: Tightening Torque (51007)

To Next Page

To Previous Page

Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.14 Installing the cartridge group

Installing the cartridge group

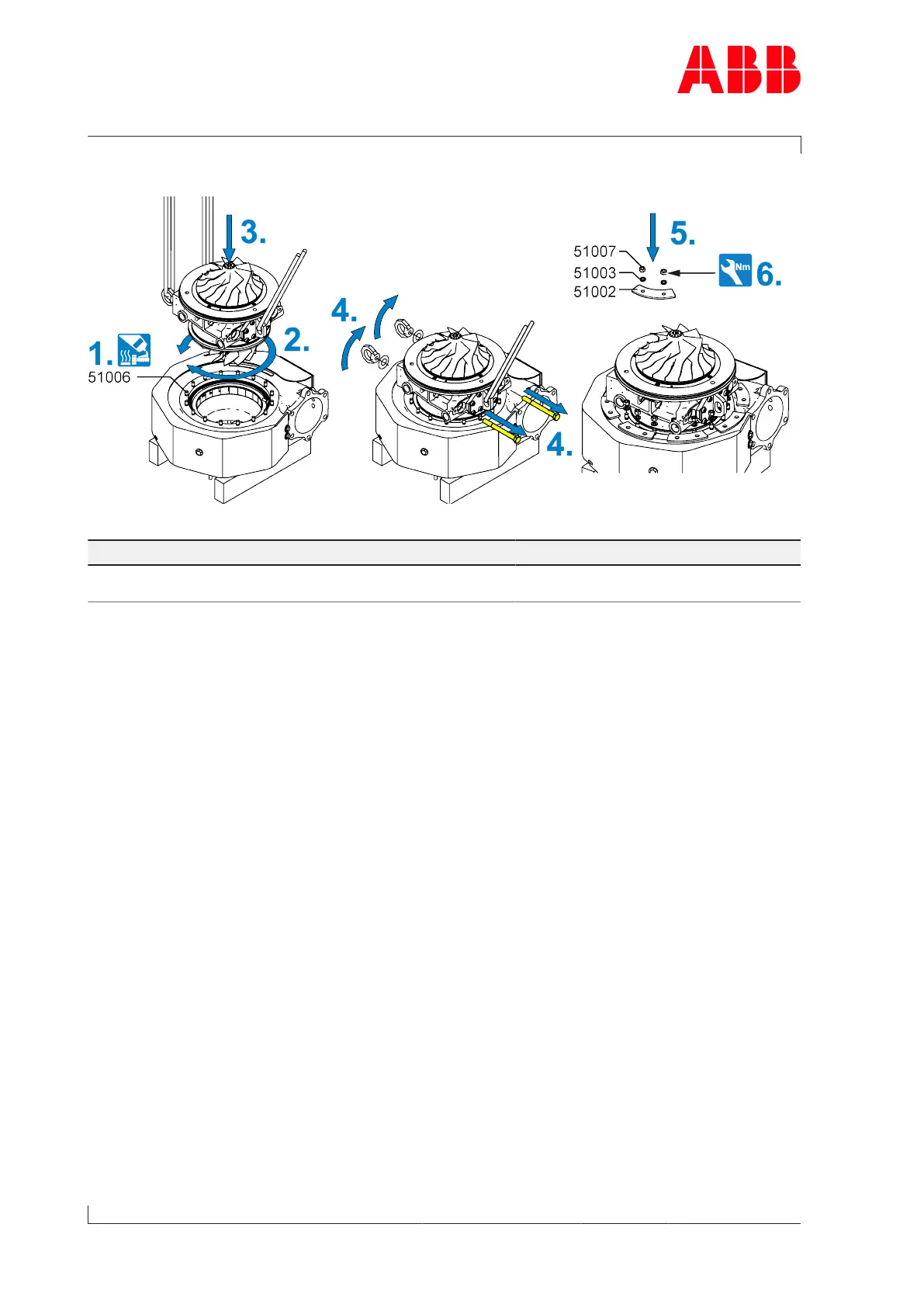

Fig.47: Installing the cartridge group

Part number A130 A135 A140 A145

51007 M8

25Nm

M10

45Nm

M12

75Nm

M12

75Nm

Table40: Tightening torque (51007)

1. Coat the threads of the studs(51006) with high-temperature grease.

2. Align the casing position of the cartridge group with the marking.

3. Lower the cartridge group into the turbine casing.

4. Remove ring nuts and screws.

5. Install the fastening strips(51002) with Verbus Ripp®discs(51003) and hexagon

nuts(51007).

6. Tighten the hexagon nuts(51007).

Page 88 / 111
