ABB A145-M65 - View of Turbocharger with Part Numbers; Fig. 60: Overview of Part Numbers

To Next Page

To Previous Page

Operation Manual / 4 Product description / A130-M.. - A145-M..

12 Spare parts / 12.3 View of turbocharger with part numbers

12.3 View of turbocharger with part numbers

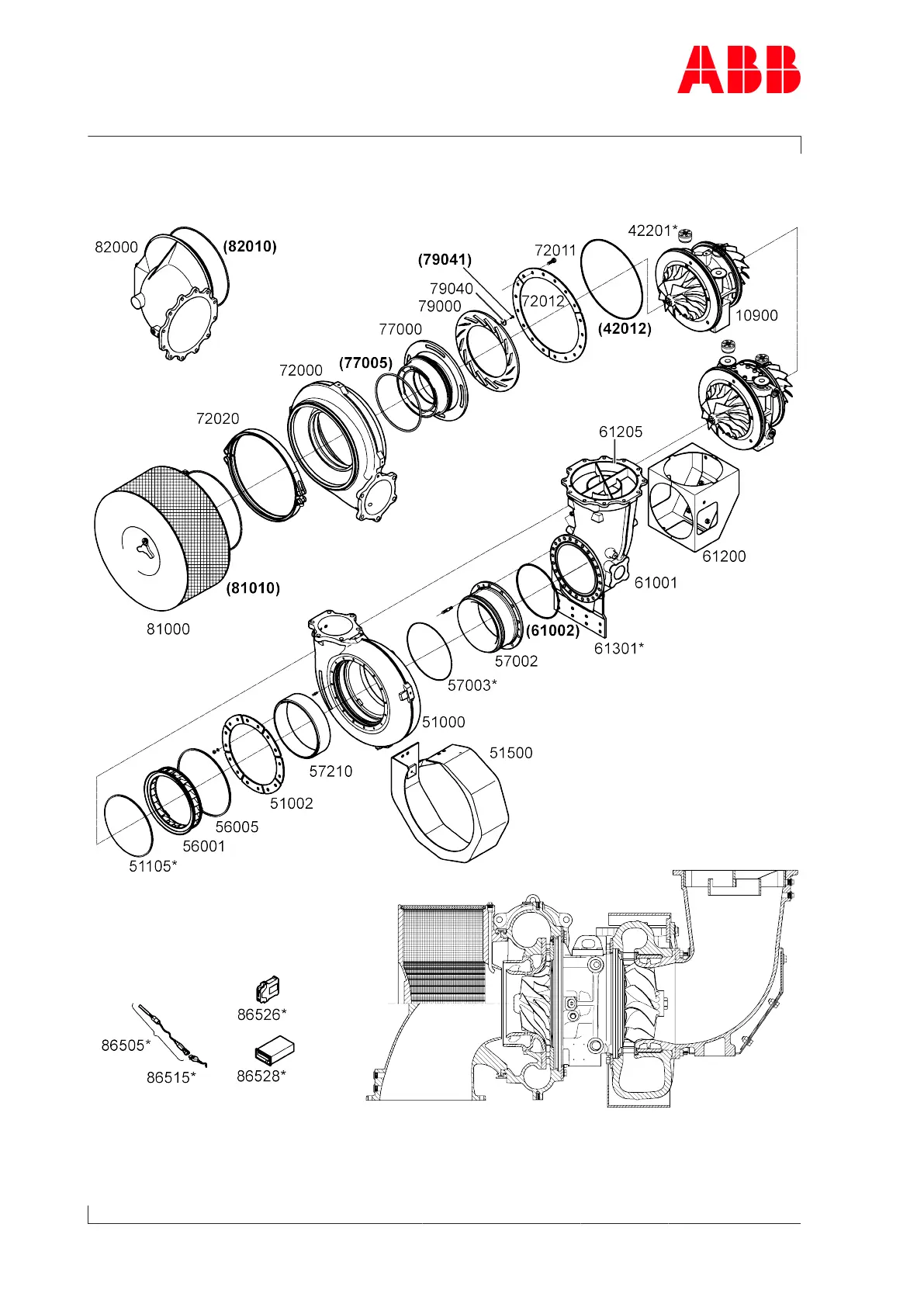

Fig.60: Overview of part numbers

(……) only available in customer spare part set (97070).
