ABB A145-M65 - Fig. 57: Tightening Torques for Insulation; Table 47: Tightening Torques for Insulation

Operation Manual / 4 Product description / A130-M.. - A145-M..
8 Dismantling and fitting / 8.20 Table of tightening torques
© Copyright 2017 ABB. All rights reserved. HZTL4031_EN Revision F August 2017

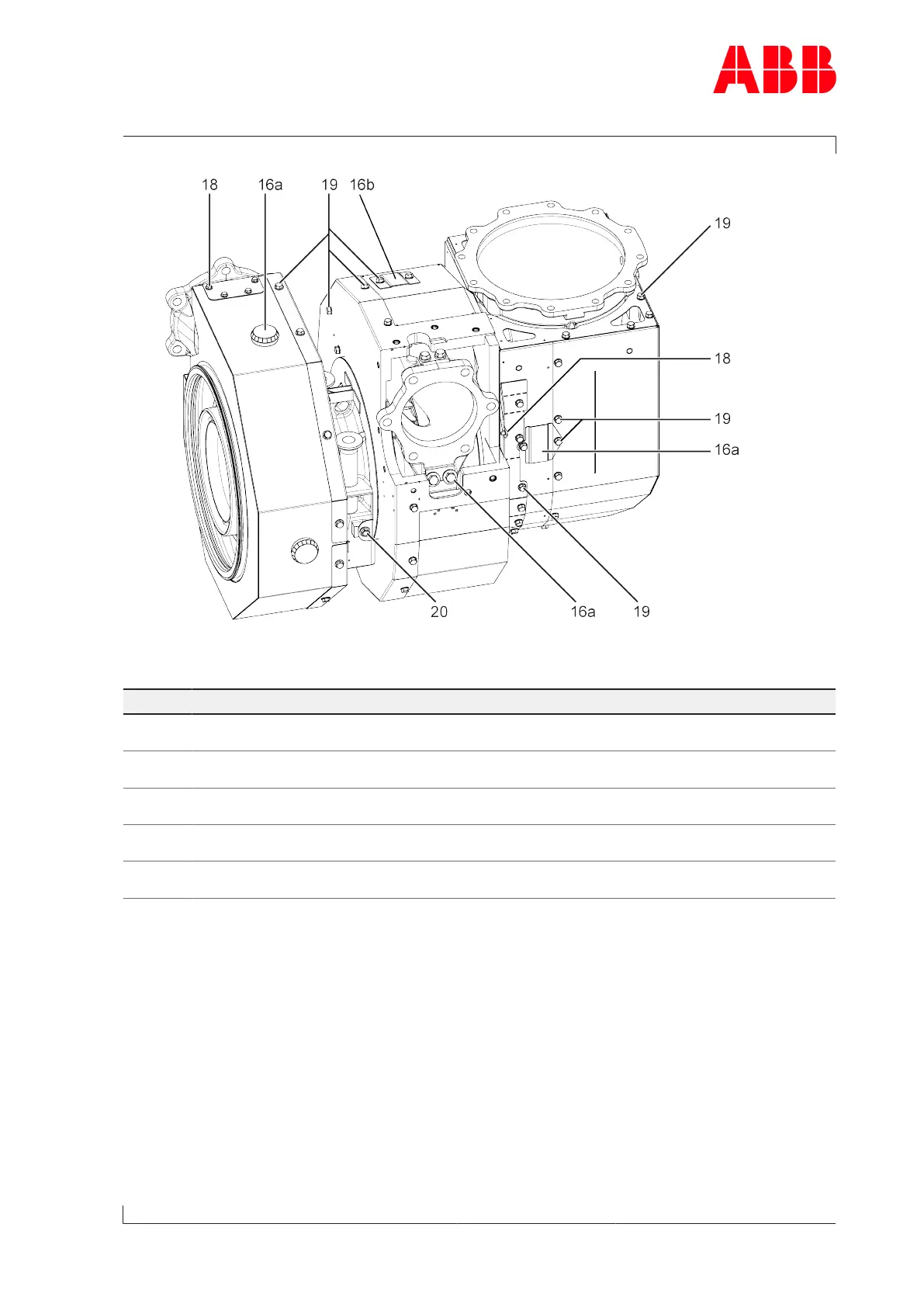

Fig.57: Tightening torques for insulation
The following tightening torques must be observed for the specified screw connections:
Position Part number A130 A135 A140 A145
16a / 16b
1)
-- M10
40Nm
M10
40Nm
M12
65Nm
M12
65Nm
16b
2)
- - M8
20Nm
M8
20Nm
M10
40Nm
M10
40Nm
18 - - M6
10Nm
M6
10Nm
M6
10Nm
M6
10Nm
19 - - M8
25Nm
M8
25Nm
M8
25Nm
M8
25Nm
20 - - M10
45Nm
M10
45Nm
M10
45Nm
M10
45Nm
Table47: Tightening torques for insulation
1)
Tightening torque for attaching the insulation with integrated burst protection at the tur-
bine casing
2)
Tightening torque for attaching the insulation to the burst protection.
Page 99 / 111
