2 Removing and Installing
2.1 Turbocharger weight and transportation
Lifting gear with a sufficient load limit must be used for removing and installing the tur-
bocharger. The following weight specification applies to the heaviest variant possible. De-
pending on the specification, the weight specified on the rating plate may be lower than the
standard value specified here.
Product Weights [kg]
A130-M 210
A135-M 300
A140-M 500
A145-M 850
Table2: Weights of turbochargers A130-M.. – A145-M..

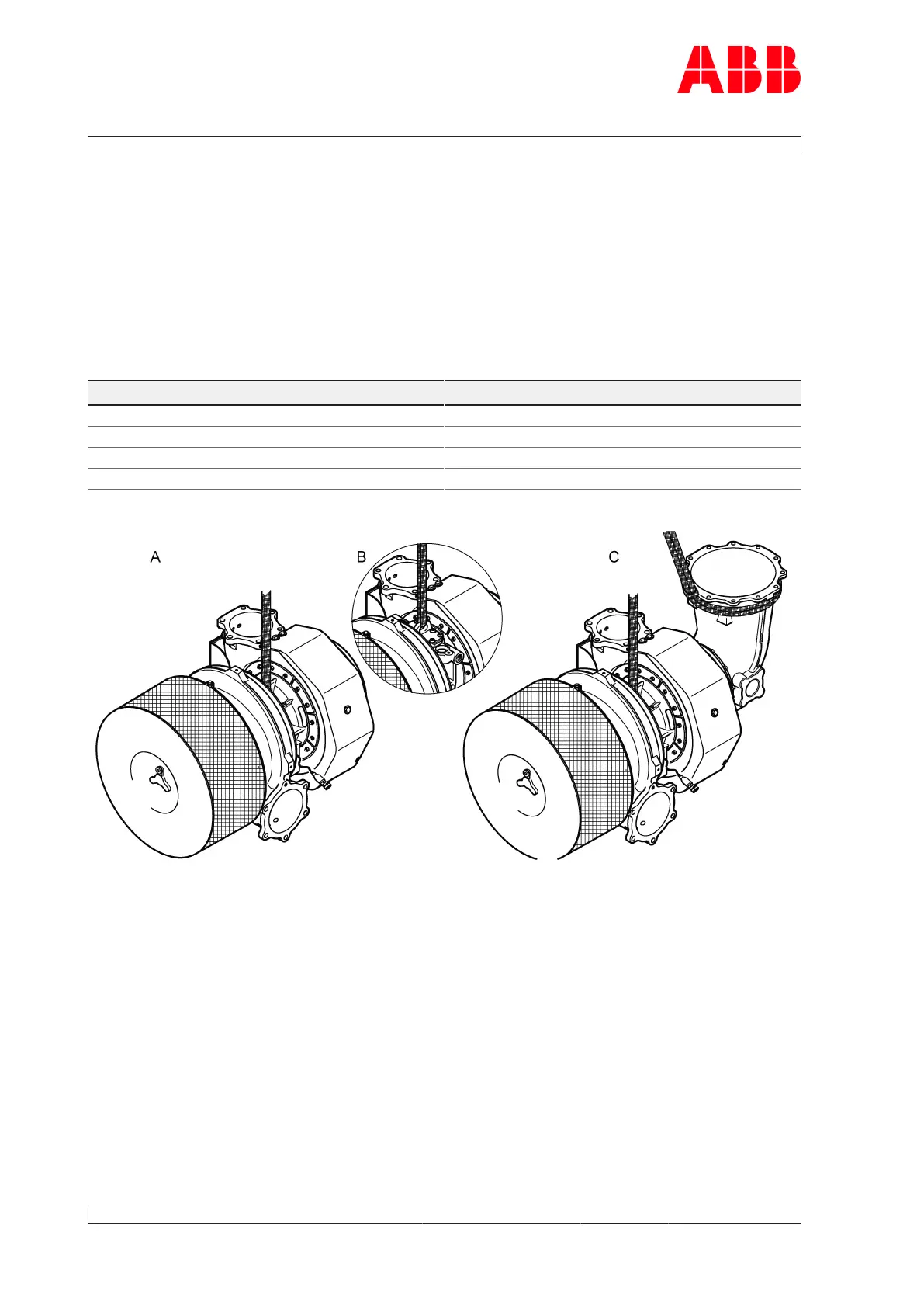

Fig.5: Suspension of complete turbocharger unit
A Turbocharger with oil-cooled bearing casing
B Turbocharger with water-cooled bearing casing
C Complete turbocharger unit with gas outlet casing
