8.12 Nozzle ring compression PD
For the nozzle ring (56001) to be fixed during operation, it must be clamped between the
heat shield (42400) and the turbine casing (51000).

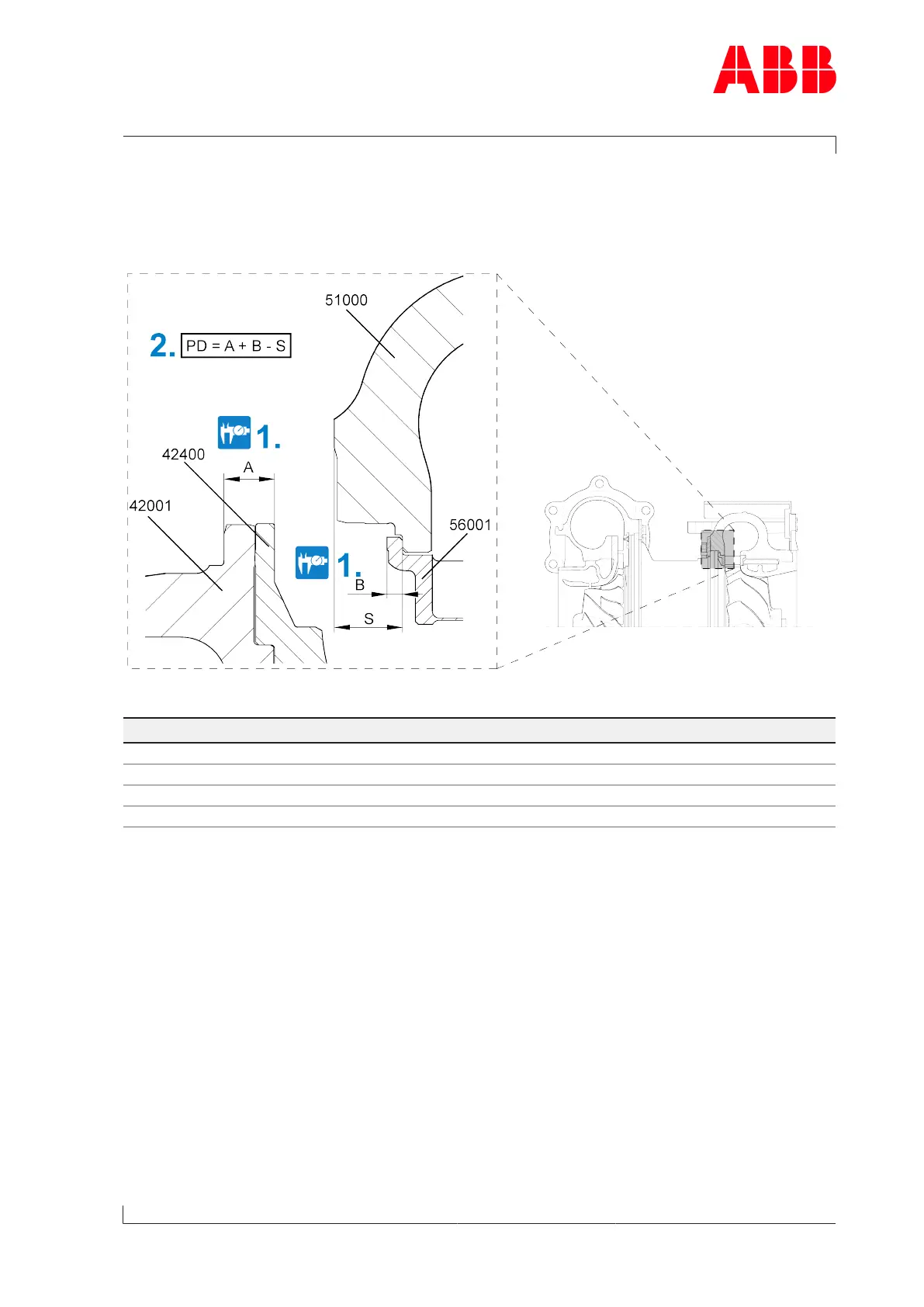

Fig.44: Nozzle ring compression PD
Product Compression PD [mm]
A130 -0.15 ... 0.15
A135 -0.16 ... 0.16
A140 -0.16 ... 0.16
A145 -0.16 ... 0.16
Table39: Permitted nozzle ring compression PD
42001 Bearing casing 51000 Turbine casing
42400 Heat shield 56001 Nozzle ring
1. Measure dimensions A, B, and S on cleaned surfaces.
2. Calculate compression (PD).
u If the calculated value (PD) lies outside the specified range, contact an ABB Turbochar-
ging Service Station.
