ABB A145-M65 - Installing Air Inlets; Fig. 51: Installing the Air Inlets; Table 44: Tightening Torque (72020)

To Next Page

To Previous Page

Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.17 Installing air inlets

8.17 Installing air inlets

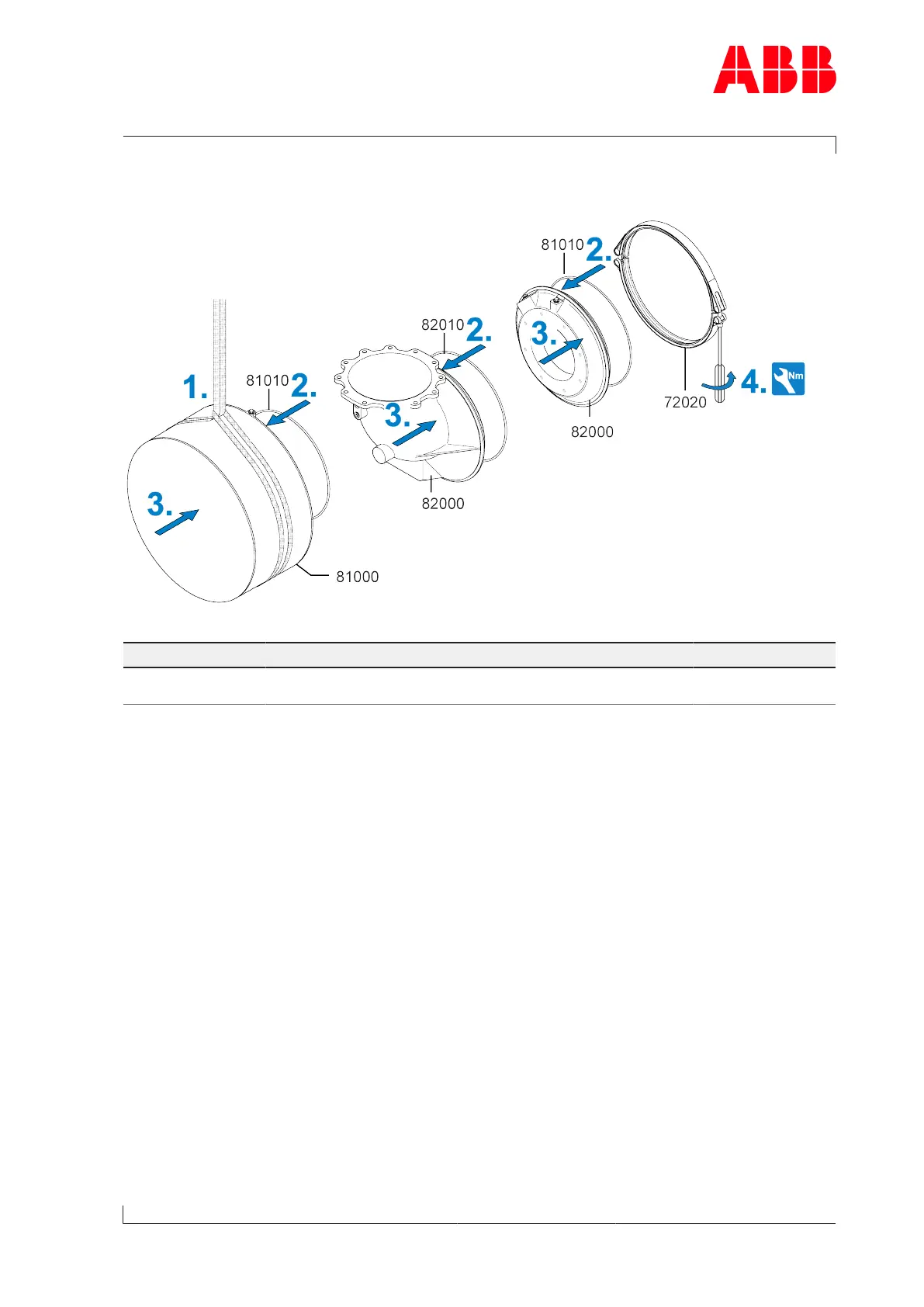

Fig.51: Installing the air inlets

Part number A130 A135 A140 A145

72020 M12

60Nm

M12

60Nm

M12

60Nm

M12

60Nm

Table44: Tightening torque (72020)

1. Secure lifting gear to filter silencer (81000).

2. Fit a new O-ring (81010) to the filter silencer (81000) or a new O-ring (82010) to the air

suction branch (82000).

3. Fit the filter silencer (81000) or air suction branch (82000) with the V-clamp (72020).

4. Observe the tightening torque.
