Operation Manual / 4 Product description / A130-M.. - A145-M..
8 Dismantling and fitting / 8.1 Introduction
© Copyright 2017 ABB. All rights reserved. HZTL4031_EN Revision F August 2017
WARNING
Suspended loads
Loads that are not attached according to regulations can cause injury to
personnel or fatal accidents.
u Only fasten the turbocharger, assemblies or individual parts on properly
functional lifting gear with sufficient load limit.
u Pay attention to the correct attachment of loads on the crane hook.
u People must not stand beneath suspended loads.
Wear safety gloves to protect against mechanical hazards.
Wear safety helmet.
Definition of terms
¡ Suspension point
Defined loading point on a component or an assembly (blind hole thread, eyelet, lug).
¡ Assembly device
Devices that are fitted on the turbocharger in order to obtain a suspension point. As-
sembly devices are specially constructed and designed for the defined use; they are not
commercially available products. Use assembly devices only for the described applica-
tions.
¡ Lifting gear
Equipment for the lifting and transporting of loads (ropes, chain block, crane). Lifting
gear is not supplied by ABB.

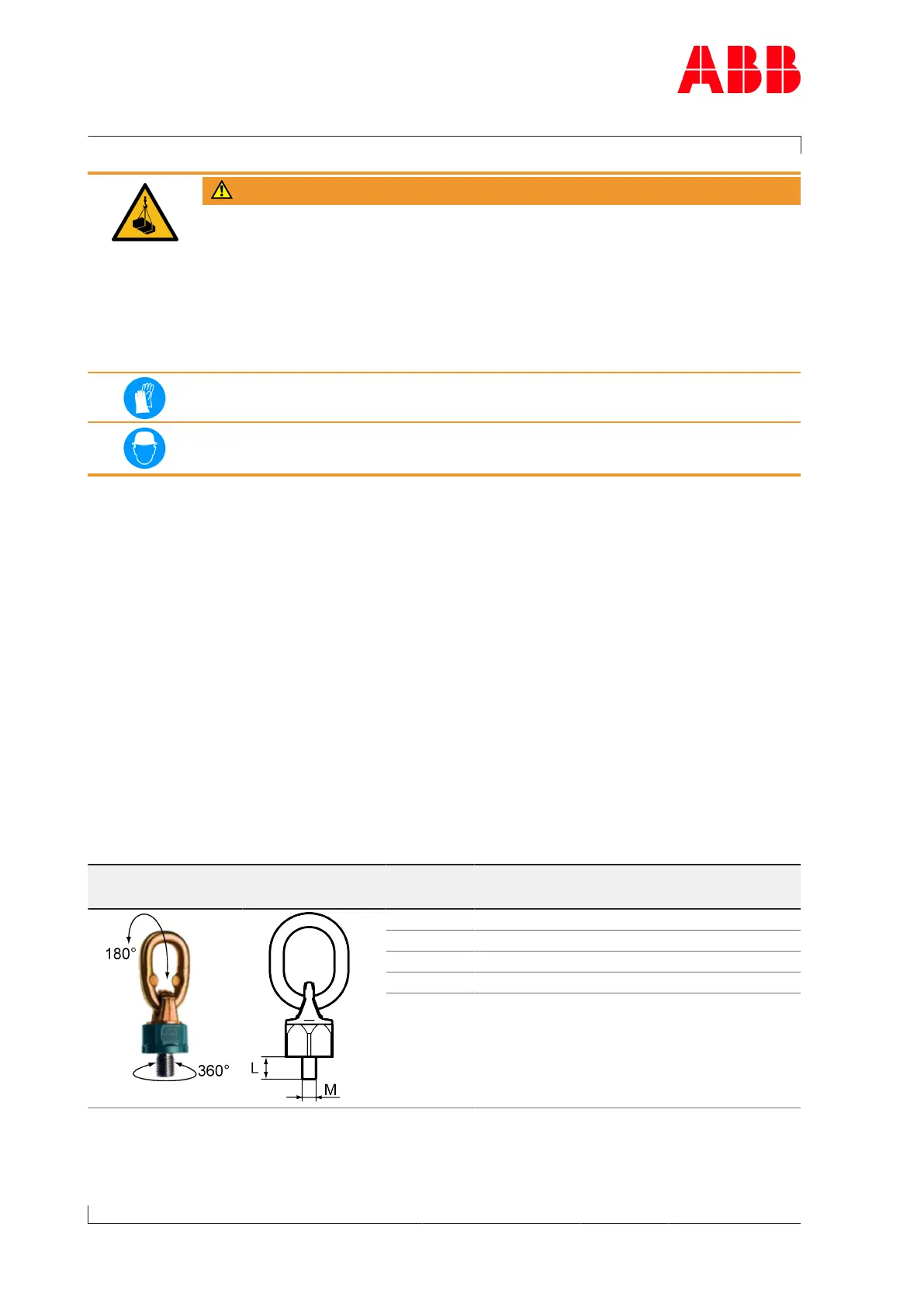

Swivel lifting eyes to be used
Two swivel lifting eyes are required for the safe lifting of loads, which are not supplied by
ABB Turbo Systems.
Swivel lifting eyes Product Thread
M
Length
L
Minimum
load limit
Quantity
A130 M10 17 mm 100 kg 2
A135 M10 17 mm 150 kg 2
A140 M12 21 mm 250 kg 2
A145 M12 21 mm 300 kg 2
Table33: Swivel lifting eyes
Page 68 / 111
