8.15 Installing the compressor casing

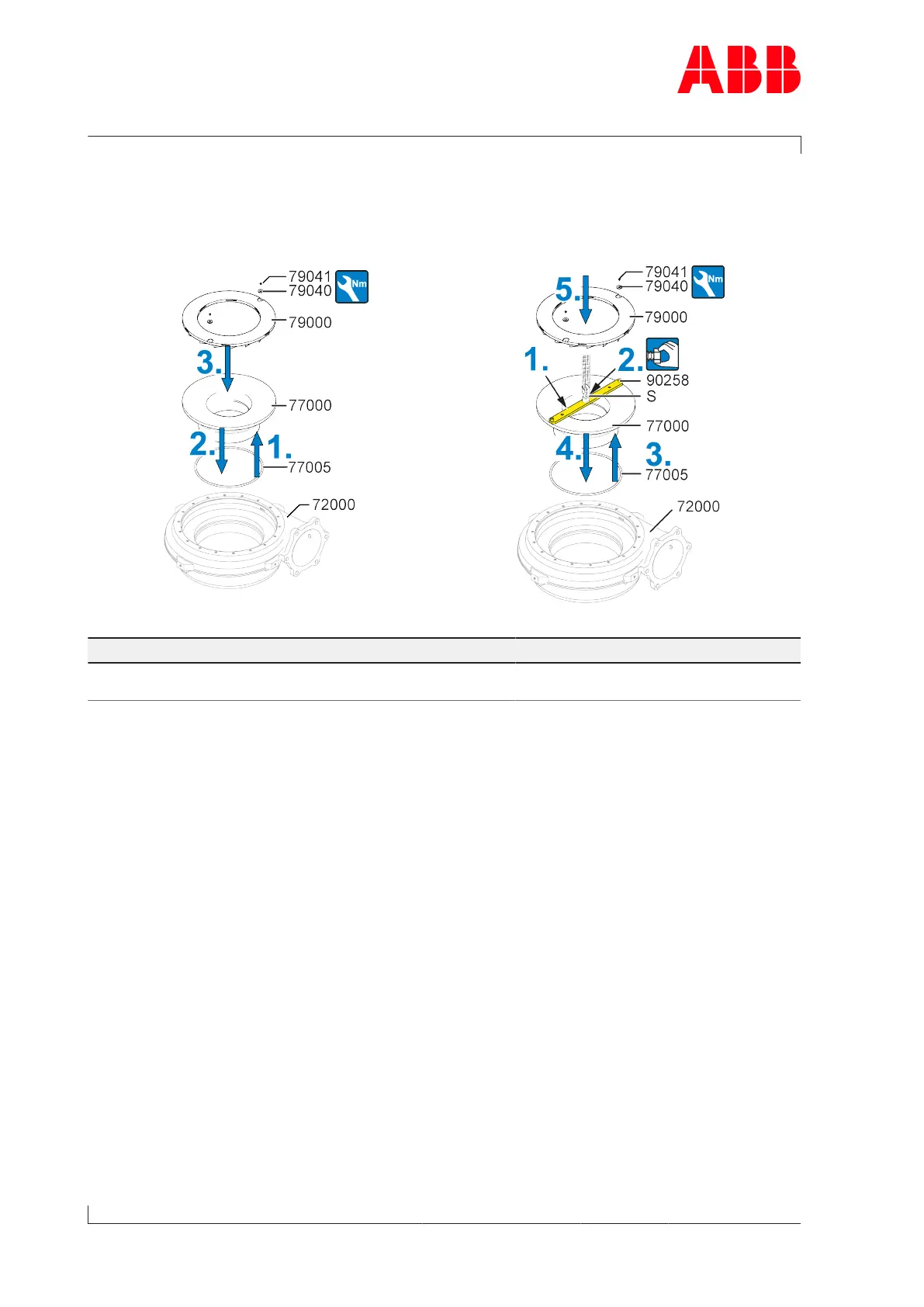

Fitting the wall insert and the diffuser
A130 - A140 A145
Part number A130 A135 A140 A145
79041 M6
8Nm
M6
8Nm
M6
8Nm
M6
8Nm
Table41: Tightening torque (79041)
u Always replace the O-ring(77005) (see section Spare parts).
A130 - A140
1. Fit a new O-ring (77005).
2. Install the wall insert (77000) in the compressor casing.
3. Fit the diffuser(79000) with fixing discs (79040) and screws (79041). Observe the tight-
ening torque.
A145
1. Fit the lifting beam (90258) to the wall insert (77000).
2. Fit the swivel lifting eye(S) to the lifting beam. Secure lifting gear to the swivel lifting
eye.
3. Fit a new O-ring (77005).
4. Install the wall insert (77000) in the compressor casing.
5. Fit the diffuser(79000) with fixing discs (79040) and screws (79041). Observe the tight-
ening torque.
