Operation Manual / 4 Product description / A130-M.. - A145-M..

9 Taking out of operation at short notice / 9.5 Cover plate drawing

9.5 Cover plate drawing

The cover plate is not included in the ABB Turbo Systems scope of delivery and must be

manufactured by the operating company according to the following drawing.

Material: General structural steel, in compliance with DINEN10025-2.

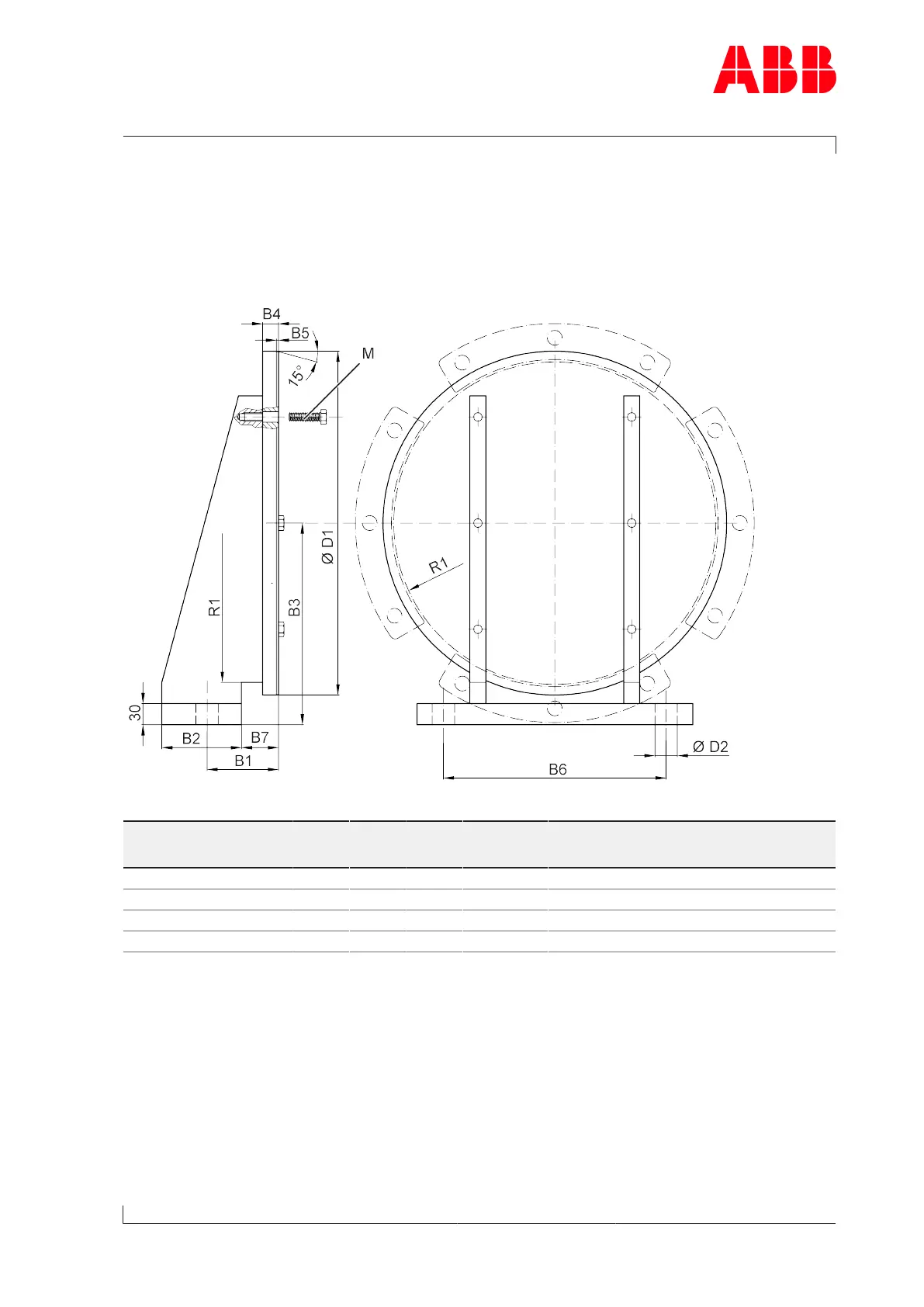

Fig.59: Cover plate drawing

Product B1

± 0.5

B2 B3 B4

± 0.2

B5 B6 B7 ØD1

± 0.2

ØD2 R1 M

A130 65.7 60 130 11.7 1.4 150 35.7 227.7 17 ≤105 M8

A135 79.6 80 155 14.2 1.6 180 39.6 271.7 21 ≤125 M8

A140 98.2 102 190 17.2 2.0 220 48.2 332.5 25 ≤153 M10

A145 116.8 120 226 20.5 2.4 260 56.8 395.9 31 ≤182 M10

Table48: Cover plate dimensions [mm]

Page 103 / 111
