ABB A145-M65 - Fig. 35: Dismantling the Wall Insert

To Next Page

To Previous Page

Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.6 Removing the compressor casing

Dismantling the wall insert

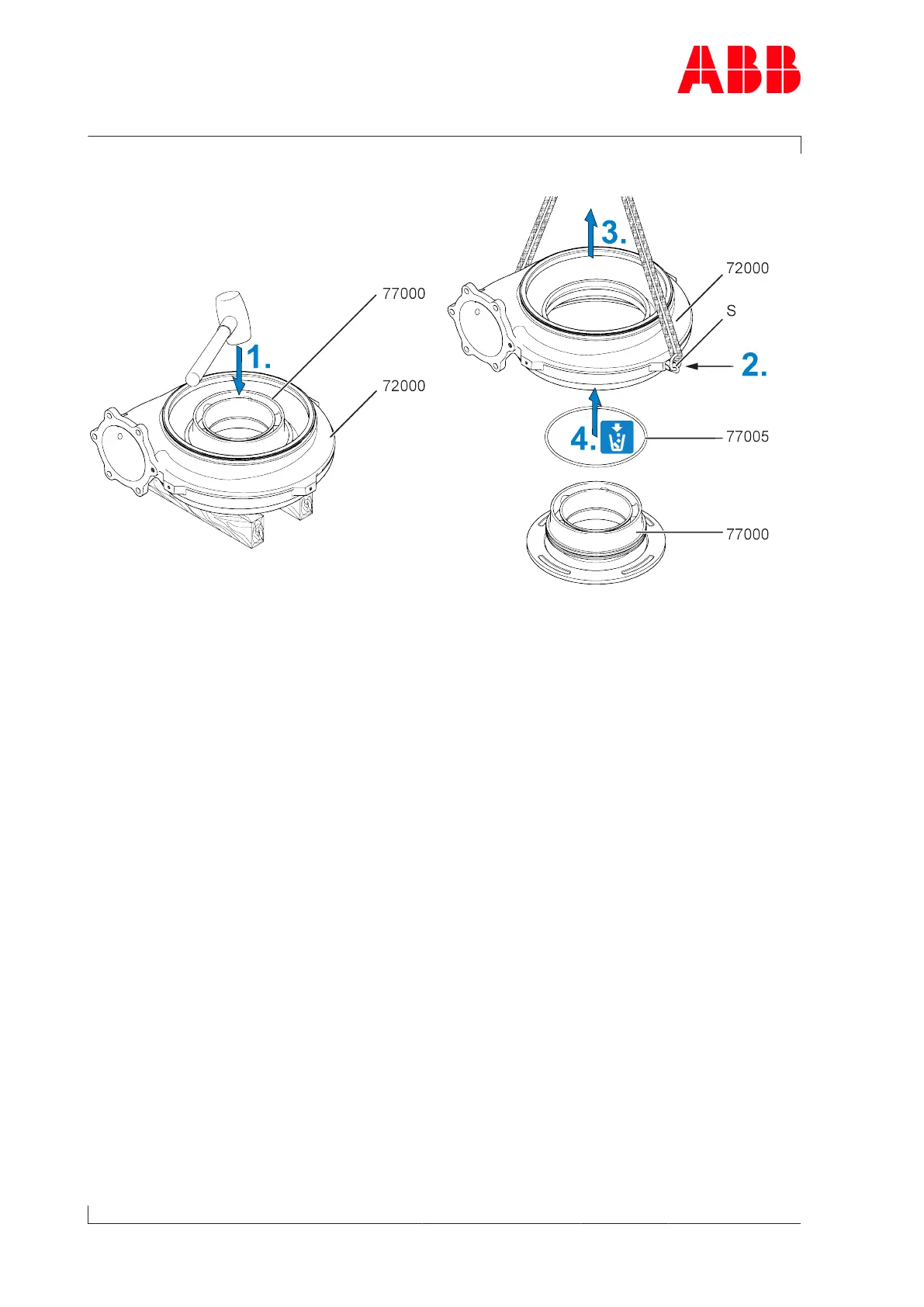

Fig.35: Dismantling the wall insert

1. Knock the wall insert (77000) out of the compressor casing (72000) with a plastic tip

hammer.

2. Attach swivel lifting eye (S) to the compressor casing (72000) and the lifting gear.

3. Lift up the compressor casing(72000).

4. Remove and dispose of the O-ring (77005).
