Operation Manual / 4 Product description / A130-M.. - A145-M..

8 Dismantling and fitting / 8.18 Installing the gas outlet flange

8.18 Installing the gas outlet flange

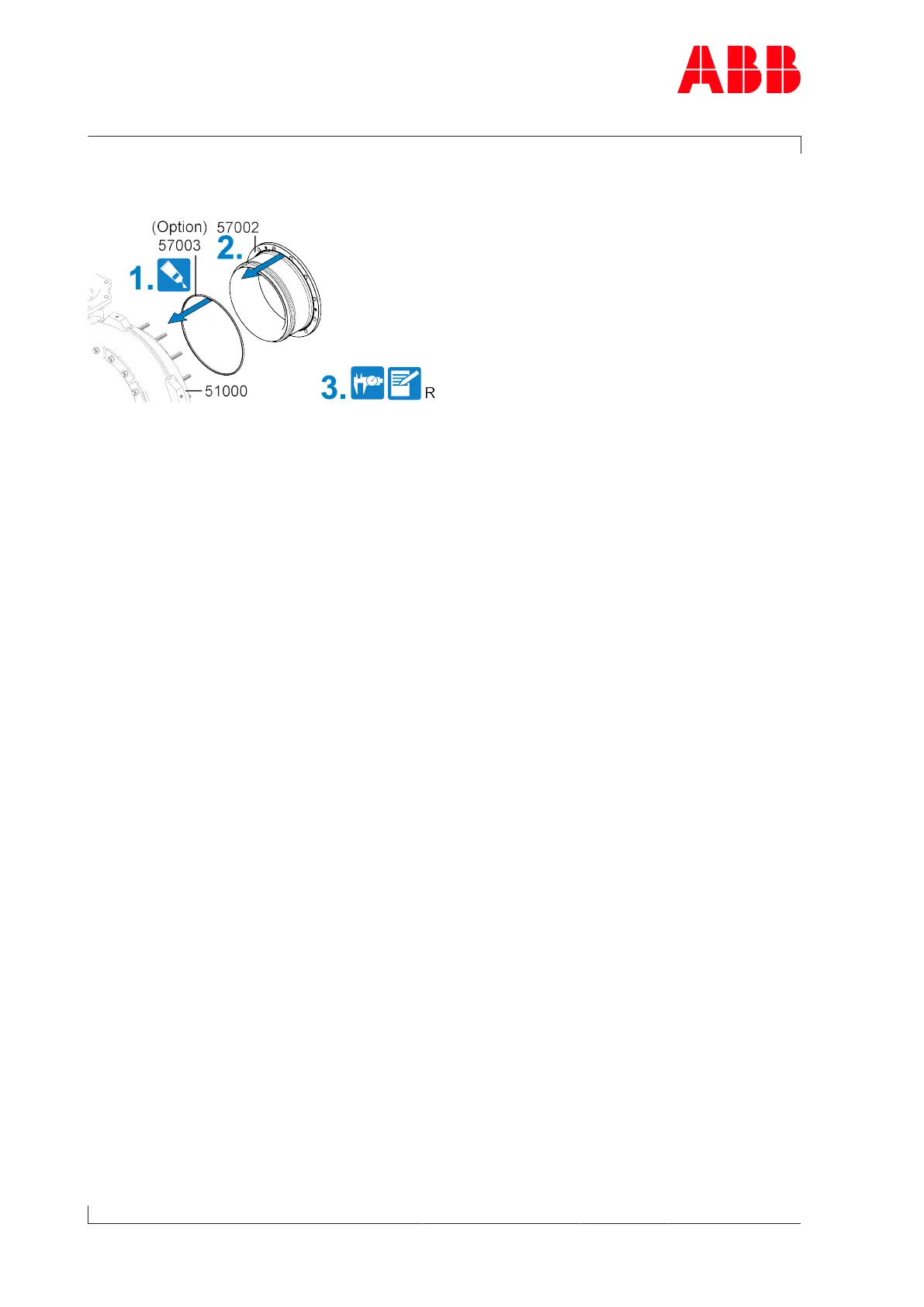

Fig.52: Installing the gas outlet flange

1. If present: Insert the metal C-ring (57003) into the turbine casing (51000) and secure with

high-vacuum grease.

2. Install the gas outlet flange (57002) in the turbine casing.

3. Measure radial clearance (R) (see chapter Radial clearances N and R).

Page 94 / 111
