Operation Manual / 4 Product description / A130-M.. - A145-M..

2 Removing and Installing / 2.2 Removing the turbocharger

2.2.3 Positioning the turbocharger for storage

WARNING

Risk of tipping

If the turbocharger is not positioned stably, it may tip over. This can result in

serious personal injury.

u Place the turbocharger on a clean, level support.

u Secure the turbocharger to prevent it from tipping over by using wooden

beams and wedges and by taking the centre of gravity into account.

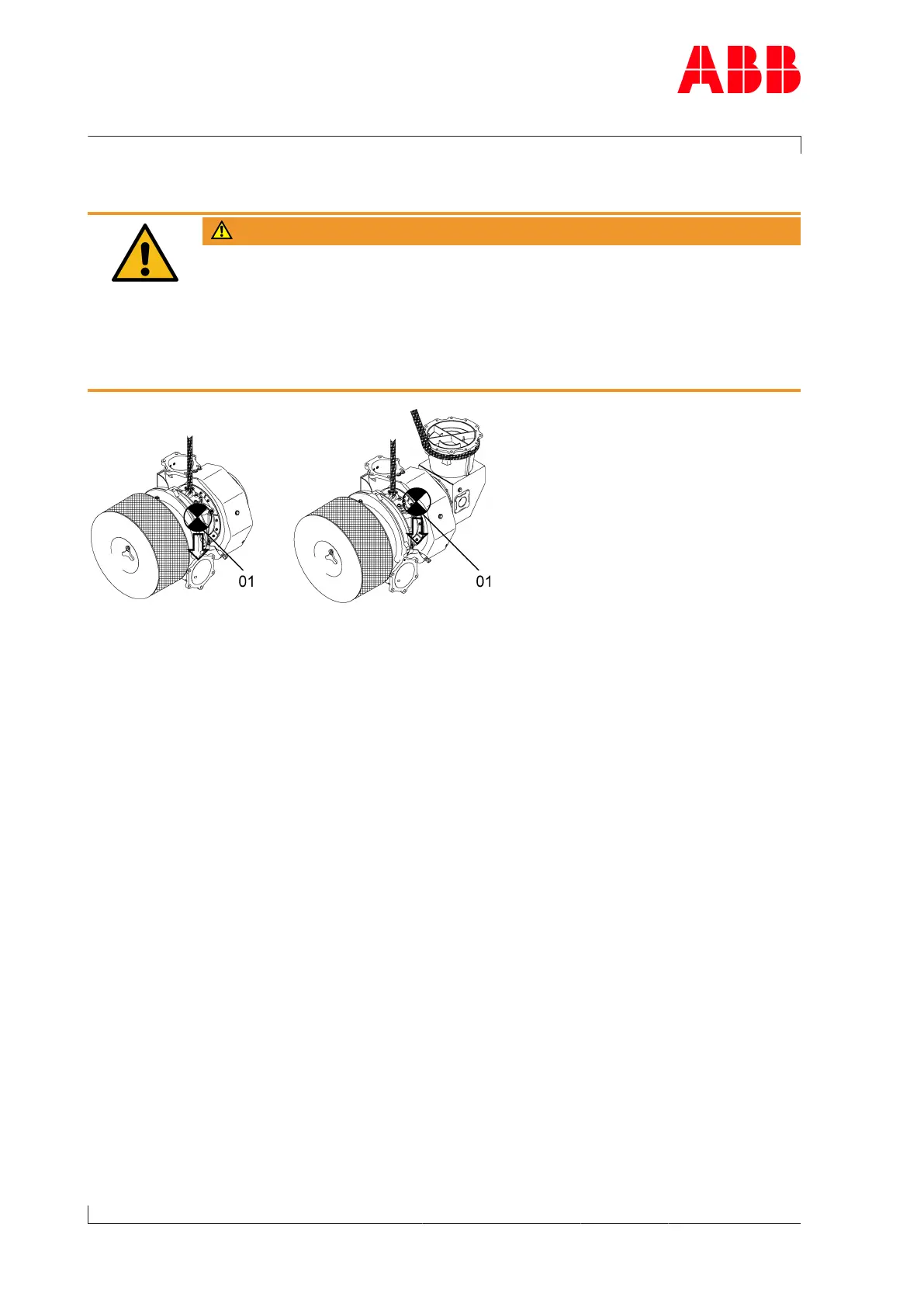

Fig.8: Turbocharger centre of gravity

01 Centre of gravity

u Remove turbocharger from engine support, set it down properly in an appropriate place

and secure it.

u Close or cover the openings of the turbocharger and support.

Page 12 / 111
