ABB ACH480 - Multiple ACH480 drives, internal power supply

264 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

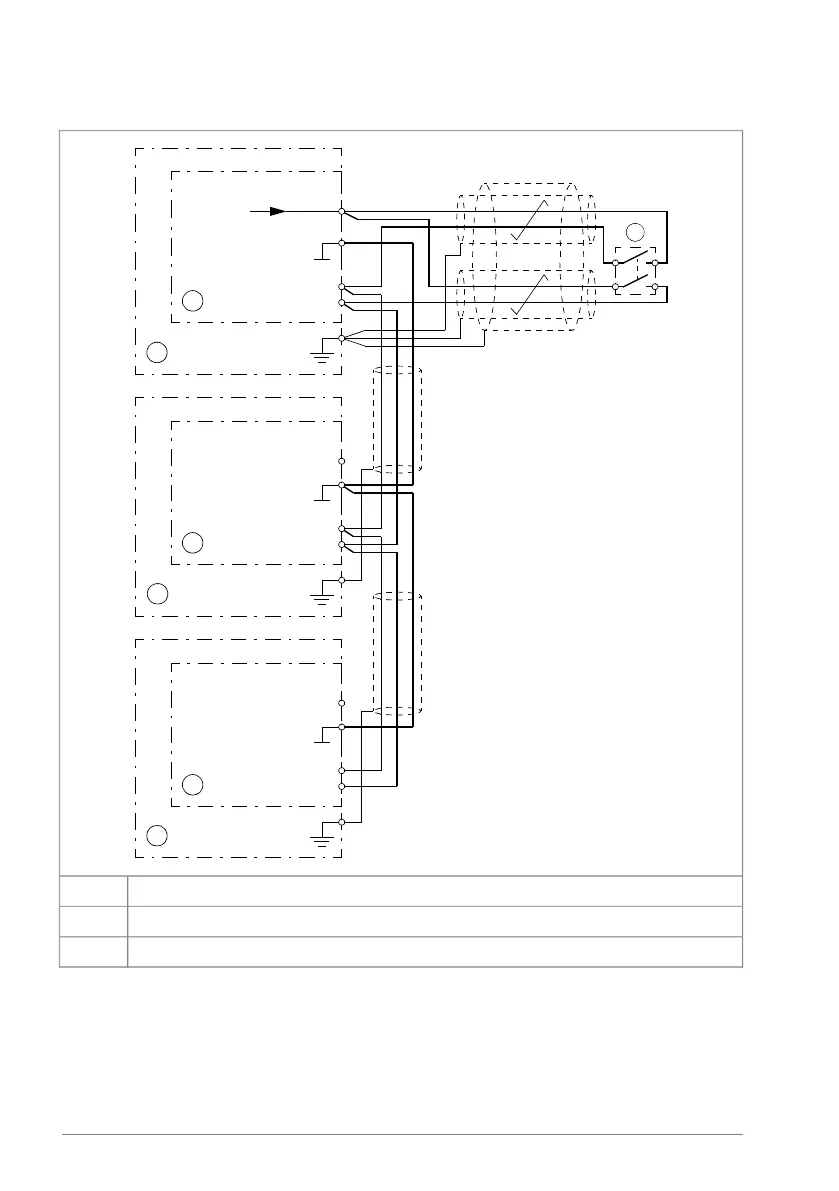

Multiple ACH480 drives, internal power supply

+24 V

OUT1

SGND

IN1

IN2

OUT1

SGND

IN1

IN2

OUT1

SGND

IN1

IN2

K

1

1

1

2

2

2

Drive1

Control unit2

Activation switchK

232 The Safe torque off function
