Parameters 105
30.36 Speed limit
selection
Selects a source that switches between two different
predefined adjustable speed limit sets.
0 = minimum speed limit defined by 30.11 and maximum
speed limit defined by 30.12 are active
1 = minimum speed limit selected by 30.37 and maximum
speed limit defined by 30.38 are active.
The user can define two sets of speed limits, and switch
between the sets using a binary source such as a digital
input.
The user can define two sets of speed limits, and switch
between the sets using a binary source such as a digital
input.
The first set of limits is defined by parameters 30.11 Minimum
speed and 30.12 Maximum speed. The second set has
selector parameters for both the minimum (30.37) and
maximum (30.38) limits that allows the use of a selectable
analog source (such as an analog input).
Not selected
Not selected Adjustable speed limits are disabled.
(Minimum speed limit defined by 30.11 Minimum speed and
maximum speed limit defined by 30.12 Maximum speed are
active).
0
Selected Adjustable speed limits are enabled.
(Minimum speed limit defined by 30.37 Min speed source
source and maximum speed limit defined by 30.38 Max
speed source are active).
1
Ext1 active Adjustable speed limits are enabled if EXT1 is active. 2
Ext2 active Adjustable speed limits are enabled if EXT2 is active. 3
Torque control Adjustable speed limits are enabled if Torque control mode
(vector motor control) is active.
4
DI1 Digital input DI1 (10.02 DI delayed status, bit 0). 5
DI2 Digital input DI2 (10.02 DI delayed status, bit 1). 6
DI3 Digital input DI3 (10.02 DI delayed status, bit 2). 7
DI4 Digital input DI4 (10.02 DI delayed status, bit 3). 8
DI5 Digital input DI5 (10.02 DI delayed status, bit 4). 9
No. Name/Value Description Def/FbEq16
30.37
User-defined
minimum speed
limit
0
AI1
AI2
Minimum
speed
Other
0
AI1
AI2
Maximum
speed
Other
30.11
30.38
30.36
0
1
30.12
30.36
0
1
User-defined
maximum speed
limit

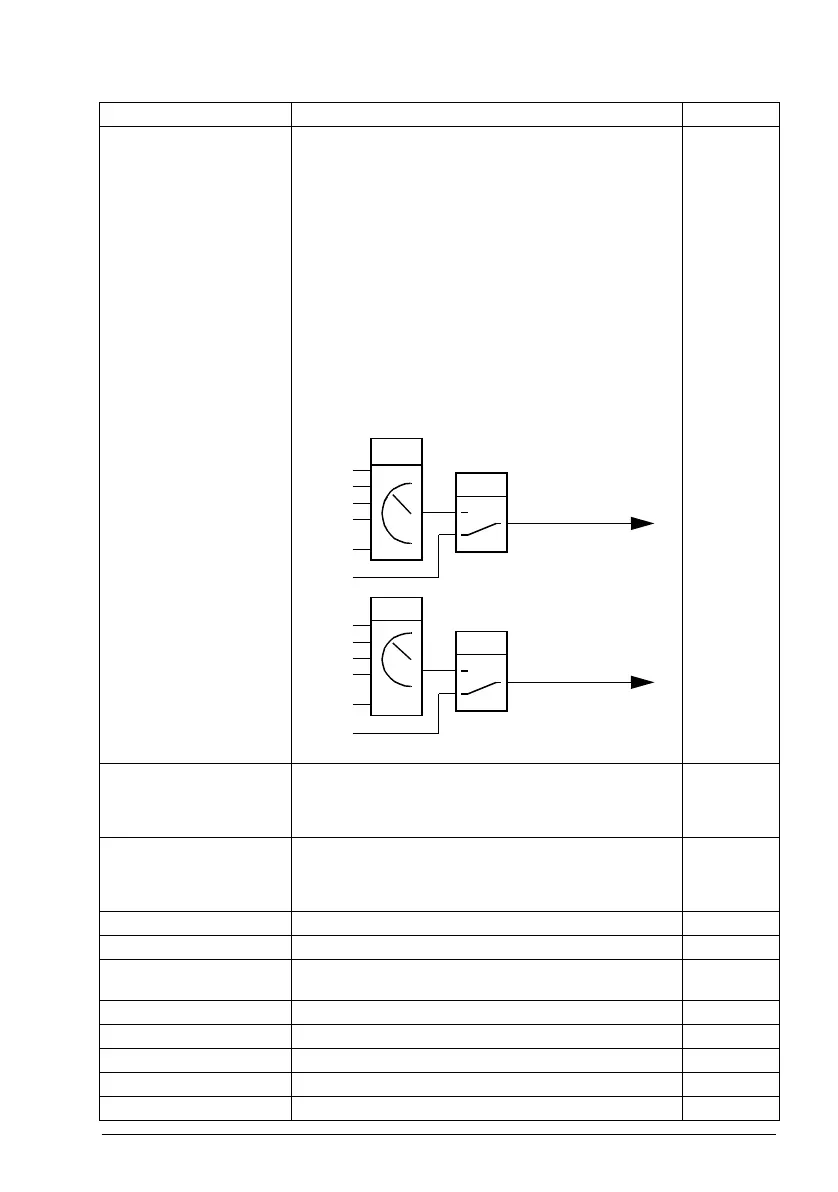

ACQ80 FW.book Page 105 Thursday, February 14, 2019 11:33 AM
