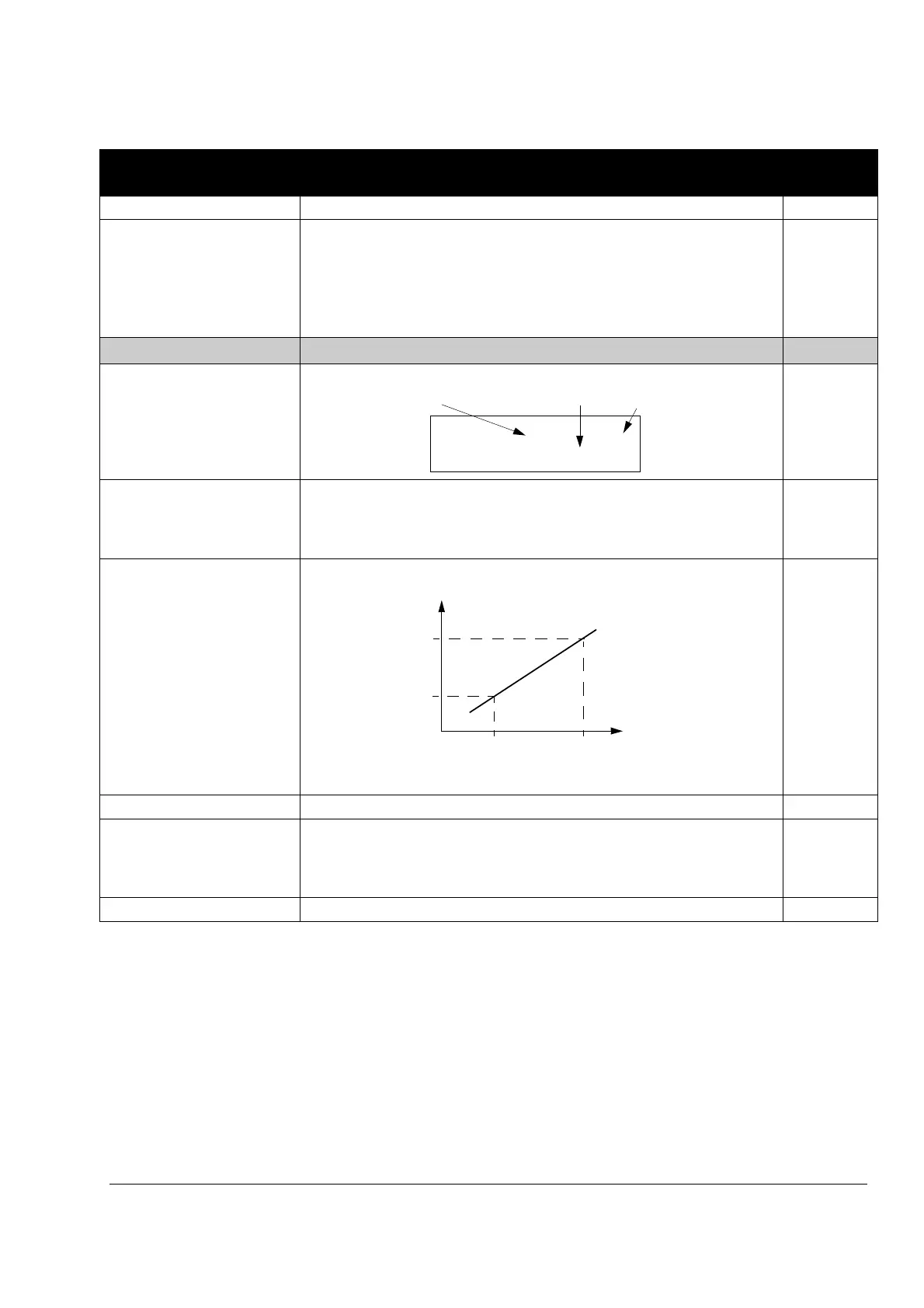

Actual signals and parameters
99
3304 DRIVE RATING Displays the drive current and voltage ratings. 0x0000
0x0000…0xFFFF
(hex)
Value in format XXXY:
XXX = Nominal current of the drive in Amperes. An “A” indicates decimal
point. For example if XXX is 8A8, nominal current is 8.8 A.
Y = Nominal voltage of the drive:
2 = 200…240 V
4 = 380…480 V
34 PANEL DISPLAY
Selection of actual signals to be displayed on the panel
3401 SIGNAL1 PARAM Selects the first signal to be displayed on the control panel in display mode. 103
0, 102…162 Parameter index in group 01 OPERATING DATA. E.g. 102 = 0101 SPEED.
If value is set to 0, no signal is selected.
If parameter 3401 SIGNAL1 PARAM, 3408 SIGNAL2 PARAM and 3415
SIGNAL3 PARAM values are all set to 0, n.A. is displayed.
3402 SIGNAL1 MIN Defines the minimum value for the signal selected by parameter 3401
SIGNAL1 PARAM.
Note: Parameter is not effective if parameter 3404 OUTPUT1 DSP FORM
setting is DIRECT.
-
x…x Setting range depends on parameter 3401 setting. -
3403 SIGNAL1 MAX Defines the maximum value for the signal selected by parameter 3401
SIGNAL1 PARAM. See the figure for parameter 3402 SIGNAL1 MIN.
Note: Parameter is not effective if parameter 3404 OUTPUT1 DSP FORM
setting is DIRECT.
-
x…x Setting range depends on parameter 3401 setting. -
Parameters in the Long Parameter mode
Index Name/Selection Description Def
LOC
Hz
OUTPUT FWD
491
.
3401
3404
3405
Source value
3407
3406
3403
3402
Display
value
