Mechanical installation
20
Delivery check
Check that there are no signs of damage. Notify the shipper immediately if damaged
components are found.
Before attempting installation and operation, check the information on the type
designation label of the drive to verify that the drive is of the correct type. The type
designation label is attached to the left side of the drive. An example label and
explanation of the label contents are shown below.
Before installation
The ACS150 may be installed on the wall or in a cabinet. Check the enclosure
requirements for the need to use the NEMA 1 option in wall installations (see chapter
Technical data).
The drive can be mounted in three different ways:
a) back mounting
b) side mounting
c) DIN rail mounting.
The drive must be installed in an upright position. Check the installation site
according to the requirements below. Refer to chapter Dimensions for frame details.
Requirements for the installation site
See chapter Technical data for the allowed operation conditions of the drive.
Wall
The wall should be as close to vertical and even as possible, of non-flammable
material and strong enough to carry the weight of the drive.
Floor
The floor/material below the installation should be non-flammable.
$&61($
,38/2SHQW\SH
OOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOO
N:+3 61<::5;;;;
8 a«9
OOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOO
, $ $)(581818
I «+]
8 a«89
, $PLQ
5R+6
I «+]

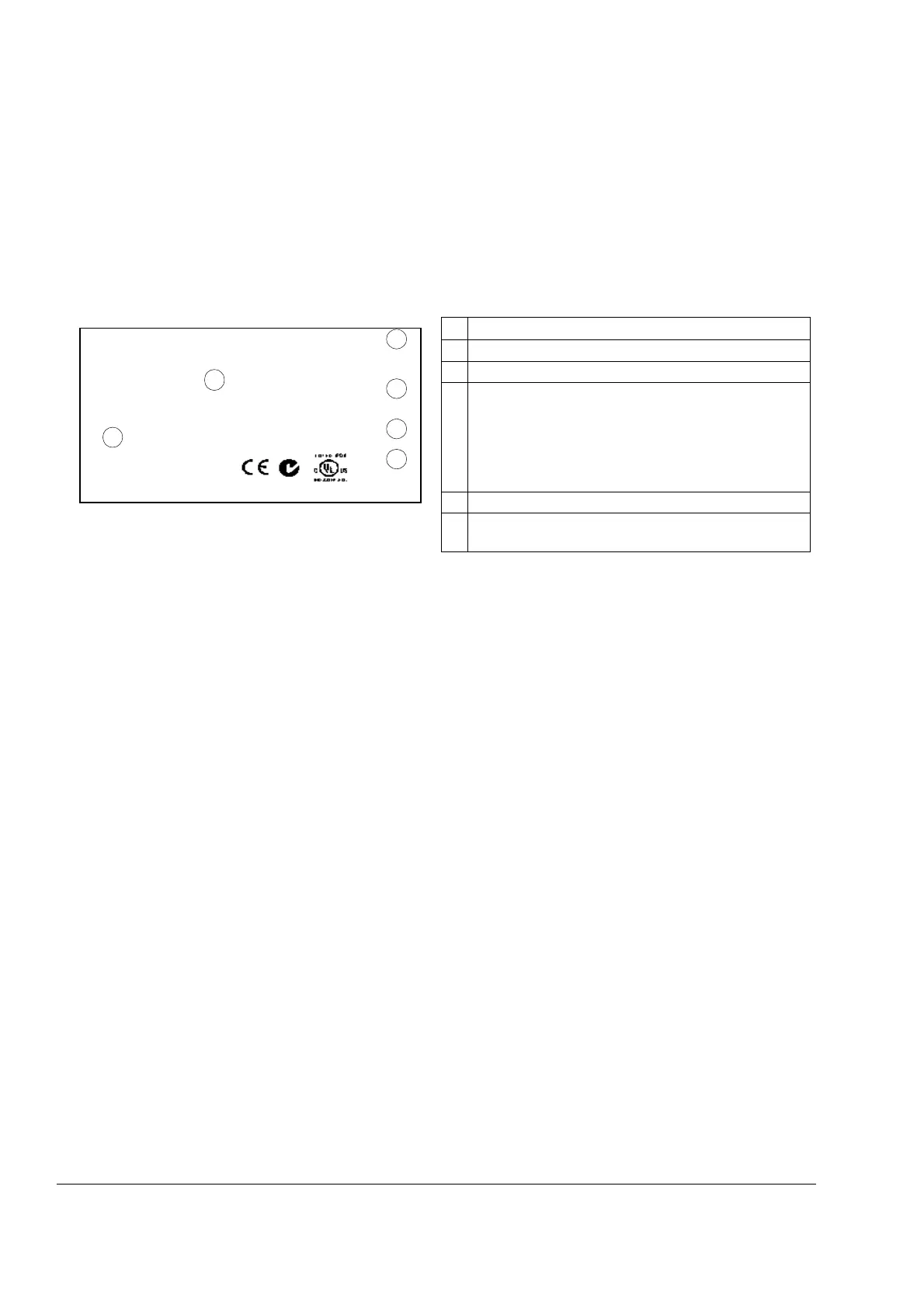

Type designation label
1 Type code, see section Type code on page 17
2 Degree of protection (IP and UL/NEMA)
3 Nominal ratings, see section Ratings on page 113 .
4 Serial number of format YWWRXXXXWS, where
Y: 5…9, A, … for 2005…2009, 2010, …
WW: 01, 02, 03, … for week 1, week 2, week 3, …
R: A, B, C, … for product revision number
XXXX: Integer starting every week from 0001
5 ABB MRP code of the drive
6 CE marking and C-Tick and C-UL US marks (the label
of your drive shows the valid markings)
2
3
4
5
1
6
