180 Parameters
10.03 DI force selection The electrical statuses of the digital inputs can be overridden
for e.g. testing purposes. A bit in parameter 10.04 DI forced
data is provided for each digital input, and its value is applied
whenever the corresponding bit in this parameter is 1.
Note: Boot and power cycle reset the force selections
(parameters 10.03 and 10.04).
0b0000
0b0000...0b1111 Override selec tion for digital inputs. 1 = 1
10.04 DI forced data Allows the data value of a forced digital input to be changed
from 0 to 1. It is only possible to force an input that has been
selected in parameter 10.03 DI force selection.
Bit 0 is the forced value for DI1; bit 5 is the forced value for
the DI6.
0b0000
0b0000...0b1111 Forced values of digi tal inputs. 1 = 1

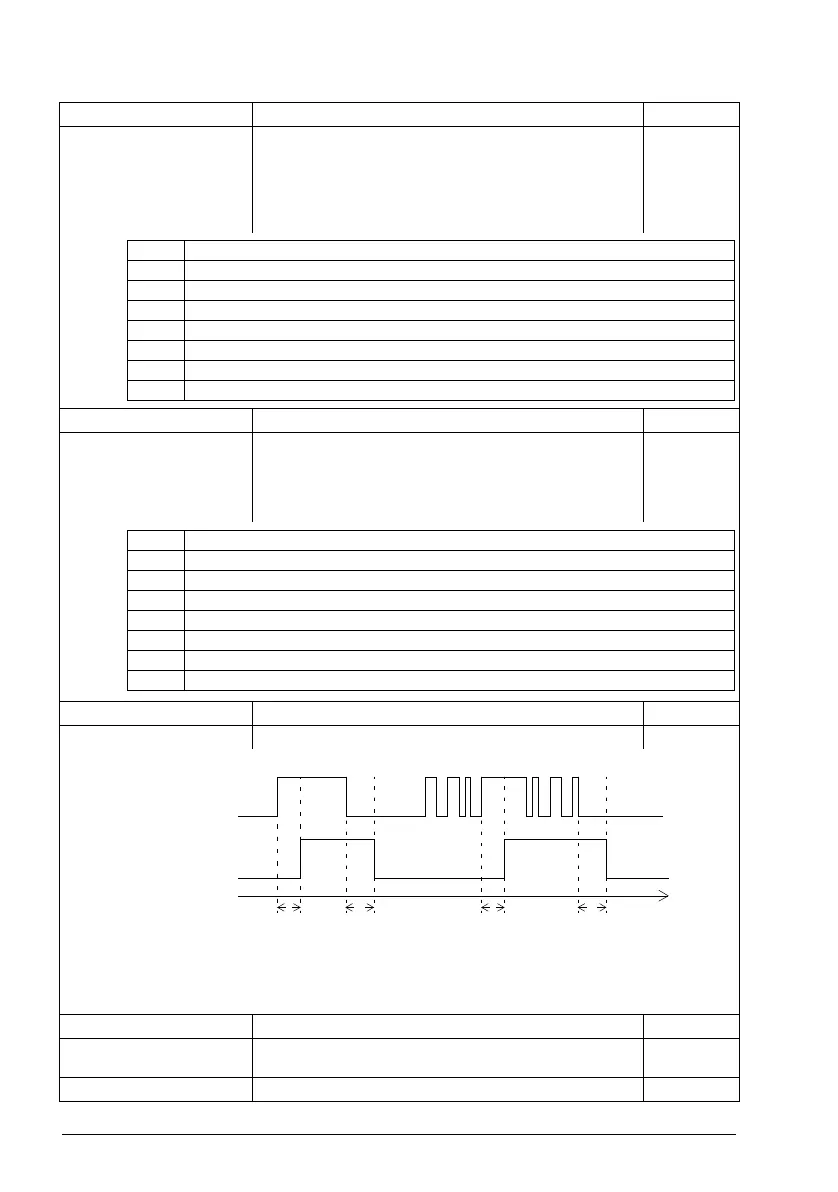

10.05 DI1 ON delay Defines the activation delay for digital input DI1. 0.0 s
t
On
= 10.05 DI1 ON delay
t
Off
= 10.06 DI1 OFF delay
*Electrical status of digital input. Indicated by 10.01 DI status.
**Indicated by 10.02 DI delayed status.
0.0 … 3000.0 s Activation delay for DI1. 10 = 1 s
10.06 DI1 OFF delay Defines the deactivation delay for digital input DI1. See
parameter 10.05 DI1 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for DI1. 10 = 1 s
No. Name/Value Description Def/FbEq16
Bit Value
0 1 = Force DI1 to value of bit 0 of parameter 10.04 DI forced data. (0 = Normal mode)
1 1 = Force DI2 to value of bit 1 of parameter 10.04 DI forced data. (0 = Normal mode)
2 1 = Force DI3 to value of bit 2 of parameter 10.04 DI forced data. (0 = Normal mode)
3 1 = Force DI4 to value of bit 3 of parameter 10.04 DI forced data. (0 = Normal mode)
4 1 = Force DI5 to value of bit 4 of parameter 10.04 DI forced data. (0 = Normal mode)
5 1 = Force DI6 to value of bit 5 of parameter 10.04 DI forced data. (0 = Normal mode)
6…15 Reserved
Bit Value
0 Force the value of this bit to D1, if so defined in parameter 10.03 DI force selection.
1 Force the value of this bit to D3, if so defined in parameter 10.03 DI force selection.
2 Force the value of this bit to D3, if so defined in parameter 10.03 DI force selection.
3 Force the value of this bit to D4, if so defined in parameter 10.03 DI force selection.
4 Force the value of this bit to D5, if so defined in parameter 10.03 DI force selection.
5 Force the value of this bit to D6, if so defined in parameter 10.03 DI force selection.
6…15 Reserved
1
0
1
0
t
On
t
Off
t
On
t
Off
*DI status
**Delayed DI status
Time
