Parameters 181

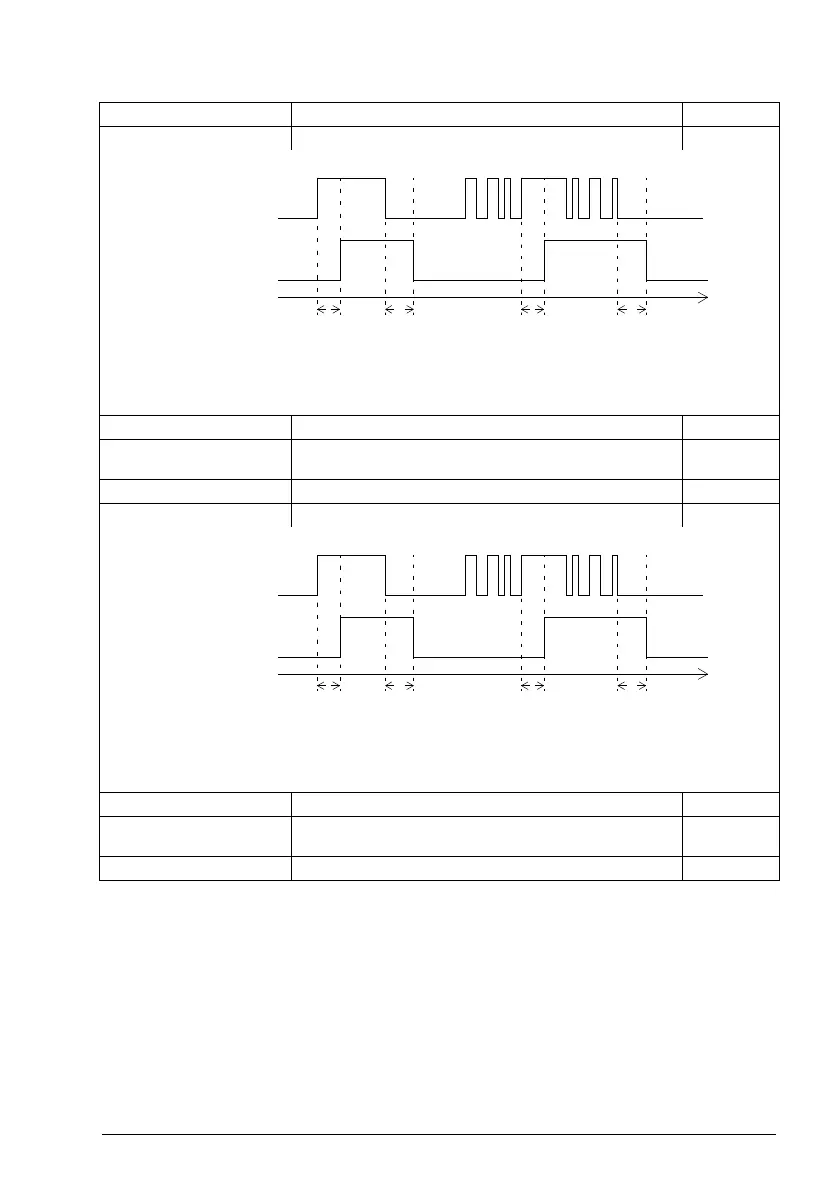

10.07 DI2 ON delay Defines the activation delay for digital input DI2. 0.0 s
t
On
= 10.07 DI2 ON delay
t
Off
= 10.08 DI2 OFF delay
*Electrical status of digital input. Indicated by 10.01 DI status.
**Indicated by 10.02 DI delayed status.
0.0 … 3000.0 s Activation delay for DI2. 10 = 1 s
10.08 DI2 OFF delay Defines the deactivation delay for digital input DI2. See
parameter 10.07 DI2 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for DI2. 10 = 1 s
10.09 DI3 ON delay Defines the activation delay for digital input DI3. 0.0 s
t
On
= 10.09 DI3 ON delay
t
Off
= 10.10 DI3 OFF delay
*Electrical status of digital input. Indicated by 10.01 DI status.
**Indicated by 10.02 DI delayed status.
0.0 … 3000.0 s Activation delay for DI3. 10 = 1 s
10.10 DI3 OFF delay Defines the deactivation delay for digital input DI3. See
parameter 10.09 DI3 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for DI3. 10 = 1 s
No. Name/Value Description Def/FbEq16
1
0
1
0
t
On
t
Off
t
On
t
Off
*DI status
**Delayed DI status
Time
1
0
1
0
t
On
t
Off
t
On
t
Off
*DI status
**Delayed DI status
Time
