182 Parameters
10.11 DI4 ON delay Defines the activation delay for digital input DI4. 0.0 s
t
On
= 10.11 DI4 ON delay
t
Off
= 10.12 DI4 OFF delay
*Electrical status of digital input. Indicated by 10.01 DI status.
**Indicated by 10.02 DI delayed status.
0.0 … 3000.0 s Activation delay for DI4. 10 = 1 s
10.12 DI4 OFF delay Defines the deactivation delay for digital input DI4. See
parameter 10.11 DI4 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for DI4. 10 = 1 s
10.13 DI5 ON delay Defines the activation delay for digital input DI5. 0.0 s
t
On
= 10.13 DI5 ON delay
t
Off
= 10.14 DI5 OFF delay
*Electrical status of digital input. Indicated by 10.01 DI status.
**Indicated by 10.02 DI delayed status.
0.0 … 3000.0 s Activation delay for DI5. 10 = 1 s
10.14 DI5 OFF delay Defines the deactivation delay for digital input DI5. See
parameter 10.13 DI5 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for DI5. 10 = 1 s
No. Name/Value Description Def/FbEq16
1
0
1
0
t
On
t
Off
t
On
t
Off

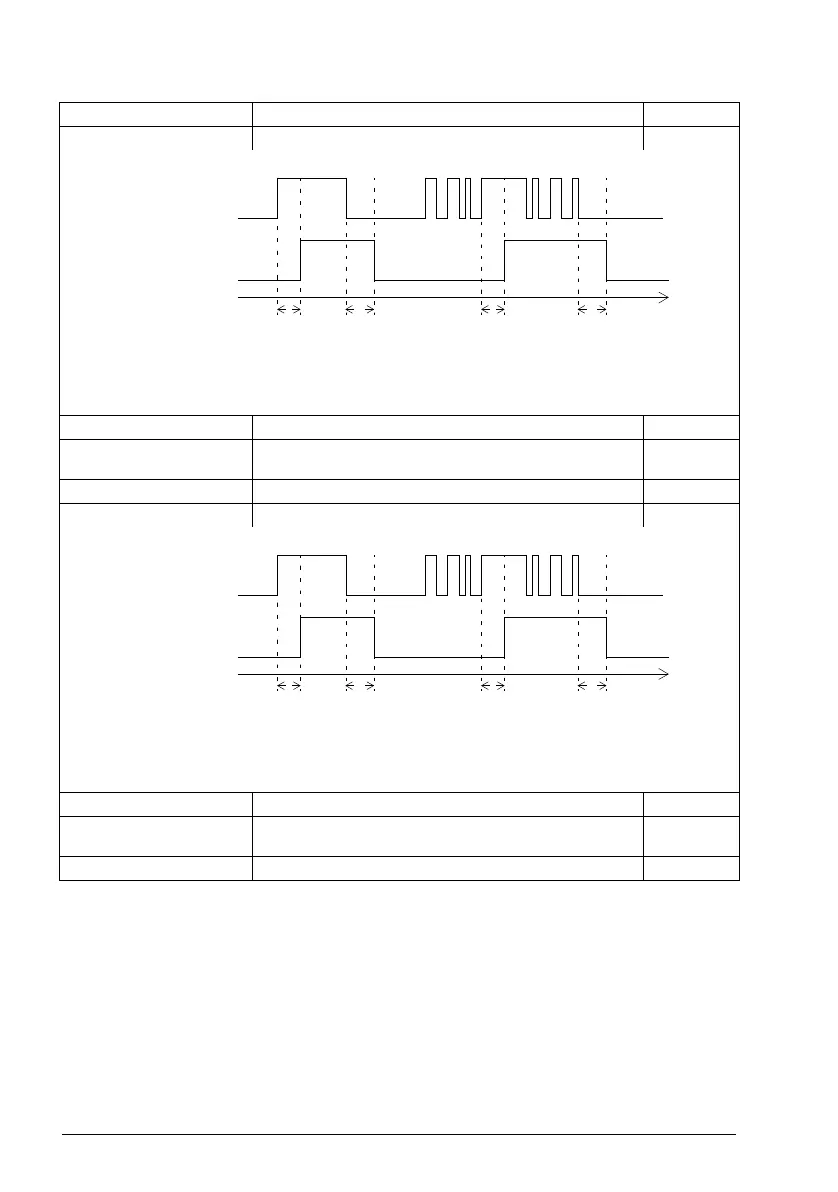

*DI status
**Delayed DI status
Time
1
0
1
0
t
On
t
Off
t
On
t
Off
*DI status
**Delayed DI status
Time
