Parameters 183

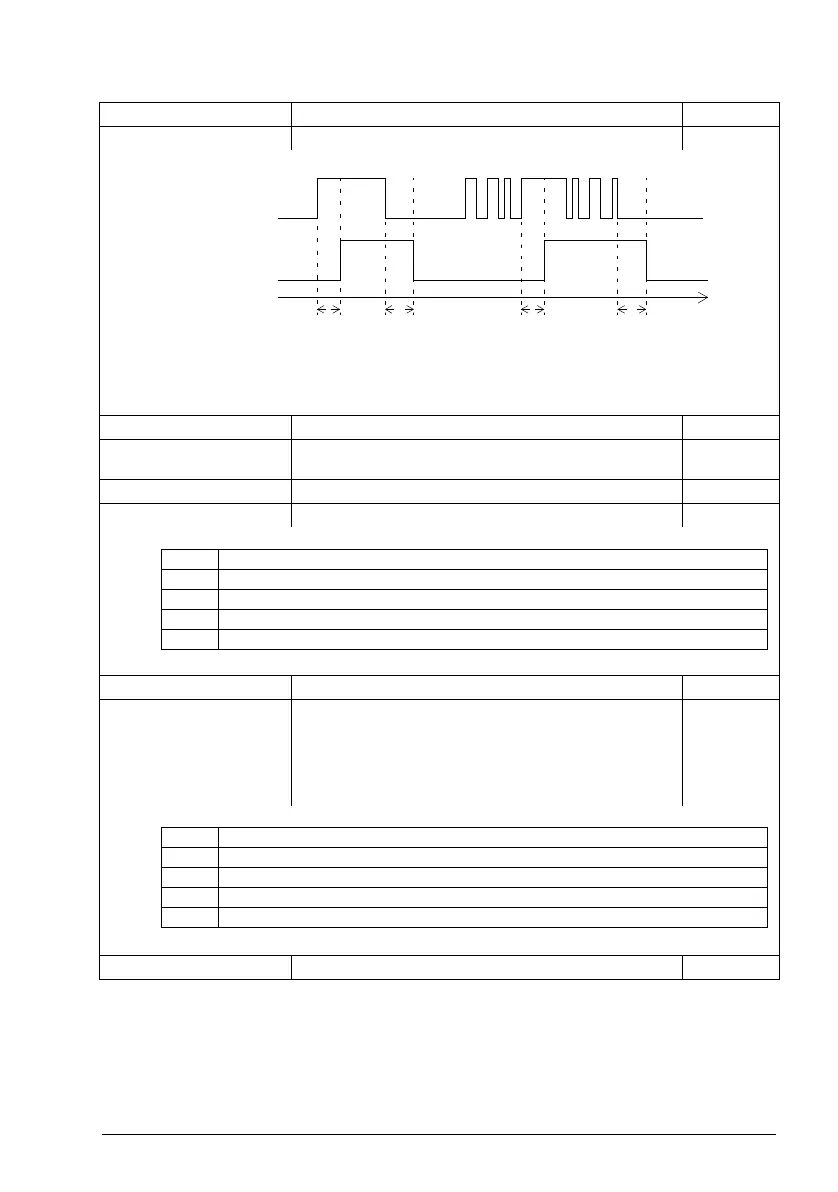

10.15 DI6 ON delay Defines the activation delay for digital input DI6. 0.0 s
t
On
= 10.15 DI6 ON delay
t
Off
= 10.16 DI6 OFF delay
*Electrical status of digital input. Indicated by 10.01 DI status.
**Indicated by 10.02 DI delayed status.
0.0 … 3000.0 s Activation delay for DI6. 10 = 1 s
10.16 DI6 OFF delay Defines the deactivation delay for digital input DI6. See
parameter 10.15 DI6 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for DI6. 10 = 1 s
10.21 RO status Status of relay outputs RO3…RO1. 0b0000
0b0000...0b1111 Status of relay outpu ts. 1 = 1
10.22 RO force selection The signals connected to the relay outputs can be overridden
for e.g. testing purposes. A bit in parameter 10.23 RO forced
data is provided for each relay output, and its value is applied
whenever the corresponding bit in this parameter is 1.
Note: Boot and power cycle reset the force selections
(parameters 10.22 and 10.23).
0b0000
0b0000...0b1111 Override selection fo r rel ay output s. 1 = 1
No. Name/Value Description Def/FbEq16
1
0
1
0
t
On
t
Off
t
On
t
Off
*DI status
**Delayed DI status
Time
Bit Value
0 1 = RO1 is energized.
1 1 = RO2 is energized.
2 1 = RO3 is energized.
3…15 Reserved
Bit Value
0 1 = Force RO1 to value of bit 0 of parameter 10.23 RO forced data. (0 = Normal mode)
1 1 = Force RO2 to value of bit 1 of parameter 10.23 RO forced data. (0 = Normal mode)
2 1 = Force RO3 to value of bit 2 of parameter 10.23 RO forced data. (0 = Normal mode)
3…15 Reserved
