22 Start-up, control with I/O and ID run

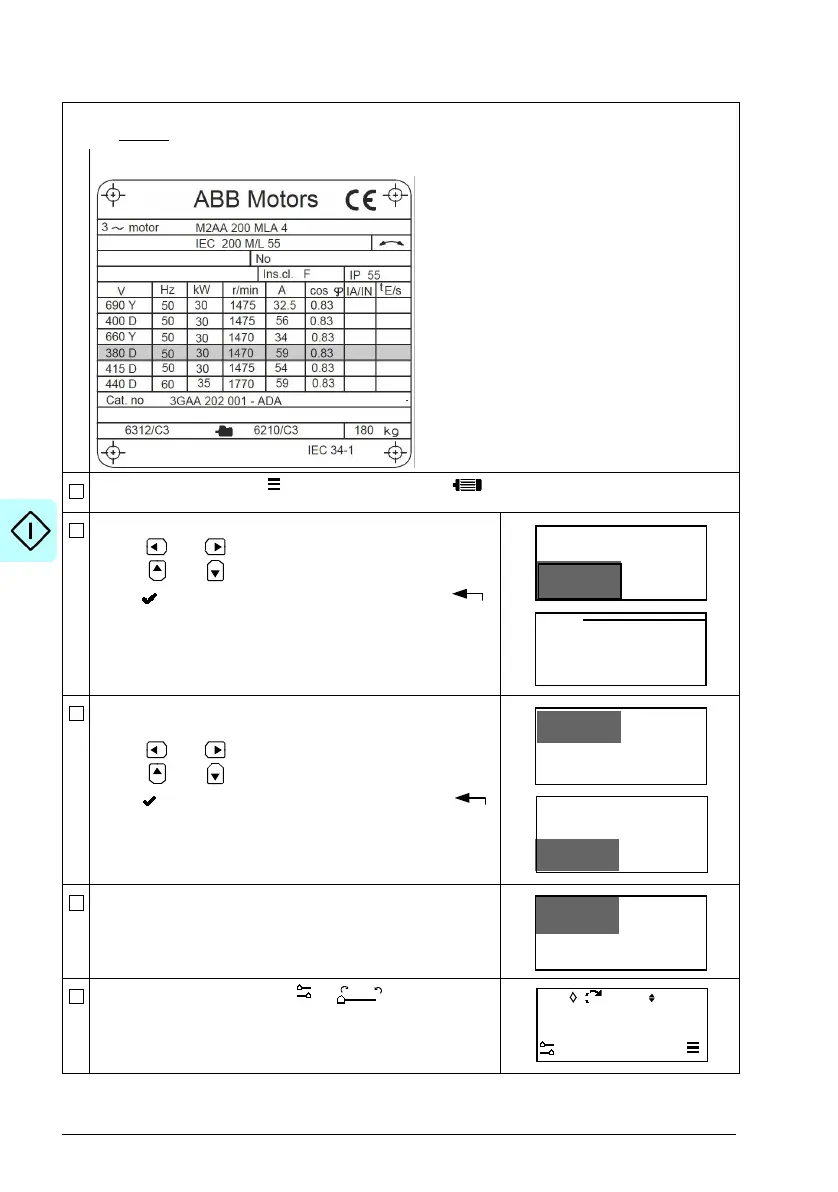

Refer to the motor nameplate for the following nominal value settings of the motor. Enter the
values exactly
as shown on the motor nameplate.
Example of a nameplate of an induction (asynchronous) motor:
Navigate to Main menu and select Motor data .
Set the motor nominal current:
• Use and to move the cursor left and right.
• Use and to change the value.
Press (OK) to accept the new setting, or press
(Back) to go back to the previous view without making
changes.
Set the torque and motor Cos Φ, if needed. Motor
nominal cos Φ and nominal torque are optional.
• Use and to move the cursor left and right.
• Use and to change the value.
Press (OK) to accept the new setting, or press
(Back) to go back to the previous view without making
changes.
Set the desired motor control mode. If Vector motor
control mode is selected, make sure that ID run is
performed. See ID run procedure.
Navigate to Options menu
and set the
direction.
