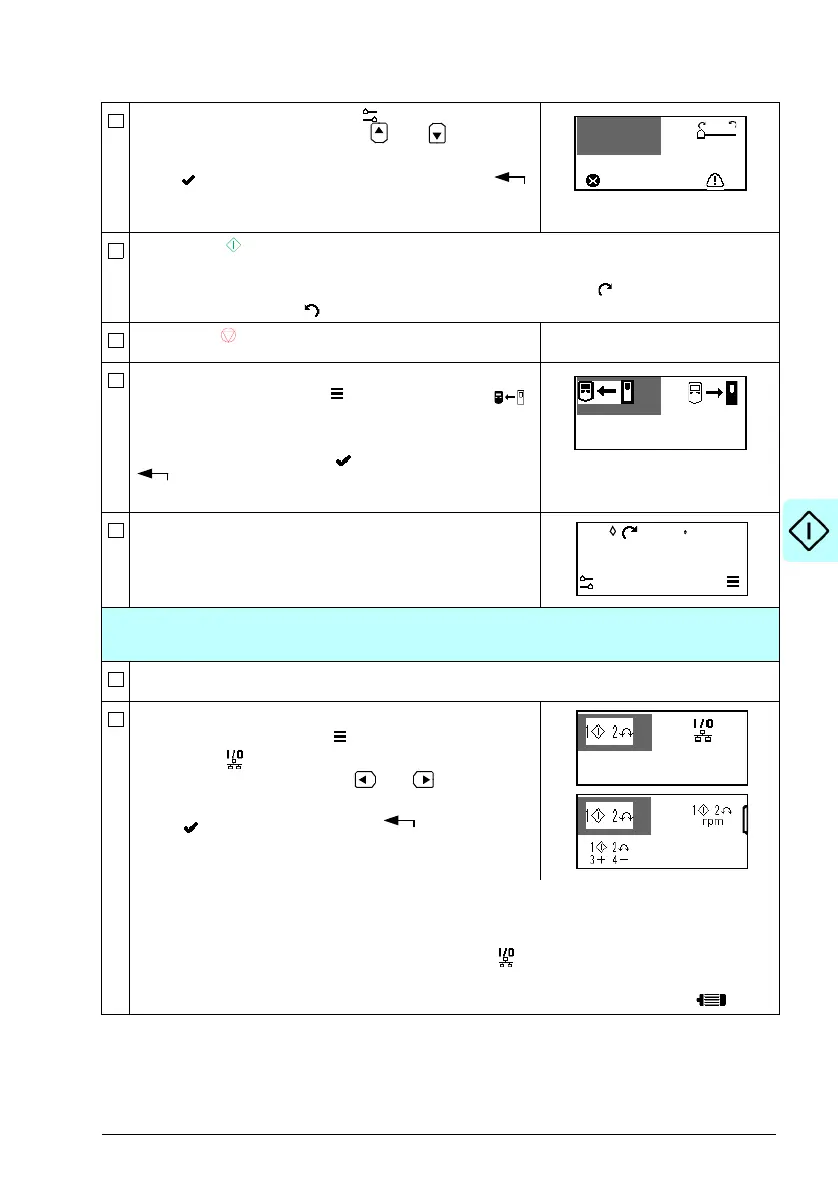

Start-up, control with I/O and ID run 23
Navigate to the Options menu and set the
frequency/speed reference. Use and to change
the value.
Press (OK) to accept the new setting, or press
(Back) to go back to the previous view without making
changes.
Press Start .
Make sure that the motor is running in the required direction. The direction symbol is
displayed in the home page. The forward direction is indicated by and the reverse
direction is indicated by .
Press Stop .
If you want to make a backup of the settings made so
far, navigate to Main menu and select Backup .
You can restore and back up the data between drive and
panel.
Select the option and press (OK) to accept or press
(Back) to go back to the previous view without
making changes.
The first start setup is complete and the drive is ready for
use. The home view displays the values of selected
signals.
2 – Additional settings
Macro/start-stop reference, ramp, and limit settings
You can make any additional changes to the macro, ramp, and limits, if required.
Macro settings
Navigate to the Main menu and select I/O
connection .
Select the desired macro. Use and to move the
cursor left and right.
Press (OK) to accept or press (Back) to go
back to the previous view without making changes.
Notes:
• Changing the macro resets all settings to the default values of the selected macro and
updates the I/O signals used in the drive.
You can see the currently used I/O signals in the menu.
• All macros, except the ABB standard (vector) and Pharma macro, use scalar motor
control by default.You can change the motor control mode in the Motor data .
