254 Parameters
30.18 Torq lim sel Selects a source that switches between two different
predefined minimum torque limit sets.
0 = minimum torque limit defined by 30.19 and maximum
torque limit defined by 30.20 are active
1 = minimum torque limit selected by 30.21 and maximum
torque limit defined by 30.22 are active

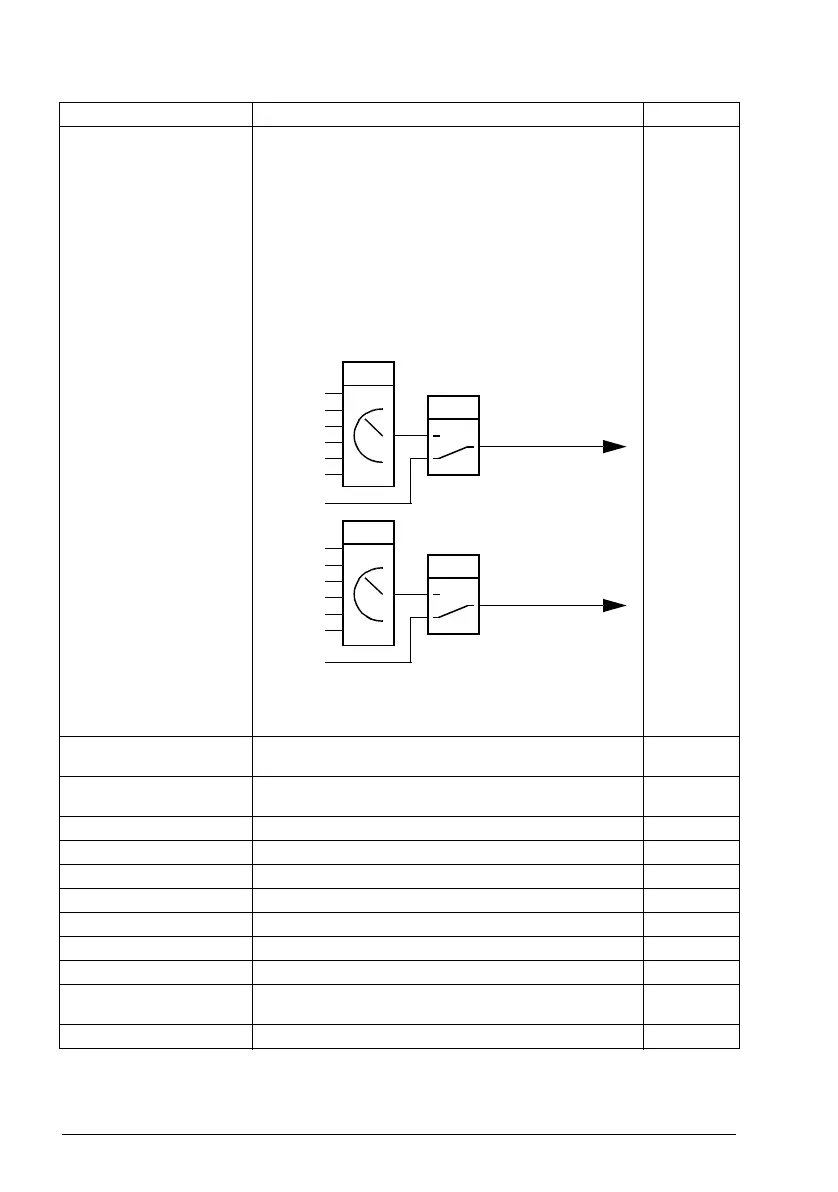

The user can define two sets of torque limits, and switch
between the sets using a binary source such as a digital
input.
The first set of limits is defined by parameters 30.19 and
30.20. The second set has selector parameters for both the
minimum (30.21) and maximum (30.22) limits that allows the
use of a selectable analog source (such as an analog input).
Note: In addition to the user-defined limits, torque may be
limited for other reasons (such as power limitation). See block
diagram Torque limitation on page 496.
Torque limit
set 1
Torque limit set 1 0 (minimum torque limit defined by 30.19 and maximum
torque limit defined by 30.20 are active).
0
Torque limit set 2 1 (minimum torque limit selected by 30.21 and maximum
torque limit defined by 30.22 are active).
1
DI1 Digital input DI1 (10.02 DI delayed status, bit 0). 2
DI2 Digital input DI2 (10.02 DI delayed status, bit 1). 3
DI3 Digital input DI3 (10.02 DI delayed status, bit 2). 4
DI4 Digital input DI4 (10.02 DI delayed status, bit 3). 5
DI5 Digital input DI5 (10.02 DI delayed status, bit 4). 6
DI6 Digital input DI6 (10.02 DI delayed status, bit 5). 7
Reserved 8…10
EFB Only for the DCU profile. DCU control word bit 15 received
through the embedded fieldbus interface.
11
Other [bit] Source selection (see Terms and abbreviations on page 162). -
No. Name/Value Description Def/FbEq16
30.21
User-defined
minimum torque
limit
0
AI1
AI2
PID
30.23
Other
0
AI1
AI2
PID
30.24
Other
30.19
30.22
30.18
0
1
30.20
30.18
0
1
User-defined
maximum torque
limit
