7-D-4 Chapter 7: Gas Analyzer Configuration 42/24-10 EN Rev. 9
Page Overview

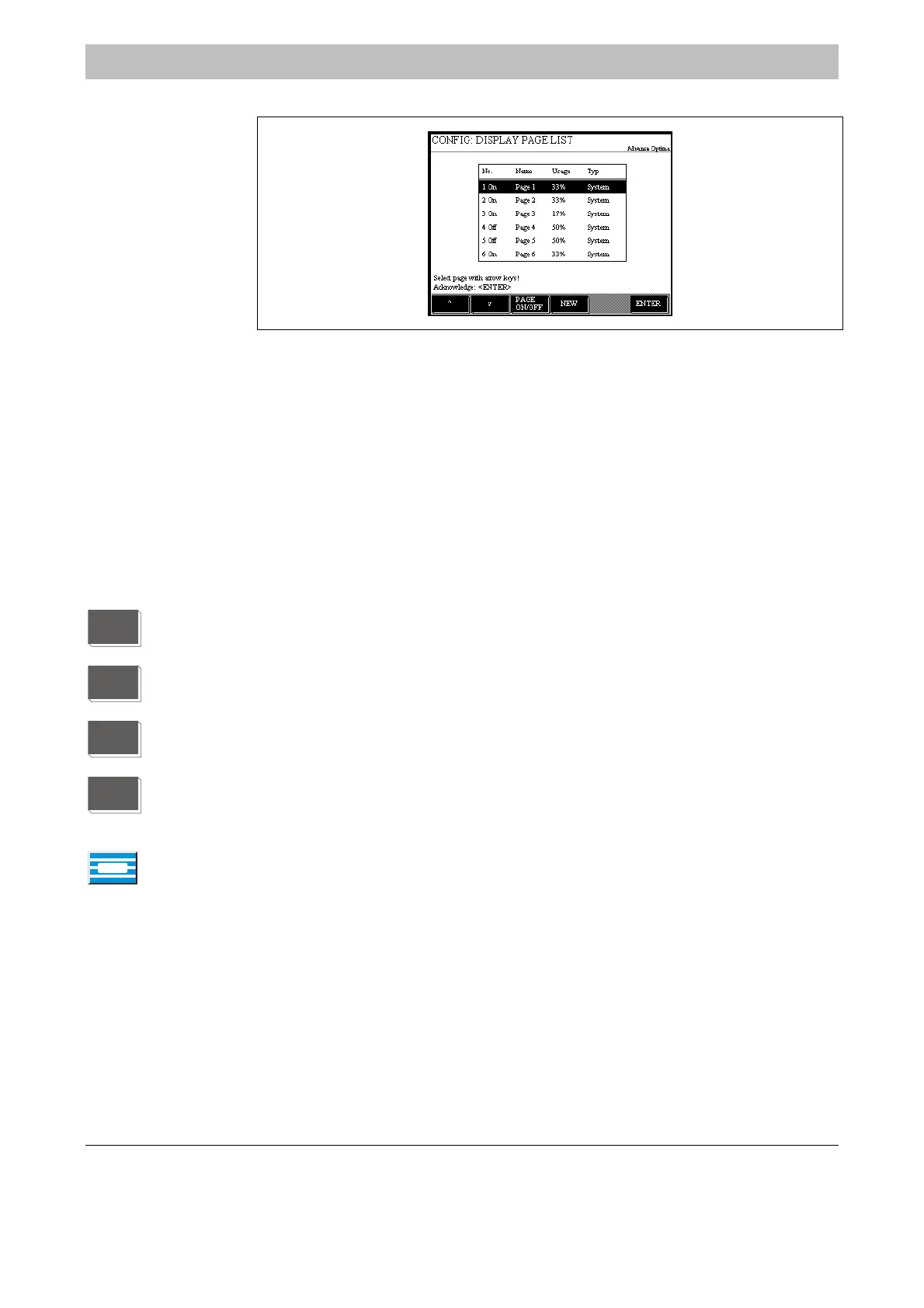

Figure 7-D-3
Page Overview
Explanations The page overview contains the following information:
No. Page number and status (“On” or “Off”)
Name Name of the page
Assignment Page Assignment
Type System: Pages configured by system with standard layout
User: Pages configured by user
Softkeys in the Page
Overview
The page overview softkeys have the following functions:
PAGE
ON/OFF
The PAGE ON/OFF softkey toggles the selected screen page on or off.
NEW
The NEW softkey starts the configuration of a new (user) page (see page 7-D-6).
DELETE
The DELETE softkey deletes the page selected by the user.
Only empty “user” pages can be deleted.
ENTER
The ENTER softkey allows the user to input text to change the name of the
selected page.
Back
The “Back” key returns the user to the display overview (see page 7-D-3).
To Next Page
